10-Wire Electrical Power Transfer | 24VDC / 1A Max | Concealed Door-to-Frame Wiring | Fire Door Listed

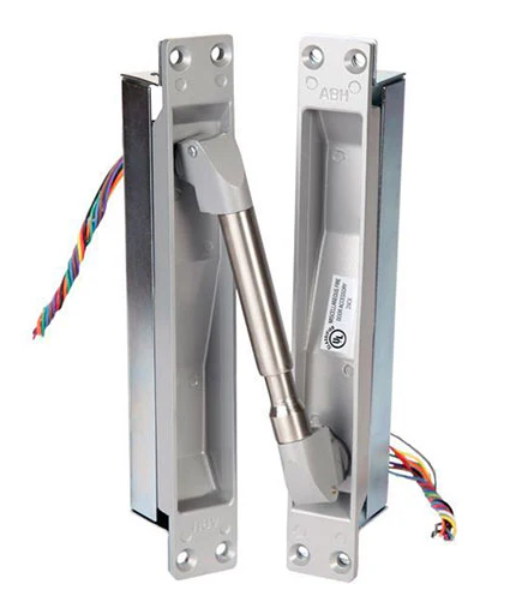

The ABH PT1000 Concealed Power Transfer provides a secure and discreet method of transferring electrical power and control wiring from the door frame into electrified commercial door hardware.

Featuring ten 24 AWG conductors, the PT1000 installs into mortised preparations in the edge of the door and frame and becomes completely concealed when the door is closed.

Built with rugged all-metal construction and no plastic back boxes, the PT1000 is designed for demanding commercial openings, including high-traffic and high-abuse applications.

Available in S5 Dark Bronze or US28 Aluminum finish.

Key Features

• ABH PT1000 Electrical Power Transfer

• (10) 24 AWG wires

• Maximum electrical rating: 24VDC, 1A

• Transfers electrical power and control wiring from frame to door

• Completely concealed when the door is closed

• Mortises into the door and frame edges

• All-metal construction

• Metal back boxes

• No plastic components

• Designed for high-traffic and high-abuse openings

• UL/ULC Listed for use on fire doors

• Compatible with wood or metal doors and frames

• Matches common competitive door and frame preparations

• Ideal for electrified commercial door hardware

• Available in S5 Dark Bronze

• Available in US28 Brushed Aluminum

Available Finishes

S5 Dark Bronze

Powder Coated Dark Bronze – Designed to Match US10B

Provides a dark architectural finish that coordinates well with dark bronze storefront frames and commercial hardware.

US28 Aluminum

Brushed Aluminum / 628

Provides a clean aluminum finish for use with aluminum storefronts, hollow metal openings, and matching commercial hardware.

Concealed Installation

The PT1000 mounts into mortised pockets in both the door edge and frame.

When the door is closed, the entire power-transfer assembly is concealed from view, providing a cleaner appearance and helping protect the wiring from tampering and physical damage.

This makes the PT1000 an excellent solution for electrified openings where exposed door loops or surface-mounted wiring are not desirable.

Electrical Specifications

Number of Conductors: 10
Wire Size: 24 AWG
Maximum Voltage: 24VDC
Maximum Rating: 1A
Function: Power / Control Wire Transfer
Installation: Concealed Mortise

Standard Door Applications

The PT1000 is designed for compatible commercial openings including:

• 1-3/4" to 2" thick doors

• Cam lift hinges with up to 1/2" lift

• Butt hinges up to 5"

• 5-1/2" butt hinges with reduced maximum opening

• 6" butt hinges with reduced maximum opening

• Offset pivots up to 3/4" on compatible 1-3/4" doors

Depending on the hinge or pivot configuration, the PT1000 can accommodate door swings up to 180°.

Typical Applications

The PT1000 can provide concealed wiring for compatible electrified hardware such as:

• Electrified mortise locks

• Electrified cylindrical locks

• Electric latch retraction exit devices

• Electrified panic hardware

• Door position monitoring

• Request-to-exit devices

• Access-control hardware

• Electrified trim

• Security signaling devices

Always verify conductor requirements and electrical load before installation.

Fire Door Applications

The ABH PT1000 is UL/ULC Listed for use on fire doors, making it suitable for properly designed fire-rated electrified openings.

The complete door, frame, locking hardware, power transfer, and installation must comply with the requirements of the approved fire-rated assembly.

Heavy-Duty All-Metal Construction

The PT1000 is designed with all-metal construction, including the back boxes.

The absence of plastic components makes it well suited for:

• High-cycle openings

• High-abuse environments

• Schools

• Hospitals

• Government facilities

• Commercial entrances

• Institutional buildings

Product Specifications

Manufacturer: ABH Manufacturing
Model: PT1000
Product Type: Concealed Electrical Power Transfer
Conductors: (10) 24 AWG
Maximum Rating: 24VDC / 1A
Door Thickness: 1-3/4"–2" Standard Application
Installation: Mortised / Concealed
Construction: All Metal
Fire Door Listed: Yes – UL/ULC
Standard Finishes: US28 Aluminum / S5 Dark Bronze
Application: Commercial / Institutional / Access Control
Approximate Shipping Weight: 3 lbs.

Important Compatibility Note

The standard PT1000 is not intended for every hinge or pivot configuration.

Verify compatibility when using:

• Swing-clear hinges

• Pocket pivots

• Butt hinges larger than 6"

• 1-1/2" offset pivots

• Center-hung doors

ABH offers separate power-transfer configurations for certain specialized applications.

What's Included

(1) ABH PT1000 Concealed Electrical Power Transfer in the selected finish

Standard mounting fasteners are supplied for compatible door and frame construction.

Electrified lock, exit device, power supply, access-control equipment, wiring outside the transfer, and other door hardware are sold separately unless specifically stated otherwise.
