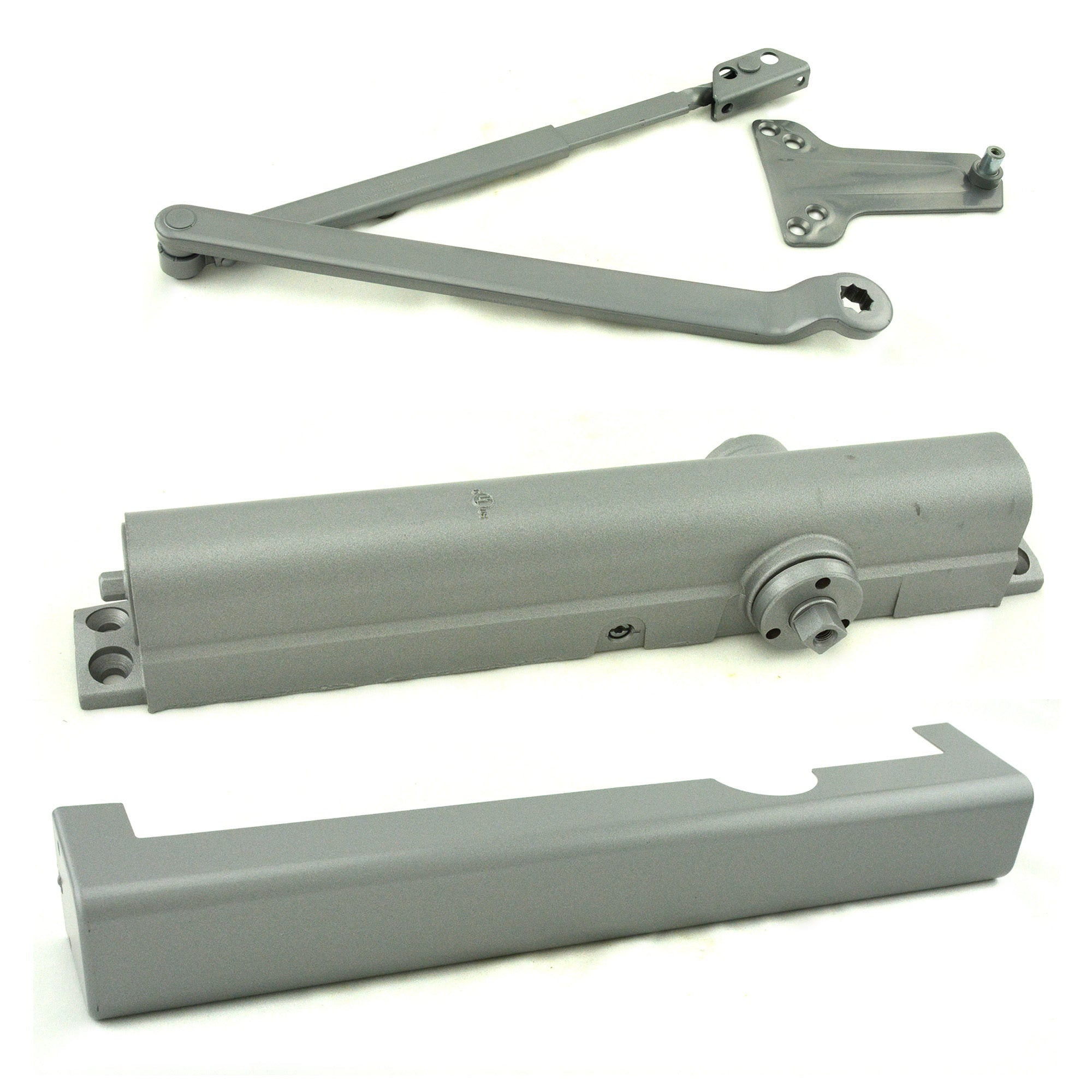

Provide dependable commercial door control with the ACCENTRA 1101BF 689 Barrier-Free Door Closer.

Part of the ACCENTRA 1100 Series, the 1101BF is a Grade 1, non-hold-open surface-mounted door closer with adjustable spring power from Size 1 through Size 4. Its tri-packed design allows installation in regular arm, parallel arm, or top-jamb configurations, making it a versatile choice for commercial hollow metal, wood, and aluminum doors.

Finished in 689 Aluminum Painted, the 1101BF is ideal for schools, healthcare facilities, offices, retail buildings, institutional facilities, and other commercial openings requiring reliable automatic door closing.

Key Features

• Genuine ACCENTRA / ASSA ABLOY

• Model 1101BF

• SKU / Configuration: 1101BF 689

• 1100 Series commercial door closer

• 689 Aluminum Painted Finish

• Adjustable spring power Size 1–4

• Non-Hold-Open

• ANSI/BHMA A156.4 Grade 1

• UL and cUL listed

• UL 10C compliant

• Barrier-free closer design

• Non-handed

• Full rack-and-pinion construction

• Aluminum closer body

• Tri-packed mounting

• Adjustable backcheck

• Adjustable closing speed

• Adjustable latch speed

• Sleeve nuts included for 1-3/4" doors

• 5-year limited manufacturer warranty

• Suitable for right- or left-hand doors

Adjustable Size 1–4

The 1101BF features adjustable spring power covering:

Size 1 through Size 4

This allows the installer to adjust closing force according to the door size, weight, and operating conditions.

Lower spring settings can be used for applicable barrier-free interior openings, while higher settings provide additional closing force where required.

Always adjust the closer according to the door manufacturer's requirements, applicable building codes, and opening conditions.

Non-Hold-Open Function

The 1101BF is a non-hold-open closer.

The closer automatically returns the door toward the closed position after it is opened and does not mechanically hold the door open.

This makes the 1101BF appropriate for many applications where the door must automatically return to the closed and latched position.

For a hold-open version of the 1100 Series, see the compatible 1111BF configuration.

Tri-Packed Mounting

The ACCENTRA 1101BF is supplied for multiple common surface-mounted installation methods.

Regular Arm

Installed on the pull side of the door with the closer body mounted to the door.

Parallel Arm

Installed on the push side with the arm positioned generally parallel with the closed door.

Top Jamb

Installed on the push side with the closer body mounted to the frame.

The tri-packed configuration reduces the need to stock separate closers for each mounting style.

Non-Handed

The 1101BF is:

Non-Handed

It can be installed on compatible:

• Left-hand doors

• Right-hand doors

• Left-hand reverse doors

• Right-hand reverse doors

according to the required mounting configuration.

Adjustable Closing Speed

A field-adjustable valve controls the primary closing speed of the door.

This allows the installer to regulate how quickly the door travels through the main portion of the closing cycle.

Adjustable Latch Speed

A separate latch-speed adjustment controls the final portion of the closing cycle.

Proper adjustment helps provide enough closing force for the door to:

• Reach the frame

• Engage the latch

• Fully close the opening

without excessive slamming.

Adjustable Backcheck

The 1101BF includes an adjustable:

Backcheck Valve

Backcheck provides increased resistance as the door approaches the fully open position.

This helps reduce the force of an aggressively opened door and can help protect:

• Door

• Frame

• Closer

• Hinges

• Adjacent walls

Important

Backcheck is not a substitute for a mechanical door stop.

An auxiliary door stop is required where needed to prevent excessive door travel.

Full Rack-and-Pinion Design

The 1101BF uses a conventional:

Full Rack-and-Pinion Mechanism

This proven commercial closer design provides smooth, controlled operation and dependable closing performance.

Commercial Grade Construction

Closer Body

Aluminum

Mechanism

Rack and Pinion

Finish

689 – Aluminum Painted

The closer is designed for commercial applications requiring durable surface-mounted door control.

Barrier-Free Applications

The 1101BF adjustable Size 1–4 closer is designed to support barrier-free applications when properly adjusted and used on suitable doors.

It is particularly useful for:

• Light- to medium-weight interior doors

• Accessible commercial openings

• Office doors

• Healthcare facilities

• Institutional interiors

Actual opening force must be adjusted and verified in the field according to applicable accessibility requirements.

Fire Door Applications

The 1101BF is:

• UL listed

• cUL listed

• UL 10C compliant

This makes it suitable for use on properly configured fire-rated openings when installed in accordance with the complete listed door assembly and applicable fire-door requirements.

Door Applications

Suitable for compatible:

• Hollow metal doors

• Wood doors

• Aluminum doors

• Commercial interior doors

• Commercial entrance doors

• Institutional openings

Common Applications

Ideal for:

• Schools

• Hospitals

• Healthcare facilities

• Office buildings

• Retail stores

• Government buildings

• Institutional facilities

• Commercial buildings

• Interior corridors

• Employee entrances

• Barrier-free openings

Product Specifications

Brand: ACCENTRA
Manufacturer: ASSA ABLOY
Series: 1100
Model: 1101BF
SKU: 1101BF 689
Product Type: Surface-Mounted Commercial Door Closer
Function: Non-Hold-Open
Spring Power: Adjustable Size 1–4
Grade: ANSI/BHMA A156.4 Grade 1
Handing: Non-Handed
Mounting: Regular / Parallel Arm / Top Jamb
Body Material: Aluminum
Mechanism: Full Rack & Pinion
Backcheck: Adjustable
Closing Speed: Adjustable
Latch Speed: Adjustable
Finish: 689 Aluminum Painted
UL Listed: Yes
cUL Listed: Yes
UL 10C: Yes
Barrier-Free: Yes, for applicable properly adjusted openings
Warranty: 5-Year Limited Warranty
Approximate Shipping Weight: 6 lbs.

What's Included

Standard 1101BF 689 package includes:

• ACCENTRA 1101BF closer body

• Standard arm assembly

• Tri-pack mounting hardware

• Sleeve nuts for applicable 1-3/4" door installation

• Installation hardware

Not Included Unless Specifically Stated

• Decorative closer cover

• Auxiliary door stop

• Hold-open arm

• Door

• Frame

• Installation labor

Cover Note

The standard 1101BF is available without a cover.

If a closer cover is required, specify the appropriate 1101BFCOV configuration.

Important Ordering Information

Before ordering, verify:

• Model 1101BF

• Adjustable Size 1–4 requirement

• Non-hold-open function

• Door size and weight

• Door material

• Mounting configuration

• Required finish

• Fire-rating requirements

• Accessibility requirements

• Whether a cover is required

• Door-stop requirements
