Commercial Video Intercom | Color Camera | Hands-Free Communication | IP54 Weather Resistant | IK08 Impact Resistant

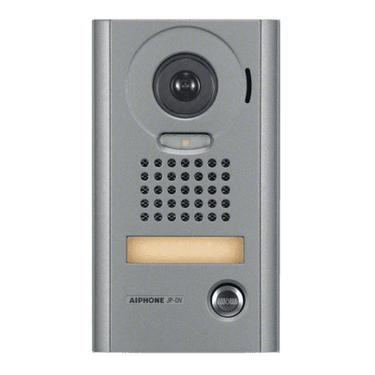

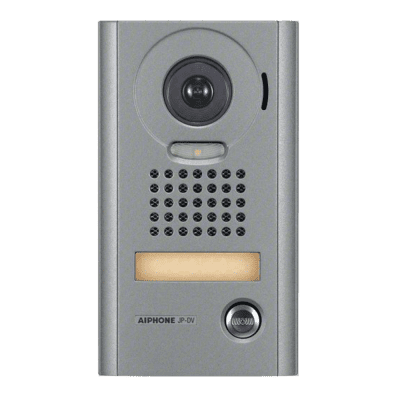

The Aiphone JO-DV Video Door Station is a professional-grade, surface-mounted video intercom designed for secure entrance communication and visitor identification in commercial buildings, offices, residential properties, and institutional facilities.

Featuring a built-in 1/4-inch CMOS color camera, single call button, integrated microphone and speaker, and heavy-duty zinc die-cast faceplate, the JO-DV provides reliable video and two-way audio communication with compatible Aiphone JO Series master stations.

Engineered for demanding entrance applications, the JO-DV features IP54 weather-resistant and IK08 impact-resistant ratings, offering dependable protection against environmental exposure and vandalism.

The station also includes automatic white LED illumination for low-light viewing and an illuminated nameplate for convenient visitor identification.

Designed for integration with compatible Aiphone JO Series Video Intercom Systems, the JO-DV uses a simple two-wire connection and receives its operating power from the connected master or expansion monitor.

Key Features

• Integrated Color Video Camera: Built-in 1/4" CMOS camera provides clear visitor identification at building entrances.

• Single Call Button: Allows visitors to initiate communication with a compatible indoor answering station.

• Hands-Free Two-Way Audio: Integrated microphone and speaker provide convenient open-voice communication.

• Heavy-Duty Zinc Die-Cast Faceplate: Provides enhanced durability and protection against physical damage.

• IK08 Vandal Resistance: Impact-resistant construction is ideal for demanding commercial entrance applications.

• IP54 Weather Protection: Helps protect the station against dust and water exposure.

• Automatic White LED Illumination: Activates in low-light conditions during monitoring or communication.

• Illuminated Nameplate: Backlit nameplate improves visibility and entrance identification.

• Surface-Mount Installation: Installs directly onto a suitable wall or standard single-gang electrical box.

• Compact Commercial Design: Durable silver-colored faceplate provides a clean, professional appearance.

• Two-Wire Connection: Simplifies installation using compatible low-capacitance intercom cable.

• Master Station Powered: Receives power directly from the connected compatible monitor.

• Entrance Monitoring: Allows users to view visitors through a compatible indoor video monitor.

• Remote Door Release Support: Works with compatible master stations and electric locking hardware to provide controlled entrance access.

• JO Series Compatibility: Designed for use with compatible Aiphone JO Series video intercom systems.

• GT Series Integration: Also supported with the compatible Aiphone GT-MKB-N video guard station.

• Replacement Door Station: Suitable for repairing or expanding compatible existing video intercom installations.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JO-DV

• Product Type: Video Door Intercom Station

• Series: JO Series

• Finish: Solid Silver

• Faceplate Material: Zinc Die-Cast

• Main Housing Material: Flame-Resistant PC + ABS Resin

• Call Buttons: 1

• Communication: Hands-Free Two-Way Audio

• Camera: 1/4" Color CMOS

• Camera View Area: Approximately 2'1" Vertical x 3'1" Horizontal at 20"

• Minimum Camera Illumination: Approximately 5 Lux

• Night Illumination: Automatic White LED

• Nameplate: LED Backlit

• Speaker Volume: 72.1 dB

• Power Source: Supplied by Compatible Master or Expansion Monitor

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Maximum Wiring Distance, 22 AWG: 165 Feet

• Maximum Wiring Distance, 18 AWG: 330 Feet

• Ingress Protection: IP54

• Impact Protection: IK08

• Operating Temperature: -4°F to 140°F (-20°C to 60°C), per manufacturer technical specification

• Dimensions: 6-13/16" H x 3-7/8" W x 1-1/16" D

• Dimensions (Metric): 173mm H x 98mm W x 27mm D

• Weight: Approximately 1.43 lbs. (650g)

• Mounting Type: Surface Wall Mount

• Electrical Box: Standard Single-Gang

• Installation: Indoor / Outdoor

• Compatible Systems: Aiphone JO Series and compatible GT-MKB-N Applications

Recommended Applications

• Commercial Office Buildings

• Small Businesses and Retail Facilities

• Residential Properties

• Apartment and Condominium Entrances

• Professional Office Suites

• Hospitals and Medical Offices

• Schools and Educational Facilities

• Government and Municipal Buildings

• Property Management Facilities

• Secured Employee Entrances

• Reception and Security Entrances

• Industrial and Manufacturing Facilities

• Warehouse and Distribution Facilities

• Visitor Management Systems

• Commercial Access Control Systems

• Existing Aiphone JO Series Replacements

Video Monitoring & Communication Functions

1. Visitor Video Identification

The built-in 1/4-inch CMOS color camera allows occupants or security personnel to view visitors through a compatible Aiphone video master station.

2. Hands-Free Two-Way Communication

When a visitor presses the call button, the JO-DV initiates communication with the connected master station, allowing users to speak with visitors through the integrated microphone and speaker.

3. Automatic Night Illumination

The integrated white LED automatically activates in low-light conditions during monitoring and communication to help improve camera visibility.

4. Remote Door Release

When connected to a compatible master station and properly installed electric locking hardware, authorized users can release the entrance door directly from the indoor monitor.

5. Smartphone Connectivity with Compatible Master Station

When paired with the Aiphone JO-1MDW Wi-Fi Video Master Station, the JO-DV can be used in a system that supports remote visitor calls, video monitoring, and door-release operation through the Aiphone Intercom App Type B.

Note: The JO-DV itself does not contain Wi-Fi connectivity. Mobile application functions require the compatible JO-1MDW master station and proper system configuration.

Installation & Compatibility

The Aiphone JO-DV is designed for integration with compatible Aiphone JO Series Video Intercom Systems.

The door station connects to a compatible master or expansion monitor using specified two-conductor intercom wiring and receives its power from the connected monitor.

Its compact surface-mount design allows installation directly onto a suitable wall or standard single-gang electrical box.

Compatible Equipment

• JO-1MDW: Wi-Fi-enabled 7" touchscreen master station

• JO-1MD: JO Series video master station

• JO-1FD: Secondary video expansion station

• JOS-1VW: Complete Wi-Fi video intercom kit containing the JO-DV

• JOW-2D: Two-door station adaptor for compatible JO Series configurations

• GT-MKB-N: Compatible GT Series video guard station

• PS-1820UL: Power supply for compatible JO Series systems

Important Installation Information

• This listing is for the JO-DV video door station only.

• A compatible Aiphone master station is required for normal communication.

• The JO-DV is a traditional two-wire video door station, not a standalone IP or PoE device.

• The camera is integrated into the door station and does not require a separate camera module.

• Remote door release requires a compatible master station, electric locking hardware, and appropriate lock power.

• Smartphone connectivity requires a compatible JO-1MDW master station with Wi-Fi configured.

• For outdoor applications, install according to the manufacturer's weather-protection instructions.

• Do not obstruct drainage openings when sealing the station.

• Master stations, electric locking hardware, system power supplies, and additional accessories are sold separately.

Why Choose the Aiphone JO-DV?

The Aiphone JO-DV combines durable vandal-resistant construction, color video monitoring, and dependable hands-free communication in one compact commercial entrance station.

Its zinc die-cast faceplate, IP54 weather protection, IK08 impact resistance, illuminated nameplate, and automatic white LED illumination make it ideal for commercial and residential entrances where durability and visitor identification are essential.

With its simple two-wire installation, compatibility with Aiphone JO Series systems, and convenient surface-mount design, the JO-DV provides a reliable solution for new compatible intercom installations or replacement of existing entrance stations.
