Complete Commercial Video Intercom System | Hands-Free & Handset Communication | Visitor Picture Memory | Digital PanTilt & Zoom | Remote Door Release

The Aiphone JPS-4AED Video Intercom Kit is a complete, professional-grade entrance communication system designed for commercial offices, schools, healthcare facilities, residential properties, and secured building entrances requiring dependable visitor identification and access control.

Featuring a 7-inch color touchscreen master station, surface-mounted video door station, and 24V DC power supply, the JPS-4AED allows users to see and speak with visitors, monitor entrances, and remotely release compatible electric door locks.

The included JP-DA video door station features a built-in 1/2.9-inch CMOS color camera with approximately 170° horizontal and 100° vertical viewing coverage, providing an expanded view of visitors and surrounding entrance areas.

The JP-4MED master station offers hands-free and privacy handset communication, digital PanTilt and Zoom, selective door release, room-to-room calling, and built-in visitor picture memory.

Designed for flexible expansion, the JP Series supports up to four video door stations and eight indoor answering stations total, making the JPS-4AED an excellent solution for commercial properties requiring communication and entrance monitoring at multiple locations.

With its simple two-wire door station connection, weather-resistant plastic door station housing, and included 24V DC power supply, the JPS-4AED provides reliable video entrance communication in one complete boxed system.

Key Features

• Complete Video Intercom Kit: Includes JP-DA video door station, JP-4MED touchscreen master station, and PS-2420UL power supply.

• 7-Inch Color Touchscreen: Large TFT LCD provides convenient visitor identification, video monitoring, and system operation.

• 170° Wide-Angle Camera: Provides approximately 170° horizontal and 100° vertical viewing coverage.

• Digital PanTilt & Zoom: Allows users to electronically adjust the camera image from the master station.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide convenient open-voice communication.

• Privacy Handset: Integrated handset supports private, simultaneous two-way communication.

• Hearing Aid T-Mode Compatibility: Supports users with compatible hearing aids.

• Remote Door Release: Allows authorized personnel to unlock compatible electric locking hardware.

• Selective Door Release: Supports control of designated entrances in properly configured multi-door systems.

• Built-In Visitor Picture Memory: Stores up to 20 visitor call records with six images per call.

• Expandable Picture Storage: Optional SD/SDHC card supports up to 1,000 visitor call records with 40 images per call.

• Automatic LED Illumination: Door station activates its white LED in low-light conditions.

• Surface-Mount Door Station: Compact JP-DA housing installs directly onto a wall or standard single-gang electrical box.

• Weather-Resistant Construction: Durable ABS plastic door station is designed for properly installed exterior entrance applications.

• Entrance Video Monitoring: Allows users to view connected door stations without receiving an incoming call.

• Room-to-Room Communication: Supports communication between compatible indoor JP Series answering stations.

• All-Call Paging: Enables announcements to connected indoor stations.

• Station Partitioning: Allows system configuration to control which answering stations communicate with designated entrances.

• Expandable System: Supports up to four door stations and eight indoor answering stations total.

• Simple Two-Wire Installation: Uses compatible two-conductor cable between door station and master station.

• 24V DC Power Supply Included: Provides the required operating power for the video intercom system.

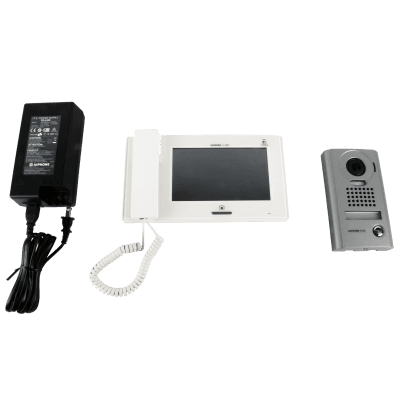

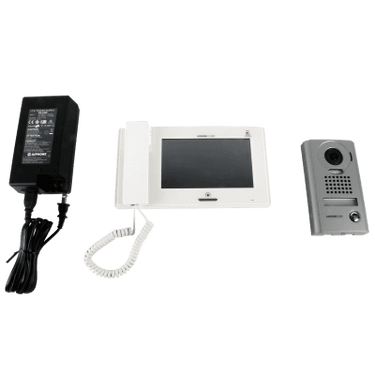

Included Components

1. Aiphone JP-DA Video Door Station

• Durable ABS plastic housing

• Surface-mount installation

• Built-in 1/2.9" CMOS color camera

• Approximately 170° horizontal viewing angle

• Approximately 100° vertical viewing angle

• Digital PanTilt and Zoom through compatible master station

• Integrated microphone and speaker

• Hands-free two-way audio

• Single call button

• Automatic white LED illumination

• Weather-resistant construction

• Two-conductor wiring connection

• Standard single-gang mounting compatibility

2. Aiphone JP-4MED Video Master Station

• 7" TFT color touchscreen

• 800 x 480 display resolution

• Built-in privacy handset

• Hands-free and handset communication

• Hearing aid T-Mode compatibility

• Digital PanTilt and Zoom controls

• Selective remote door release

• Built-in visitor picture memory

• Optional SD/SDHC storage expansion

• Room-to-room calling

• All-Call paging

• Entrance video monitoring

• Three security/alarm inputs

• Indoor wall-mount installation

3. Aiphone PS-2420UL Power Supply

• Input: 100–240V AC, 50/60Hz

• Output: 24V DC

• Output Current: 2A

• UL-listed power supply

• Provides operating power for compatible JP Series equipment

Product Specifications

General Specifications

• Manufacturer: Aiphone

• Model / SKU: JPS-4AED

• Product Type: Complete Video Intercom Kit

• Series: JP Series

• Door Station Included: JP-DA

• Master Station Included: JP-4MED

• Power Supply Included: PS-2420UL

• Communication: Hands-Free / Privacy Handset

• Display: 7" TFT Color Touchscreen

• Camera: 1/2.9" CMOS Color

• Camera Viewing Angle: Approximately 170° Horizontal x 100° Vertical

• Camera Functions: Digital PanTilt & Zoom

• System Power: 24V DC

• Door Station Wiring: 2-Conductor

• Maximum Door Stations: 4

• Maximum Indoor Answering Stations: 8 Total

• System Type: Hardwired Video Intercom

JP-4MED Master Station

• Display: 7" TFT Color LCD Touchscreen

• Display Resolution: 800 x 480

• Communication: Hands-Free VOX / Handset Full-Duplex

• Handset: Built-In Privacy Handset

• Hearing Aid Compatibility: T-Mode

• Internal Picture Memory: Up to 20 Calls

• Images Per Stored Call: 6

• Protected Internal Records: Up to 5 Calls

• Expandable Memory: SD / SDHC Card

• Maximum Expanded Memory: 1,000 Calls

• Images Per Call with SD/SDHC: Up to 40

• Protected Expanded Records: Up to 100 Calls

• Door Release: Normally Open Dry Contact

• Door Release Contact Rating: 24V AC/DC, 500mA

• Power Requirements: 24V DC

• Maximum Current Consumption: 340mA

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 5-11/16" H x 10-1/16" W x 1-7/8" D

• Mounting Type: Indoor Wall Mount

• Optional Desktop Stand: MCW-S/B

JP-DA Video Door Station

• Housing Material: ABS Plastic

• Mounting Type: Surface Mount

• Camera: 1/2.9" Color CMOS

• Horizontal Viewing Angle: Approximately 170°

• Vertical Viewing Angle: Approximately 100°

• Camera Adjustment: Digital PanTilt & Zoom from Master Station

• Communication: Hands-Free Two-Way Audio

• Call Buttons: 1

• Low-Light Illumination: Built-In Automatic White LED

• Weather Protection: Weather Resistant

• Power Source: Supplied by Compatible Master Station

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Maximum Door Wiring Distance, 22 AWG: 165 Feet

• Conservative Door Wiring Distance, 18 AWG: 300 Feet

• Mounting: Direct Wall Mount / Standard Single-Gang Box

• Dimensions: 5-1/16" H x 3-13/16" W x 1-3/16" D

• Installation Environment: Indoor / Outdoor

Recommended Applications

• Commercial Office Buildings

• Small Businesses and Retail Facilities

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Municipal Buildings

• Residential Properties

• Apartment and Condominium Entrances

• Professional Office Suites

• Industrial and Manufacturing Facilities

• Warehouse and Distribution Centers

• Secured Employee Entrances

• Reception and Security Desks

• Corporate Office Campuses

• Property Management Facilities

• Multi-Entrance Commercial Buildings

• Visitor Management Systems

• Commercial Access Control Installations

Video Monitoring & Communication Functions

1. Wide-Angle Visitor Identification

The JP-DA door station features a color CMOS camera with approximately 170° horizontal viewing coverage, helping users identify visitors and monitor activity around the entrance.

2. Digital PanTilt & Zoom

The JP-4MED touchscreen allows users to digitally pan, tilt, and zoom the camera image.

This helps personnel focus on visitor faces, identification badges, and specific areas surrounding the entrance.

Note: PanTilt and Zoom are digital image functions. The camera does not physically move.

3. Hands-Free & Privacy Handset Communication

The JP-4MED supports hands-free communication through its integrated microphone and speaker.

For private conversations, users can lift the built-in handset to communicate with visitors in full-duplex mode.

4. Remote Door Release

When connected to compatible electric locking hardware, the system allows authorized users to release the entrance door directly from the JP-4MED master station.

5. Visitor Picture Memory

The JP-4MED automatically captures visitor images and stores up to 20 call records in internal memory.

Each record can contain six captured images.

With an optional SD/SDHC memory card, storage expands to up to 1,000 call records with 40 images per call.

Picture memory stores captured images rather than continuous video recordings.

6. Automatic Low-Light Illumination

The JP-DA door station features an integrated white LED that automatically activates when additional illumination is required.

This helps improve visitor visibility in low-light entrance applications.

7. Room-to-Room Communication

When expanded with compatible JP-4HD video sub master stations, the system supports calls between indoor answering locations.

Users can selectively communicate with designated stations or utilize supported All-Call paging functions.

8. Multiple Entrance Expansion

The JP Series supports up to four compatible video door stations and eight indoor answering stations total.

This allows the JPS-4AED to serve as the foundation for larger commercial or residential entrance communication systems.

Installation & Compatibility

The Aiphone JPS-4AED is a complete JP Series hardwired video intercom system.

The JP-DA door station connects directly to the JP-4MED master station using compatible two-conductor intercom wiring.

The master station receives power from the included PS-2420UL 24V DC power supply.

Installation Requirements

• Door Station: JP-DA surface-mounted video entrance station

• Master Station: JP-4MED indoor 7" touchscreen monitor

• Power Supply: Included PS-2420UL

• Door Station Wiring: Two-conductor, low-capacitance cable

• Indoor Expansion Wiring: Cat-5e or Cat-6 for compatible JP Series expansion stations

• Door Release: Compatible electric locking hardware and required lock power supply

Optional System Expansion

• JP-4HD: Additional indoor video answering station

• JP-8Z: Video distribution adaptor

• JP-DA: Additional standard surface-mount video door station

• JP-DV: Vandal-resistant metal surface-mount video door station

• JP-DVF: Stainless steel flush-mount video door station

• JPW-BA: Long-distance / CCTV camera adaptor

• RY-3DL: Selective multi-door release adaptor

• MCW-S/B: Optional desktop stand for compatible indoor stations

Important Installation Information

• This listing includes the complete JPS-4AED boxed kit, consisting of JP-DA, JP-4MED, and PS-2420UL.

• The system uses traditional hardwired intercom connections and does not provide built-in Wi-Fi or smartphone app connectivity.

• The JP-DA is not a standalone IP or PoE video door station.

• The JP-DA has a plastic housing and should not be confused with the vandal-resistant metal JP-DV or stainless steel JP-DVF.

• The JP-4MED master station must be installed indoors.

• Digital PanTilt and Zoom adjusts the displayed camera image electronically; the camera is not motorized.

• Electric locking hardware and its operating power supply are sold separately.

• An SD/SDHC memory card is optional and not included.

• Additional door stations, expansion monitors, distribution adaptors, and mounting accessories are sold separately.

• Outdoor door station installations must follow Aiphone's mounting and weather-protection requirements.

• Maximum cable distances vary by wire gauge and system configuration.

Why Choose the Aiphone JPS-4AED?

The Aiphone JPS-4AED combines reliable video entrance communication, wide-angle visitor identification, and convenient touchscreen operation in one complete intercom package.

Its 7-inch touchscreen, 170° camera, digital PanTilt and Zoom, visitor picture memory, hands-free and handset communication, and remote door-release capabilities make it an excellent choice for commercial offices, schools, residential buildings, and secured facilities.

With its simple two-wire installation, weather-resistant JP-DA surface-mount door station, expandable JP Series architecture, and included 24V DC power supply, the JPS-4AED provides dependable entrance security and convenient visitor communication.
