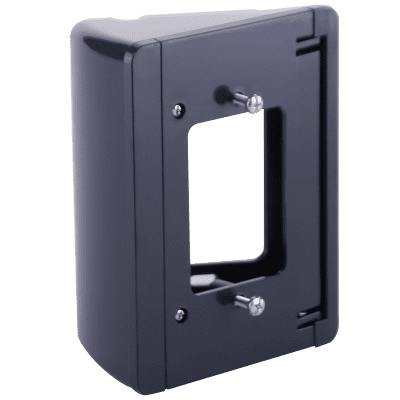

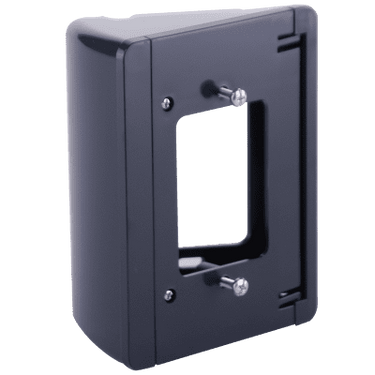

Improve the viewing and communication angle of a compatible Aiphone door station with the Aiphone KAW-D 30° Angle Box.

Designed for compatible 1-gang surface-mount Aiphone door stations, the KAW-D angles the station outward by approximately 30 degrees, making it especially useful when the door station is mounted beside a wide entrance or in a location where visitors may stand outside the normal camera or communication area.

The KAW-D can be installed on either the left or right side of the doorway and features a hinged cover that simplifies door-station mounting and wiring access.

Key Features

• Genuine Aiphone KAW-D

• 30° angle mounting box

• Designed for compatible 1-gang surface-mount door stations

• Angles the door station outward for improved positioning

• Helps improve camera viewing angle on compatible video stations

• Can mount on the left or right side of the door

• Hinged cover simplifies installation

• Durable ABS plastic construction

• Surface mounts directly to wall

• Can mount over a standard 1-gang electrical box

• Ideal for wide or offset entrances

• Commercial and residential intercom accessory

Product Specifications

Manufacturer: Aiphone
Model: KAW-D
Product Type: 30° Angle Box
Angle: 30 Degrees
Material: ABS Plastic
Mounting: Surface Mount
Electrical Box Compatibility: 1-Gang
Height: 5-9/16"
Width: 4-1/8"
Depth: 2-3/8"
Application: Aiphone Door Station Mounting

Improved Door Station Positioning

When a door station is mounted flat beside an entrance, the visitor may stand outside the ideal camera or communication area.

The KAW-D positions the station outward at a 30° angle, helping direct the station toward the person standing at the entrance.

This is especially useful for:

• Wide commercial entrances

• Offset door-station locations

• Storefront entrances

• Residential entrances

• Reception doors

• Door stations mounted beside wider frames

Left- or Right-Hand Installation

The KAW-D can be installed on either side of the doorway.

This provides flexibility when positioning the door station based on the entrance layout and desired viewing direction.

Compatible Aiphone Door Stations

The KAW-D is compatible with select Aiphone 1-gang surface-mount door stations including:

• JO-DA

• JP-DA

• IF-DA

• KB-DAR

• KB-DAR-M

Compatibility varies by Aiphone system generation. Verify the existing door-station model before ordering.

Hinged Installation Design

The KAW-D incorporates a hinged cover that makes installation and wiring easier.

The enclosure mounts to the wall or 1-gang electrical box, and the compatible door station attaches to the angled front section.

Ideal Applications

• Office buildings

• Retail entrances

• Aluminum storefronts

• Residential entry systems

• Schools and universities

• Healthcare facilities

• Government buildings

• Apartment entrances

• Video intercom systems

• Audio intercom systems

• Wide or offset doorway installations

What's Included

• Aiphone KAW-D 30° Angle Box

• Required mounting hardware

Important Ordering Information

This listing is for the KAW-D angle box only.

Door station, intercom master station, power supply, wiring, and other system components are sold separately unless specifically stated.

Verify compatibility with your specific Aiphone door station before ordering.
