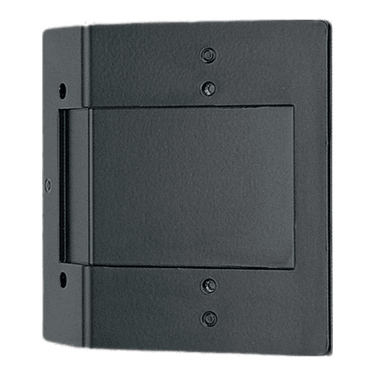

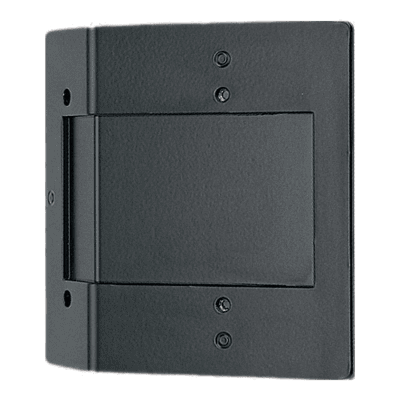

Improve door-station positioning on aluminum storefront and mullion-style entrances with the Aiphone KMB-45 45° Mullion Mounting Bracket.

Designed for compatible Aiphone 1-gang surface-mount audio and video door stations, the KMB-45 mounts directly to the side of a door mullion and positions the station outward at a 45-degree angle.

This angled installation helps improve camera viewing and visitor positioning when the door station cannot be mounted directly in front of the entrance.

Key Features

• Genuine Aiphone KMB-45

• 45° mullion mounting bracket

• Designed for compatible Aiphone 1-gang door stations

• Ideal for aluminum storefront and mullion-style frames

• Positions door station outward at a 45° angle

• Helps improve video camera viewing angle

• Can mount on either the left or right side of the door

• Durable aluminum construction

• Surface mounts directly to the side of the mullion

• Conceals door-station wiring through the mullion

• Suitable for audio and video door stations

• Commercial and residential intercom accessory

Product Specifications

Manufacturer: Aiphone
Model: KMB-45
Product Type: Mullion Mounting Bracket
Mounting Angle: 45 Degrees
Material: Aluminum
Mounting: Surface Mount to Side of Mullion
Height: 5-1/2"
Width: 5-1/2"
Depth: 1-3/4"
Application: Aiphone 1-Gang Surface-Mount Door Stations

Designed for Mullion Applications

The KMB-45 is ideal for entrances where the intercom door station needs to be installed directly on an aluminum storefront mullion or narrow door frame.

Wiring can be routed through the mullion and into the rear of the bracket, allowing the installation to maintain a clean professional appearance.

45° Viewing Angle

Mounting a video door station flat against a narrow mullion can position the camera away from the visitor.

The KMB-45 turns the station outward by 45 degrees, helping direct the camera and communication area toward the person standing at the entrance.

This is especially useful for:

• Aluminum storefront doors

• Wide entrances

• Double-door openings

• Offset visitor positions

• Narrow mullions

• Reception entrances

Left- or Right-Hand Installation

The KMB-45 can be mounted on either side of the doorway.

This allows the installer to orient the door station toward the visitor regardless of whether the station is positioned on the left or right mullion.

Compatible Aiphone Door Stations

Compatible models include select Aiphone 1-gang surface-mount stations such as:

• C-D

• GT-D

• IF-DA

• JO-DA

• JP-DA

• KB-DAR

• KB-DAR-M

• LE-D

Legacy Aiphone documentation also lists compatibility with select:

• JF-DA

• JK-DA

Always verify the exact door-station model before ordering.

Installation

Typical installation includes:

1. Route the intercom wiring through the door mullion.

2. Bring the wiring through the rear of the KMB-45.

3. Mount the KMB-45 directly to the mullion.

4. Attach the compatible door-station mounting frame to the bracket.

5. Connect wiring to the door station.

6. Secure the station to the bracket.

Mullion mounting screws are not supplied by Aiphone.

Door-station mounting screws are normally supplied with the compatible door station.

Ideal Applications

• Aluminum storefront entrances

• Office buildings

• Retail stores

• Schools and universities

• Healthcare facilities

• Government buildings

• Apartment entrances

• Commercial glass entrances

• Video intercom systems

• Audio intercom systems

• Narrow-mullion installations

What's Included

• Aiphone KMB-45 45° Mullion Mounting Bracket

• Installation instructions

Important Ordering Information

This listing is for the KMB-45 mounting bracket only.

The Aiphone door station, intercom master station, wiring, power supply, mounting screws for the mullion, and other system components are sold separately unless specifically stated.

Verify compatibility with your specific Aiphone door station before ordering.
