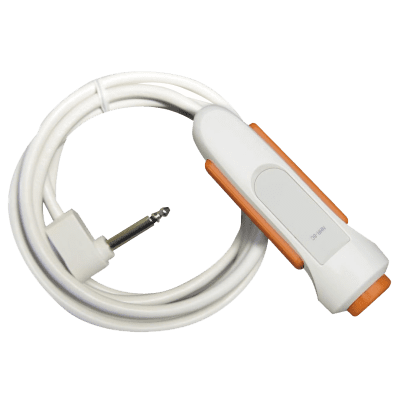

Provide patients with a convenient way to request assistance using the Aiphone NHR-8C Bedside Call Button, designed specifically for compatible Aiphone NHX Series Nurse Call Systems.

The NHR-8C plugs into a compatible bedside audio sub station and provides two levels of nurse-call signaling. Pressing the call button generates a routine call at the master station, while disconnecting the call cord from the bedside station automatically generates an urgent call.

Its durable handheld design and 7-foot cord make it ideal for bedside use in healthcare, assisted-living, and institutional environments.

Key Features

• Genuine Aiphone NHR-8C

• Bedside nurse call button

• Designed for the NHX Series Nurse Call System

• UL 1069 Listed

• Push button activates a routine call

• Cord-out condition activates an urgent call

• 7-foot cord

• Handheld bedside design

• Connects directly to compatible bedside audio sub stations

• One call button required per sub-station jack

• Designed for healthcare and patient-assistance applications

Product Specifications

Manufacturer: Aiphone
Model: NHR-8C
Series: NHX Series
Product Type: Bedside Call Button
Call Type – Button Press: Routine Call
Call Type – Cord Removed: Urgent Call
Cord Length: 7 ft / 2.1 m
Call Button Dimensions: 4-7/16" H x 1-3/8" W x 1-7/16" D
Listing: UL 1069
Application: Nurse Call / Patient Assistance

Routine Call Operation

When the patient presses the button on the NHR-8C, the connected NHX system sends a routine call to the compatible master station.

This provides patients with a simple, easily accessible method of requesting assistance from staff.

Cord-Out Urgent Call

The NHR-8C also provides an important safety function.

If the call cord is disconnected from the bedside sub station, the system automatically generates an urgent call at the master station.

This feature helps alert staff if the call button becomes unplugged or disconnected.

Compatible Bedside Stations

The NHR-8C is designed for use with:

NH-1SA/A

Single-Jack Bedside Audio Sub Station

Requires one NHR-8C bedside call button.

NH-2SA/A

Dual-Jack Bedside Audio Sub Station

Supports bedside call buttons through its two available call-button jacks.

One bedside call button is required for each jack being used.

NHX Nurse Call System

The NHR-8C operates as part of the Aiphone NHX Series Nurse Call System, which can include components such as:

• NHX-50M Master Station

• NHX-80X Central Control Unit

• NH-1SA/A Bedside Audio Sub Station

• NH-2SA/A Dual-Jack Bedside Audio Sub Station

• NHR-SP Audio Duty Station

• NHR-4A/A Corridor Lamp

• NHR-7A Urgent Call Pull Cord

The NHR-8C is not intended to operate as a standalone call system.

Ideal Applications

• Hospitals

• Assisted-living facilities

• Skilled nursing facilities

• Long-term care facilities

• Patient rooms

• Healthcare facilities

• Institutional nurse-call systems

• Existing Aiphone NHX system repairs

• Replacement bedside call buttons

Important Ordering Information

Before ordering, verify that the existing nurse-call system is a compatible Aiphone NHX Series system.

The NHR-8C connects to compatible bedside sub stations such as the:

• NH-1SA/A

• NH-2SA/A

One NHR-8C is required per bedside call-button jack.
