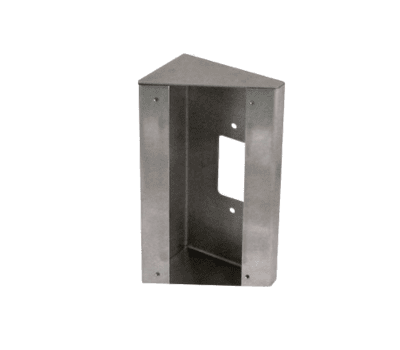

Improve the camera viewing angle of an Aiphone AX-DV video door station with the Aiphone SBX-AXDV30 30-Degree Angle Box.

Designed specifically for the AX-DV, this heavy-duty 18-gauge stainless-steel surface-mount enclosure positions the door station at a 30° angle, making it especially useful at wide openings, double-door entrances, or installations where the door station must be mounted to the side of the opening.

The SBX-AXDV30 provides additional interior space for cabling while maintaining the weather- and vandal-resistant construction required for demanding commercial entrance applications.

Key Features

• Genuine Aiphone SBX-AXDV30

• Designed specifically for the AX-DV video door station

• Positions door station at a 30° viewing angle

• Improves camera coverage at wide and double-door entrances

• Heavy-duty 18-gauge stainless-steel construction

• Surface-mount design

• Weather resistant

• Vandal resistant

• Interior space for cabling

• Mounts directly to a flat wall surface

• Bottom opening allows moisture drainage

• Includes tamper-resistant mounting hardware

• Ideal for commercial and institutional entrances

Product Specifications

Manufacturer: Aiphone
Model: SBX-AXDV30
Product Type: 30-Degree Angle Surface Mount Box
Compatible Door Station: AX-DV
Angle: 30°
Material: 18-Gauge Stainless Steel
Mounting: Surface Mount
Height: 7-11/16"
Width: 3-7/8"
Depth: 2-7/8"
Included Hardware: 8-32 Screws with T-15 Torx Head
Application: Video Door Station Camera Angle Adjustment
Manufacturer Status: Discontinued

Designed for the AX-DV

The SBX-AXDV30 is specifically designed for the:

Aiphone AX-DV – Surface-Mount Video Door Station

The angled enclosure allows the AX-DV to face more directly toward approaching visitors when the station cannot be mounted directly in front of the entry path.

30-Degree Viewing Angle

Mounting a video door station flat against a wall beside a wide or double-door opening can place visitors toward the edge of the camera's field of view.

The SBX-AXDV30 angles the AX-DV approximately 30 degrees outward, providing improved camera positioning and visitor identification.

This is particularly useful for:

• Double-door entrances

• Wide commercial openings

• Door stations mounted beside storefront entrances

• Offset wall locations

• Entrances with limited mounting locations

Stainless-Steel Construction

The SBX-AXDV30 is manufactured from durable 18-gauge stainless steel for commercial entrance applications.

Its construction provides:

• Vandal resistance

• Weather resistance

• Durable exterior mounting

• Professional appearance

• Protection for internal cabling

Interior Wiring Space

The enclosure provides internal space behind the AX-DV for routing compatible wiring.

This helps conceal and protect:

• CAT-5e communication cable

• Intercom wiring

• Door-release wiring

• Auxiliary connections

Drainage Opening

An opening at the bottom of the enclosure allows moisture to drain from the box, helping support exterior installation when installed according to Aiphone requirements.

Ideal Applications

• Commercial office entrances

• Schools and universities

• Healthcare facilities

• Government buildings

• Industrial facilities

• Apartment and condominium entrances

• Security vestibules

• Wide door openings

• Double-door entrances

• Existing AX Series installations

Important Product Status

The Aiphone SBX-AXDV30 has been discontinued by the manufacturer.

It remains useful for servicing and maintaining existing AX Series video intercom installations.

Availability may be limited to remaining distributor inventory.

What's Included

• SBX-AXDV30 30° Angle Box

• 8-32 mounting hardware with T-15 Torx heads

Important Ordering Information

This listing is for the SBX-AXDV30 angle box only.

The following are sold separately unless specifically stated:

• AX-DV video door station

• AX Series master station

• AX Series central exchange

• Power supply

• CAT-5e wiring

• Electric strike

• Door-release relay

• Other intercom components

Verify that the existing door station is an Aiphone AX-DV before ordering.
