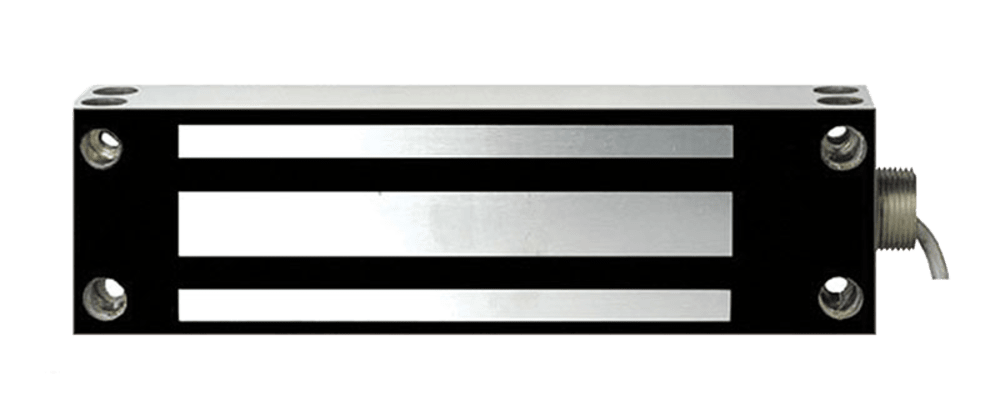

The Alarm Controls 1200WP is a weather-resistant magnetic gate lock designed for demanding perimeter access control applications. With up to 1200 lbs of holding force, this maglock is a strong choice for securing commercial, industrial, institutional, and gated-entry openings.

Built in a completely sealed stainless steel case, the 1200WP is made for outdoor gate environments where standard interior magnetic locks may not be suitable. It operates on 12 or 24 VDC and includes color-coded wire leads, blind nuts, and self-drilling TEC screws for installation support.

Use the Alarm Controls 1200WP on compatible sliding or swinging gates where a reliable weather-resistant electromagnetic locking solution is required. Optional brackets are available separately for top-mount or side-mount configurations.

Key Features

• Weather-resistant magnetic gate lock
• Up to 1200 lbs holding force
• Ideal for sliding or swinging gates
• Designed for perimeter access control applications
• Completely sealed stainless steel case
• 12 or 24 VDC field-configurable operation
• Clear anodized US28 finish standard
• 10" color-coded wire leads in plastic jacket
• Blind nuts and self-drilling TEC screws included
• Non-aluminum parts plated to resist corrosion
• Top-mount or side-mount installation with L brackets, ordered separately
• Limited lifetime warranty listed by manufacturer

Specifications

Model: Alarm Controls 1200WP
Product Type: Weather Resistant Magnetic Gate Lock
Holding Force: Up to 1200 lbs
Voltage: 12 or 24 VDC, field configurable
Current Draw: 500 mA at 12 VDC; 250 mA at 24 VDC
Magnet Size: 9-1/16" L x 2-5/8" H x 1-1/16" W
Armature Size: 7-9/32" L x 2-5/8" H x 5/8" W
Operating Temperature: +14°F to +131°F / -10°C to +55°C
Finish: Clear anodized US28
Common Accessories: AM6320 angle bracket; AM6370 three-piece Z bracket

Compatibility / Installation Notice

Before ordering, verify that the Alarm Controls 1200WP matches your gate type, mounting method, voltage, access control system, and local code requirements. Brackets for top-mount or side-mount installations may be required and are sold separately.
