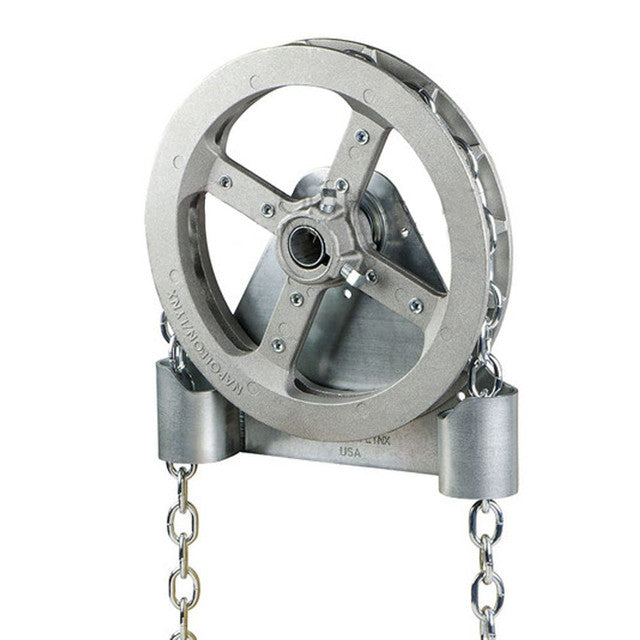

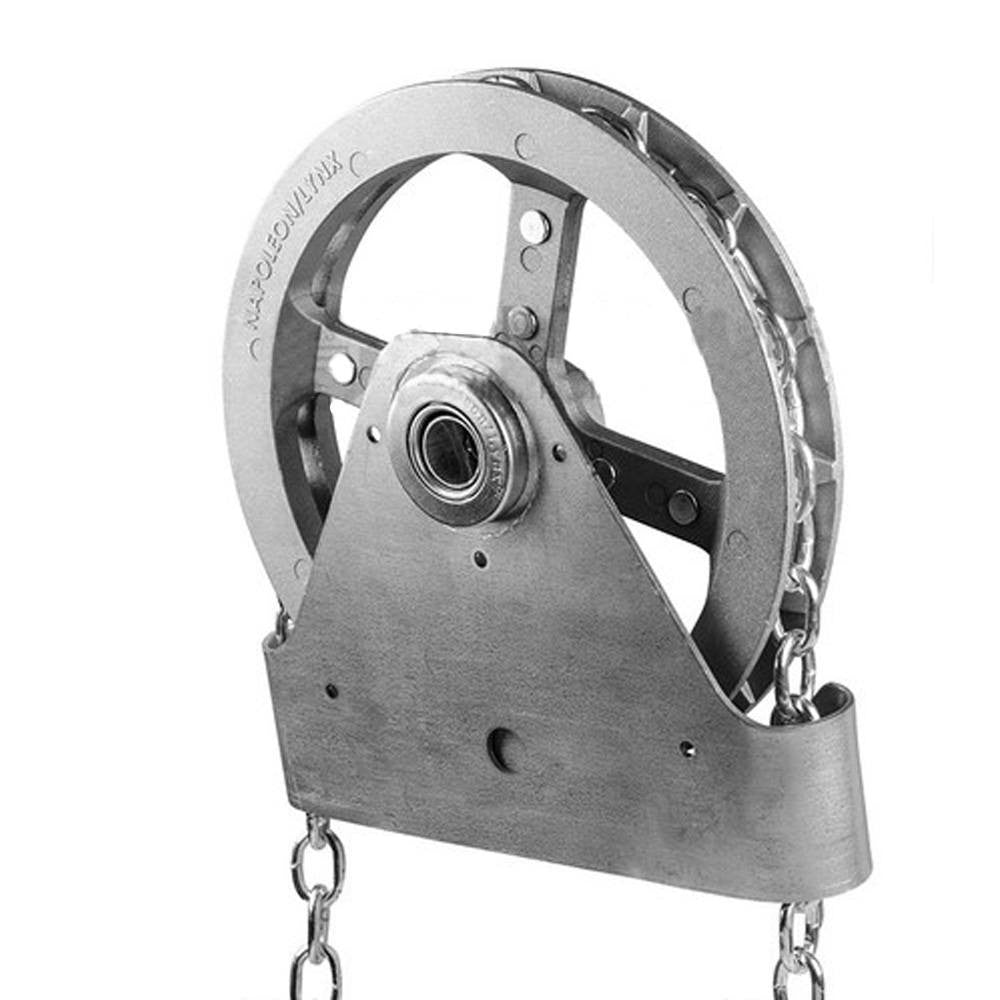

The Direct Drive Chain Hoist provides smooth, dependable manual operation for commercial and industrial overhead doors. Designed for use with a 1-inch diameter shaft, this 1:1 direct-drive configuration delivers precise control without gear reduction.

Its compact design makes it an excellent choice for installations with limited space, while the heavy-duty construction supports demanding rolling and overhead door applications. The hoist comes pre-assembled and includes the essential hardware needed for a streamlined installation.

Features

• Direct-drive 1:1 ratio
• Compatible with 1" diameter shafts
• Smooth and controlled manual door operation
• Heavy-duty construction for commercial and industrial use
• Ideal for tight-clearance installations
• Pre-assembled for faster installation
• Suitable for heavy rolling and overhead doors

Specifications

• Drive Type: Direct drive
• Reduction Ratio: 1:1
• Shaft Size: 1" diameter
• Outer Sprocket Diameter: 8-13/16"
• Inner Sprocket Diameter: 7-7/16"
• Required Shaft-to-Wall Offset: 5-3/8"
• Operation: Manual hand-chain operation
• Application: Commercial and industrial overhead doors

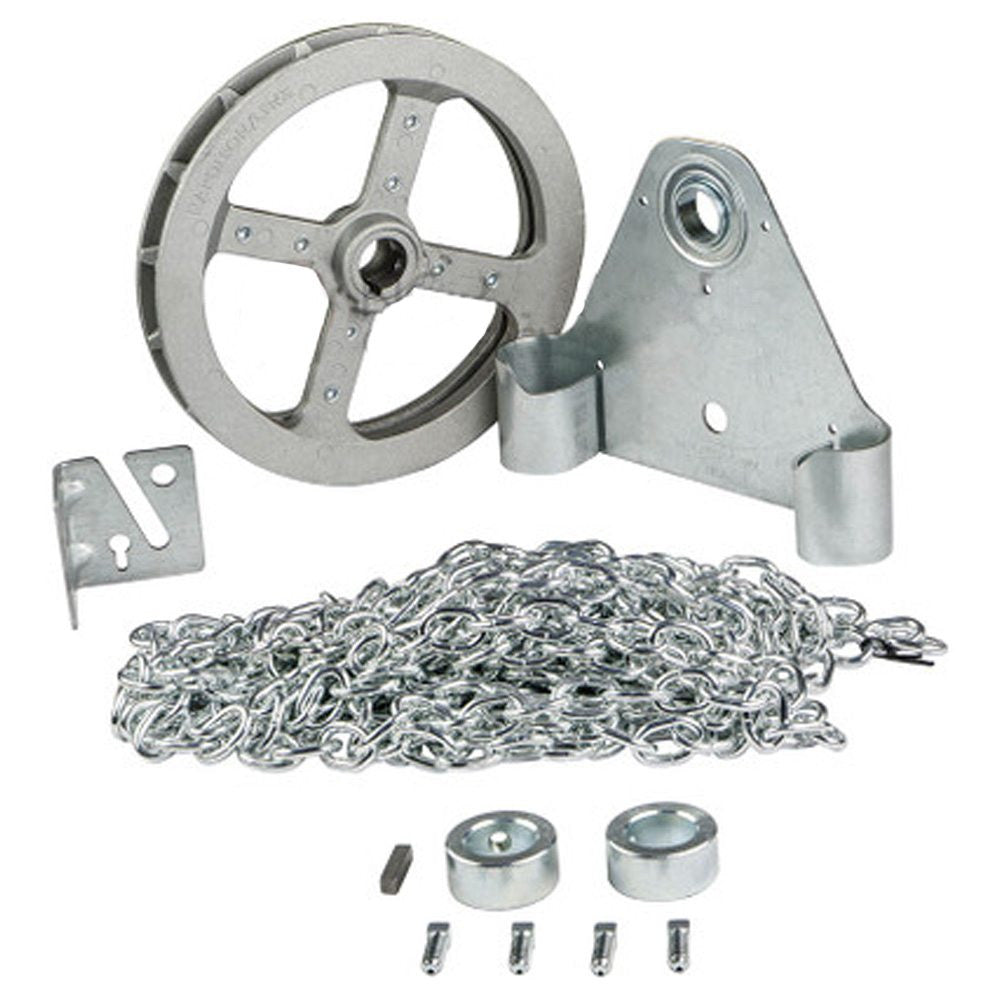

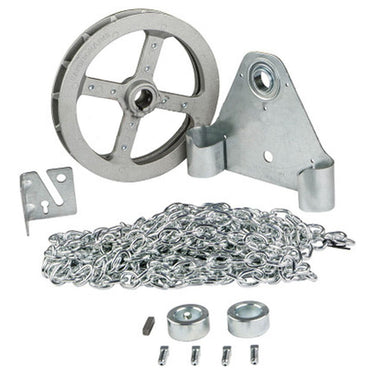

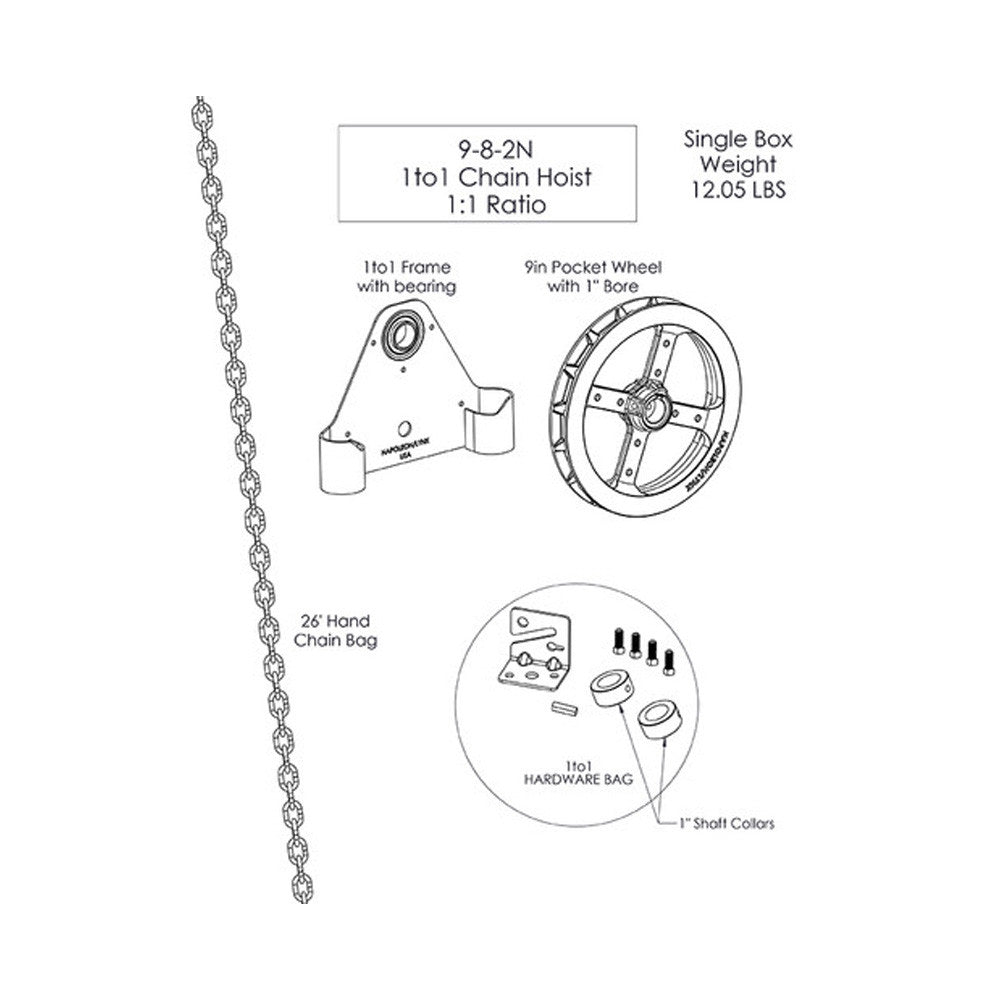

Kit Includes

• 26 feet of hand chain
• Chain keeper
• Two shaft collars
• 1/4" shaft key
• Pre-assembled direct-drive chain hoist

Recommended Applications

Ideal for warehouses, manufacturing facilities, loading areas, service buildings, agricultural buildings, and other commercial locations requiring reliable manual operation of a rolling or overhead door.
