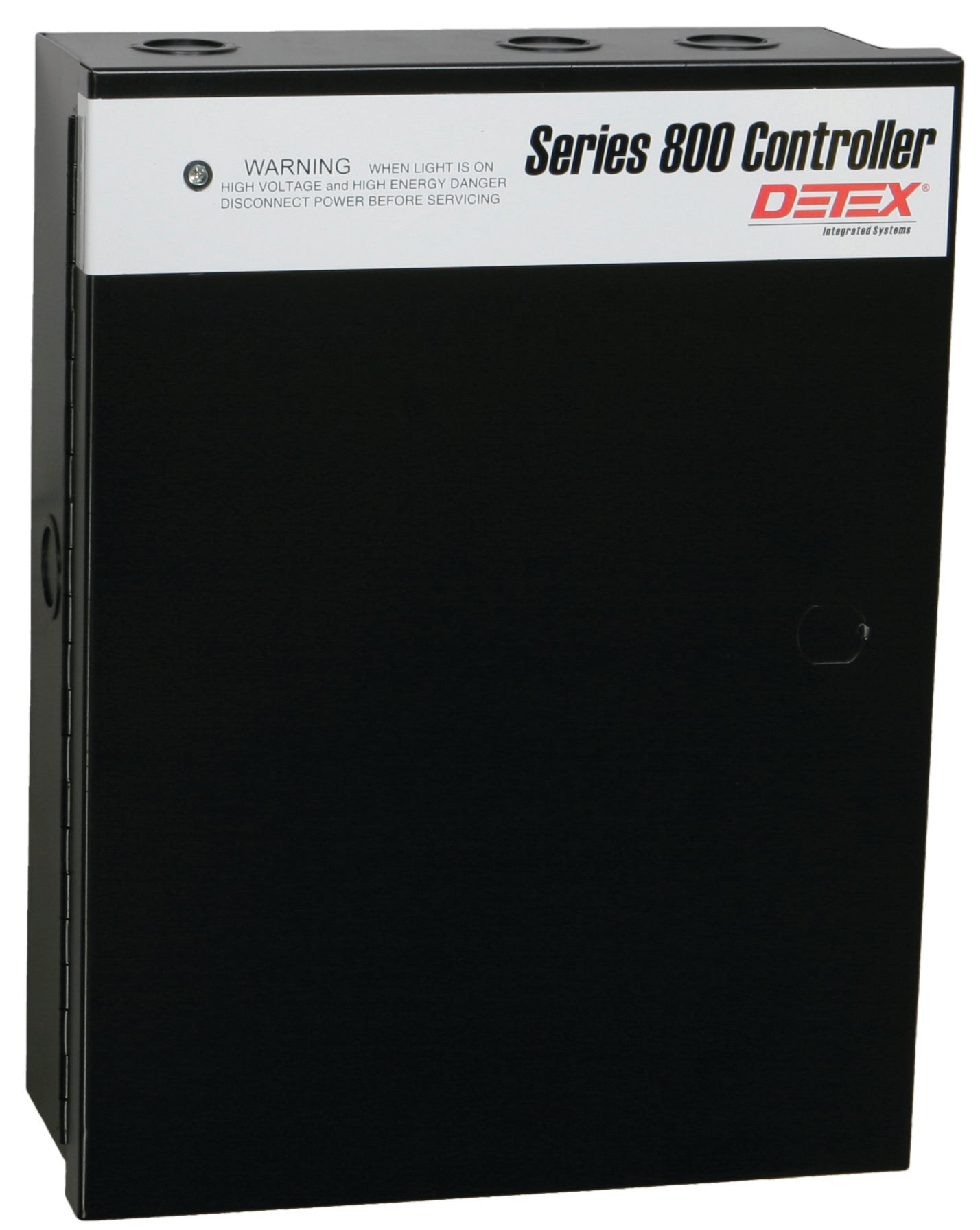

The Detex 10-800 Series 800 Controller combines a universal logic controller and regulated power supply in one secure enclosure. Designed for commercial access-control and egress applications, the controller accepts signals from switches, access-control systems, and other dry-contact devices and processes them into the required output for electrified door hardware.

The 10-800 can control up to two separate doors in standard egress or two-door interlock applications. It can also be configured for delayed-egress systems. The controller provides 2 amps of filtered, regulated DC power with selectable 12VDC or 24VDC output.

This stand-alone system includes the back box/enclosure, transformer, and Series 800 controller electronics. Centralized terminal connections, labeled circuits, status LEDs, fuse protection, and multiple relay outputs simplify installation, troubleshooting, and system integration.

Key Features

• Power supply and universal logic controller in one enclosure
• Nominal 120VAC input
• Selectable 12VDC or 24VDC output
• Provides up to 2A of DC power
• Controls up to two separate doors
• Supports standard egress and two-door interlock applications
• Configurable for delayed-egress applications
• Output relays for electric locks, local alarms, and remote alarms
• Relay outputs may be configured as wet or dry connections
• Multiple fire-alarm relay input options
• Status LEDs assist with troubleshooting
• Central terminal connections simplify field wiring
• On/off switch provides convenient service and inspection
• Inline fuse protection helps protect against power surges
• Standard battery charging and backup circuit; batteries sold separately

Technical Specifications

Detex’s catalog identifies the 10-800 as access-control compatible and lists it for electric-lock, standard-egress, delayed-egress, and interlock applications.

System Includes

• Detex Series 800 controller electronics
• Metal back box and enclosure
• Internal transformer
• Power supply components
• Locking enclosure cover

Common Applications

• Electrified exit devices
• Magnetic locks
• Electric strikes
• Electrified locksets
• Delayed-egress systems
• Two-door interlock systems
• Access-control systems
• Local and remote door-alarm signaling

Installation Note: Batteries, access-control readers, switches, locks, door-position switches, and other field devices are sold separately. Installation and configuration should be completed by a qualified access-control or low-voltage technician.
