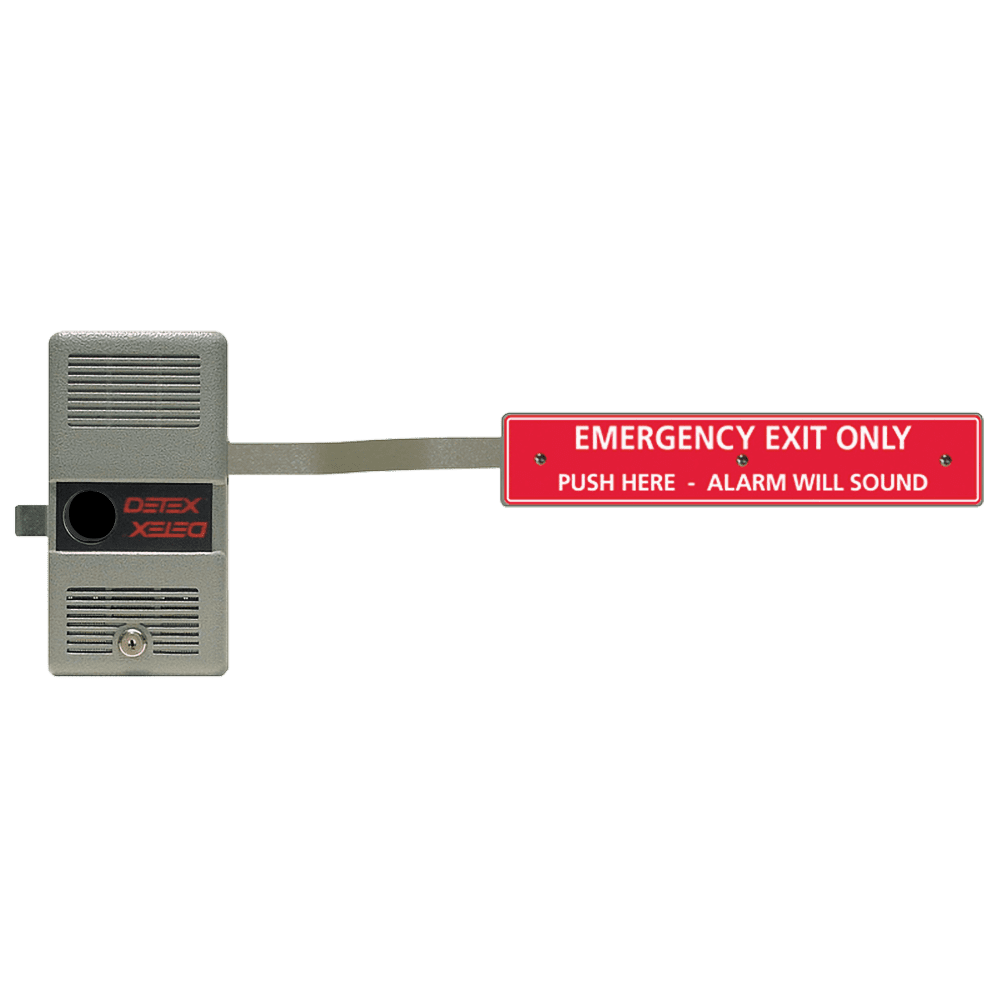

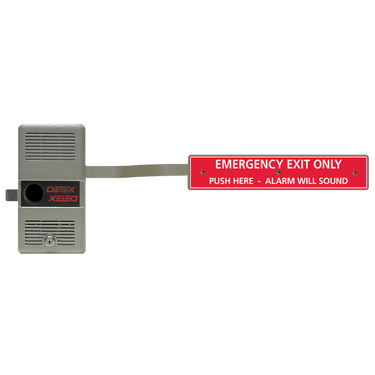

Alarmed Exit Control for Commercial Secondary Doors

Protect secondary exits with the Detex ECL-230D-PH Exit Control Lock. This rugged panic device combines controlled exit security with a loud 100 dB alarm, a single-point deadbolt and an easy-to-operate
push bar.

The durable steel push plate includes photoluminescent signage that absorbs
ambient light and remains visible when lighting is reduced. Its non-handed
design makes the device suitable for left- or right-hand door applications.

Key Features

UL-listed panic hardware
Battery-powered 100 dB exit alarm
Single-point, 1 in. throw deadbolt
Saw-resistant deadbolt and corrosion-resistant alloy lock body
Attack-resistant design rated by the manufacturer for more than 2,200 lb. of outside pull force
Steel push plate with photoluminescent signage
Non-handed design for left- or right-hand applications
Locking and unlocking the deadbolt arms and disarms the alarm
Accepts standard and interchangeable-core rim cylinders from 5 to 7 pins
Gray finish

Door Compatibility

Door materials: wood, hollow metal or aluminum
Compatible door thickness: 1-3/4 in. to 2-1/4 in.                                               Manufacturer-listed minimum standard door width: 34 in.

Ideal Applications

Recommended for retail stores, warehouses, stockrooms, commercial facilities
and other locations that require managed security at a secondary exit.

Configuration note: Rim-cylinder options vary by SKU. Confirm
whether a cylinder is included with this listing before purchase.
Professional installation and verification of local life-safety requirements
are recommended.
