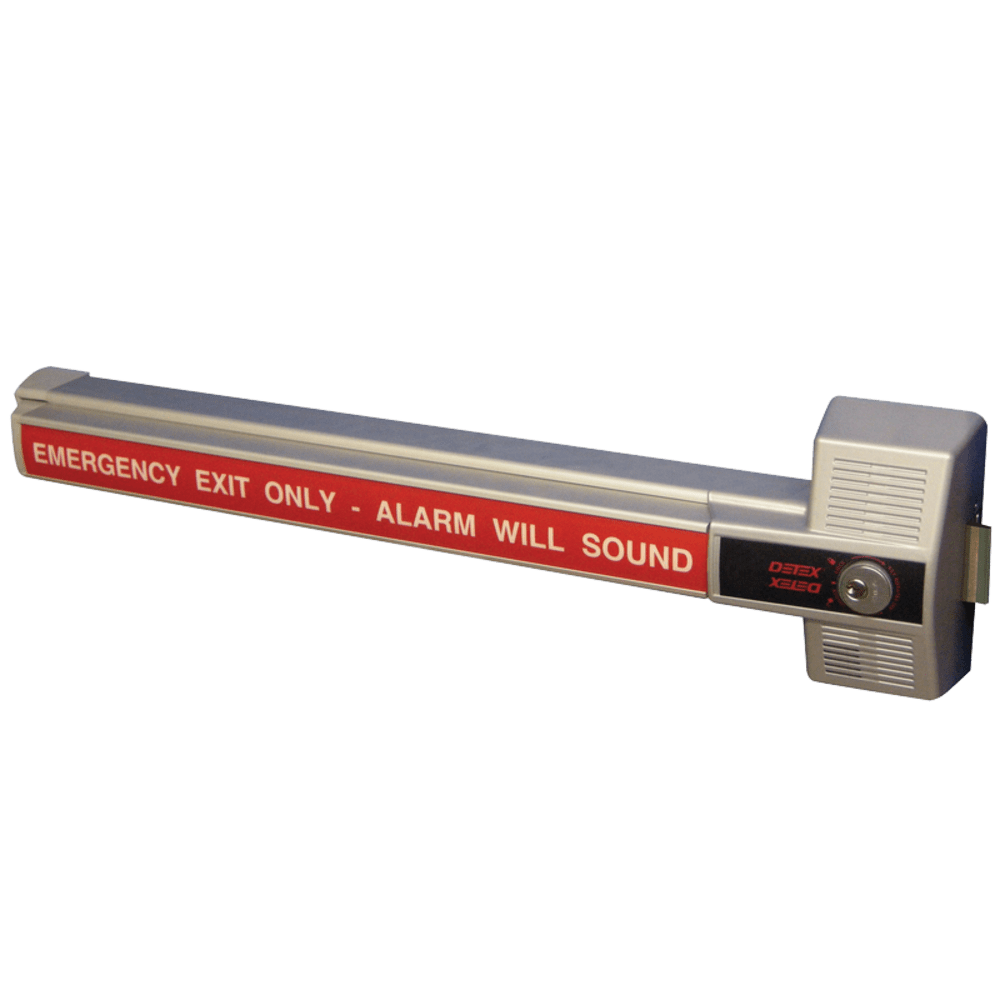

Secure secondary exit doors without sacrificing life-safety functionality with the Detex ECL-230X-W Weatherized Exit Control Lock. Built for demanding commercial applications, this rugged exit-control device combines a heavy-duty deadbolt, battery-powered alarm, and photoluminescent exit signage in a weather-resistant design suitable for outdoor and wet environments.

The ECL-230X-W features a 1-inch throw deadbolt with more than 3/4-inch frame engagement for strong holding force. Locking or unlocking the deadbolt automatically arms or disarms the alarm, while alarm reset requires the control key for added security.

A built-in 100 dB alarm provides an immediate audible warning when the protected exit is activated. The durable photoluminescent sign absorbs ambient light and remains visible when lighting conditions are reduced, helping occupants quickly identify the exit.

Its low-profile construction is designed to meet the International Building Code requirement for a maximum 4-inch projection from the face of the door. The unit accommodates 36-inch to 48-inch doors, providing flexibility for a range of commercial exit applications.

Key Features

• Weatherized design for outdoor or wet environments
• Powerful 100 dB exit alarm
• Battery-alarmed operation
• Rugged 1-inch throw deadbolt
• More than 3/4-inch deadbolt engagement with frame
• Locking/unlocking automatically arms and disarms alarm
• Alarm reset requires control key
• Photoluminescent glow-in-the-dark exit sign
• Attack-resistant construction for maximum holding force
• Low-profile, code-compliant design
• Fits 36-inch to 48-inch doors
• Designed for secondary exit applications
• Easy to install and operate

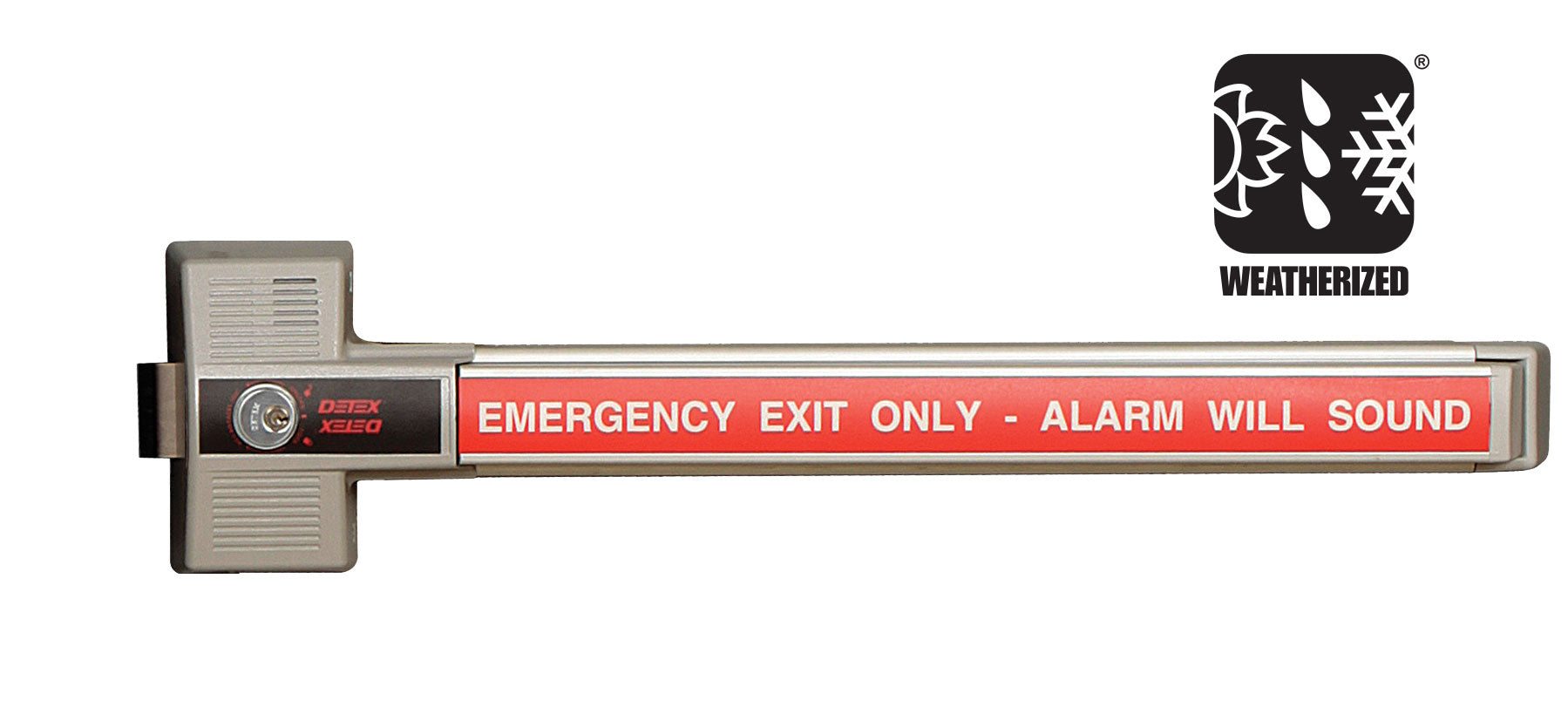

Weatherized Construction

The ECL-230X-W is specifically engineered for demanding environmental conditions.

Detex lists compliance with environmental testing that includes:

• UL 1034 temperature testing

• UL 1034 dust testing

• MIL-STD 810F driving rain testing

• MIL-STD 810F salt fog testing

This makes the ECL-230X-W particularly well suited for exposed commercial doors and other openings where moisture and weather resistance are important.

Alarm Operation

The built-in 100 dB alarm helps alert personnel when the protected exit is operated.

Locking the deadbolt automatically arms the alarm, while unlocking the deadbolt disarms it. Once activated, the alarm requires the appropriate control key for reset.

Common Applications

• Exterior Secondary Exits

• Retail Loss Prevention

• Warehouses

• Garden Centers

• Industrial Facilities

• Schools

• Government Buildings

• Hospitals

• Commercial Facilities

• Perimeter Security Doors

• Outdoor Commercial Openings

Product Specifications

Brand: Detex
Model: ECL-230X-W
Product Type: Weatherized Exit Control Lock
Locking: Single-Point Deadbolt
Deadbolt Throw: 1"
Alarm: 100 dB
Power: 9V Battery
Battery Included: Yes
Door Width: 36"–48" Standard
Handing: Non-Handed
Strike: Surface / Flush Reversible
Sign: Photoluminescent English Push Plate
Finish: Gray – Standard
Application: Weatherized Commercial Exit Security
Rim Cylinder: Not Included

The device accepts compatible 5-pin through 7-pin standard or interchangeable-core rim cylinders without requiring a cylinder collar.

What's Included

• Detex ECL-230X-W Exit Control Lock

• Photoluminescent Push Plate Sign

• 9V Battery

• Standard Strike Hardware

Rim cylinder is sold separately. An optional Detex BE-961 power supply can be used when 9VDC hardwired operation is required.

Important

Verify door width, cylinder requirements, door/frame preparation, mounting conditions, and applicable panic-hardware and life-safety requirements before ordering.
