15-Second Delayed Egress | Weatherized | Less Dogging | 36" or 48" | 628 Aluminum

Protect outdoor and weather-exposed exits with the Detex WDE-V40EEX-W-LD-628 Weatherized Delayed Egress EasyKit, a complete commercial delayed-egress solution built around the rugged Detex V40 Value Series weatherized rim exit device.

Designed for gates, exterior doors, garden centers, healthcare facilities, retail loss-prevention openings, and other controlled exits, the WDE EasyKit provides a 15-second delayed release with a 100 dB alarm when an unauthorized exit attempt occurs.

Unlike delayed-egress systems that rely on an electromagnetic lock, the V40EEX-W system uses the panic device itself to provide delayed exit control, simplifying the opening while maintaining code-compliant life-safety operation.

Key Features

• Genuine Detex Weatherized Delayed Egress EasyKit
• V40 Value Series wide-stile rim exit device
• EEX-W weatherized delayed-egress configuration
• Standard 15-second delayed release
• 100 dB alarm
• Designed for exterior and wet environments
• LD – Less Dogging
• 628 / US28 Aluminum finish
• Available for:
  • 36" doors
  • 48" doors
• Stainless steel deadlocking Pullman-type latchbolt
• Weatherized system components
• Does not require a magnetic lock
• Factory-programmed delayed-egress controller
• Fire-alarm override connection
• Remote bypass and signaling capability
• Non-handed hardware configuration

Available Door Widths

36" Door

Configured for a standard 3' wide opening.

48" Door

Configured for a standard 4' wide opening.

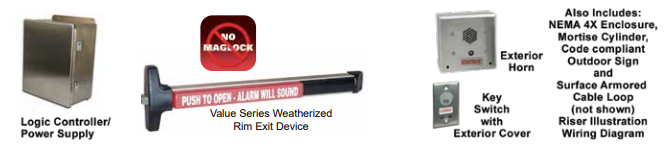

The weatherized EasyKit includes system components such as:

• V40EEX-W Weatherized Rim Exit Device
• Factory-programmed delayed-egress controller / power supply
• NEMA 4X weather-resistant controller enclosure
• Outdoor audible horn
• Momentary keyswitch with red and green LEDs
• Protective outdoor keyswitch cover
• Outdoor code-compliant delayed-egress signage
• Wiring documentation
• Riser illustration
• Point-to-point wiring diagram

The weatherized controller enclosure helps protect system electronics from moisture and corrosive environmental conditions.

Delayed Egress Operation

When an exit attempt is made, the system initiates its delayed-egress sequence and sounds an audible alarm.

After the required 15-second delay, the opening permits egress according to the system configuration and applicable life-safety requirements.

A 1–3 second field-adjustable nuisance delay is also available to help reduce accidental activation.

Fire Alarm Integration

The WDE EasyKit provides a fire-alarm override connection at the controller/power supply.

When properly integrated, the fire-alarm system can override the delayed-egress function to provide immediate release as required by applicable life-safety codes.

Common Applications

• Exterior Commercial Exit Doors
• Outdoor Gates
• Garden Centers
• Retail Loss-Prevention Exits
• Hospitals
• Healthcare Facilities
• Assisted Living Facilities
• Controlled Egress Openings
• Government Facilities
• Airports
• Schools
• Sports Facilities
• Perimeter Security Openings
• Weather-Exposed Commercial Doors

Product Specifications

Brand: Detex
Series: Value Series V40 / WDE EasyKit
Model: WDE-V40EEX-W-LD-628
Device Type: Weatherized Rim Exit Device
Function: Weatherized Delayed Egress
Delay: 15 Seconds
Alarm: 100 dB
Dogging: LD – Less Dogging
Door Width Options: 36" / 48"
Standard Strike: 99 Surface Strike
Finish: 628 / US28 Aluminum
Controller Enclosure: NEMA 4X
Standard Controller Input: 120VAC
Application: Exterior / Weatherized Delayed-Egress Openings

Detex also lists 240V and 277V controller/power-supply configurations as available options.

Important

Delayed-egress systems must be installed and configured according to applicable building, fire, accessibility, and life-safety codes. Requirements vary by occupancy and local jurisdiction.

Verify the door width, strike, power-transfer method, electrical supply, fire-alarm connection, door/frame preparation, and local delayed-egress requirements before ordering.
