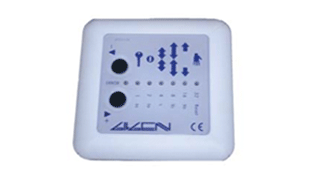

The GILDOR 260-001 BEDIS Control Pad is a replacement remote operating and programming panel for compatible GILDOR SLM automatic sliding door systems. It allows authorized users and service technicians to select operating modes, adjust door settings, reset the operator, and view system fault indications from a convenient wall-mounted control location.

Designed to communicate with the SLM control box through a two-wire bus connection, the BEDIS pad provides LED status indication and simple plus-and-minus controls for navigating operating and adjustment functions.

Key Features

• Replacement BEDIS remote control pad for GILDOR SLM automatic sliding doors
• Selectable Manual, Hold Open, Two-Way Automatic, Partial Opening, Exit Only, and Night operating modes
• LED indicators display the selected operating mode
• Provides access to operator reset and setup functions
• Adjustable opening speed and closing speed
• Adjustable reduced-opening width
• Adjustable standard and nighttime hold-open times
• Displays diagnostic fault codes to assist with troubleshooting
• Two-wire communication with the compatible SLM control box
• Suitable for permanent installation or temporary use as a service programming device

Specifications

Manufacturer: GILDOR
Part Number: 260-001
Product Type: BEDIS remote control and programming pad
Compatible Series: GILDOR SLM automatic sliding door systems
Interface: Two-wire bus connection
Controls: Plus and minus function-selection buttons
Indicators: LED operating-mode and diagnostic indicators
Application: Commercial automatic sliding door operator control
Package: BEDIS control pad only

Operating Modes

The BEDIS control pad can provide access to the following SLM door operating functions:

• Manual: Releases the sliding panels for manual movement
• Hold Open: Opens the door and keeps it in the open position
• Two-Way Automatic: Activates normal interior and exterior sensor operation
• Automatic Partial Opening: Provides automatic operation with a reduced opening width
• Exit Only: Keeps the interior activation device active while disabling normal exterior activation
• Night: Restricts normal sensor activation and permits operation through the designated key input

Application

Ideal for replacing a damaged, missing, or nonfunctional control pad on a compatible GILDOR SLM automatic sliding entrance. The 260-001 provides building personnel with convenient day-to-day mode selection while also giving qualified technicians access to setup and diagnostic functions.

Important Ordering Information

Verify that the existing automatic door operator is a GILDOR SLM system and requires part number 260-001 before ordering. This listing is for the BEDIS pad only; the mounting box, wiring, and other accessories may be sold separately. Installation and advanced programming should be completed by personnel trained in automatic door systems.
