Heavy Duty Half Surface Geared Hinge — BHMA Grade 1

Maximum Strength. Surface-Mounted Versatility. Grade 1 Performance.

The HDGH-053 from Vector Hinge Co. is built for demanding commercial openings that require superior durability and reliable performance. Designed as a half surface, heavy-duty application, this geared hinge provides smooth operation while supporting large, high-traffic doors.

Rated BHMA Grade 1, it meets the highest standards for strength and performance in commercial environments.

Engineered for Heavy-Duty Use

• BHMA Grade 1 certified

• Supports doors up to 48” wide

• Maximum door weight: 450 lbs

• Designed for high-frequency, commercial applications

• Heavy-duty geared construction for smooth, consistent movement

• Helps prevent door sag and reduces long-term maintenance

Precision Fit

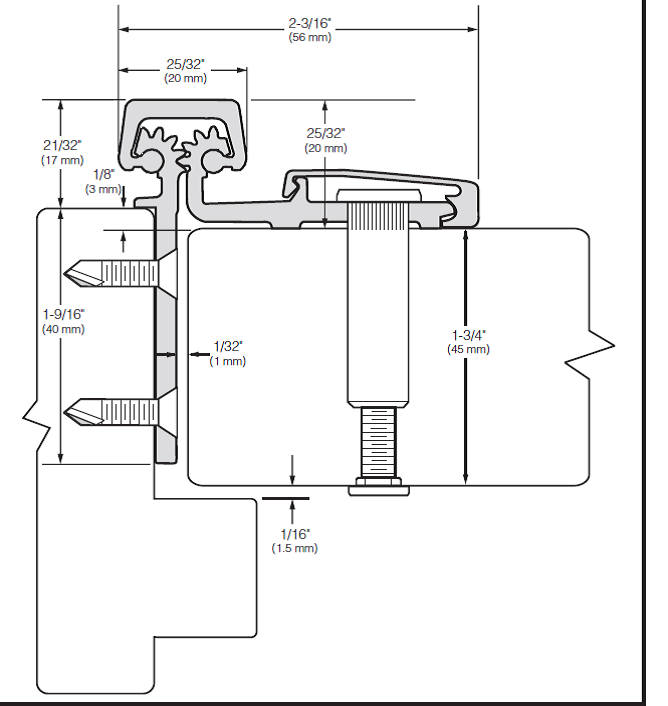

• Half surface application

• 3/32” door inset

• Ideal for retrofit or surface-mounted installations

• Clean, professional appearance with reliable alignment

Available Options

Finishes:

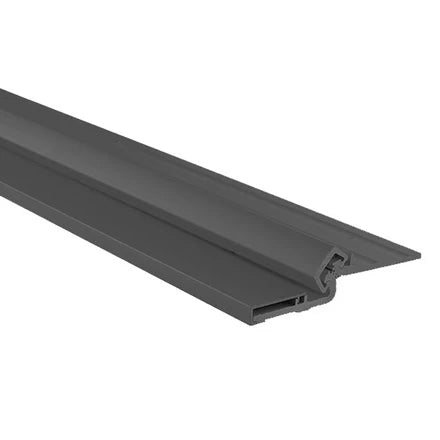

• Matte Black

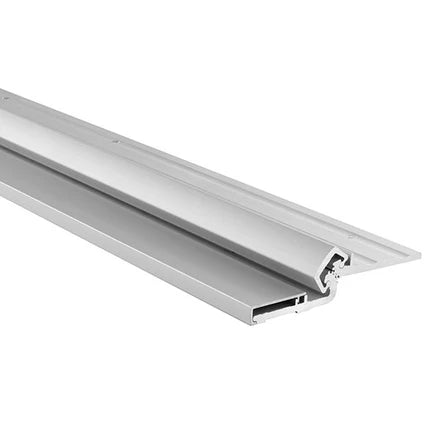

• Aluminum

Lengths:
• 83”
• 95”

Why Choose the HDGH-053?

✔ Grade 1 commercial performance
✔ Built for wide, heavy doors
✔ Surface-mounted versatility
✔ Long-term reliability in high-traffic environments

When strength and certification matter, choose Grade 1 performance.
Select your finish and length and order the HDGH-053 today.
