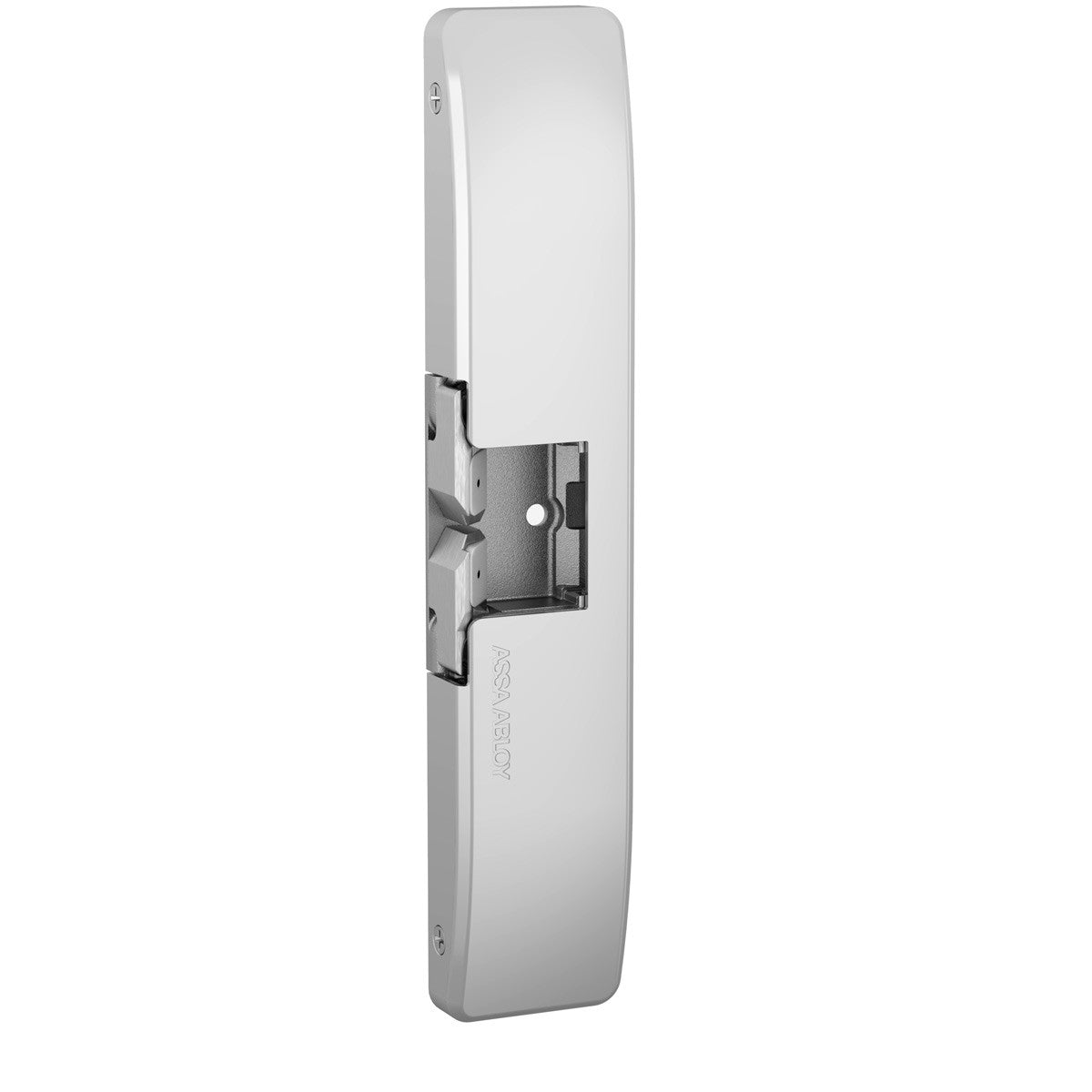

HES 9600-630 Surface-Mounted Electric Strike

Grade 1 | 12/24VDC | 2,000 lb Static Strength | Rim Exit Device | 630 Satin Stainless Steel

Add reliable electrified access control to compatible rim exit devices with the HES 9600-630 Surface-Mounted Electric Strike.

Designed for exit devices using up to a 3/4" Pullman-style latchbolt, the HES 9600 installs directly to the surface of a compatible metal or wood frame without requiring a traditional strike pocket or frame cutout.

Its heavy-duty stainless steel construction, field-selectable 12/24VDC operation, adjustable Fail Safe/Fail Secure configuration, and horizontal adjustment make it an excellent choice for commercial access-control installations.

Key Features

• Genuine HES 9600 Series

• Model: 9600-630

• Surface-mounted electric strike

• Designed for compatible rim exit devices

• Accommodates up to a 3/4" Pullman latchbolt

• 12 or 24VDC field selectable

• Fail Secure or Fail Safe – field selectable

• 630 Satin Stainless Steel finish

• Stainless steel construction

• ANSI/BHMA Grade 1

• 2,000 lb static strength

• 120 ft-lb dynamic strength

• Tested to 1,000,000 cycles

• Non-handed

• Horizontal adjustment

• Internally mounted solenoid

• Tamper-resistant construction

• Windstorm resistant

• Suitable for outdoor use

• Installs on metal or wood frames

• No frame cutting required

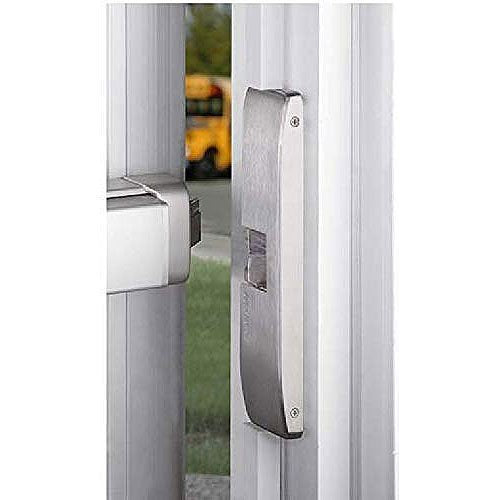

Surface-Mounted Installation

The HES 9600 installs directly to the face of the frame.

Installation is simplified because there is no need to cut a traditional electric-strike pocket into the frame. The strike is positioned in alignment with the rim exit device latchbolt and secured to the frame.

The separate base and decorative cover allow easier adjustment during installation.

Designed for Rim Exit Devices

The 9600 is engineered for compatible rim exit devices equipped with a Pullman-style latchbolt up to 3/4" throw.

Typical applications include electrifying commercial openings equipped with compatible:

• Rim Panic Devices

• Rim Exit Devices

• Access-Control Systems

• Card Readers

• Keypads

• Remote Release Systems

Always verify the specific exit-device model against HES compatibility information before ordering.

Dual Voltage

The HES 9600 supports:

12VDC: 500mA continuous duty
24VDC: 250mA continuous duty

Voltage is field selectable using the supplied plug-in connectors.

Fail Secure / Fail Safe

The 9600 can be field configured for either operating mode.

Fail Secure

The strike remains locked when electrical power is removed.

Fail Safe

The strike releases when electrical power is removed.

Select the required configuration according to the access-control system, opening requirements, and applicable life-safety codes.

Strength & Durability

The HES 9600 is designed for demanding commercial openings.

Static Strength: 2,000 lb
Dynamic Strength: 120 ft-lb
Endurance: 1,000,000 Cycles

The strike is also tamper resistant and constructed from stainless steel for long-term commercial use.

Certifications & Listings

The HES 9600 carries applicable certifications including:

• ANSI/BHMA A156.31 Grade 1

• UL 294 Listed

• UL 305 Listed

• UL 1034 Burglary-Resistant Listed

• Suitable for outdoor use

• ANSI/SDI 250.13 Certified

• ASTM E330 Certified

• Florida Building Code Approved

• RoHS Compliant

Important Fire-Rating Note

The HES 9600 Series is not fire rated.

For applications requiring a fire-rated surface-mounted strike for compatible 3/4" Pullman-latch rim exit devices, verify whether the HES 9500 Series is appropriate for the opening.

Product Specifications

Brand: HES
Series: 9600
Model: 9600-630
Product Type: Surface-Mounted Electric Strike
Application: Rim Exit Devices
Latchbolt Capacity: Up to 3/4" Pullman Latch
Voltage: 12/24VDC
Current @ 12VDC: 500mA
Current @ 24VDC: 250mA
Duty: Continuous
Operation: Fail Secure / Fail Safe – Field Selectable
Handing: Non-Handed
Adjustment: Horizontal
Static Strength: 2,000 lb
Dynamic Strength: 120 ft-lb
Endurance: 1,000,000 Cycles
Strike Height: 9"
Strike Depth: 3/4"
Material: Stainless Steel
Finish: 630 Satin Stainless Steel
Outdoor Rated: Yes
Windstorm Rated: Yes
Fire Rated: No
Grade: ANSI/BHMA Grade 1

Included

Standard HES 9600 packaging includes:

• 9600 Electric Strike Body

• Decorative Cover

• Mounting Screws

• Lockdown Screws

• Cover Screws

• 5/64" Hex Key

• 12V Plug-In Connector

• 24V Plug-In Connector

Wood-frame installation may require appropriate wood screws, which are not included.

Common Applications

• Commercial Entry Doors

• Rim Exit Devices

• Retail Stores

• Office Buildings

• Warehouses

• Schools

• Hospitals

• Government Facilities

• Access-Controlled Entrances

• Exterior Commercial Doors

• Windstorm-Rated Openings

• Industrial Facilities

Important

Before ordering, verify:

• Exit-device manufacturer and model

• Pullman latchbolt size

• 12VDC or 24VDC power supply

• Fail Safe or Fail Secure requirements

• Frame construction

• Door and frame alignment

• Fire-rating requirements

• Access-control wiring

The 9600 is specifically designed for compatible rim exit devices with up to a 3/4" Pullman latchbolt and should not be selected solely based on physical dimensions.
