MMTC 3BX Exterior Surface-Mount Open/Close/Stop Control Station – NEMA 4
MMTC 3BX Exterior Surface-Mount Open/Close/Stop Control Station – NEMA 4
$101.17
/
Pickup available at NC Warehouse
Usually ready in 2-4 days
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

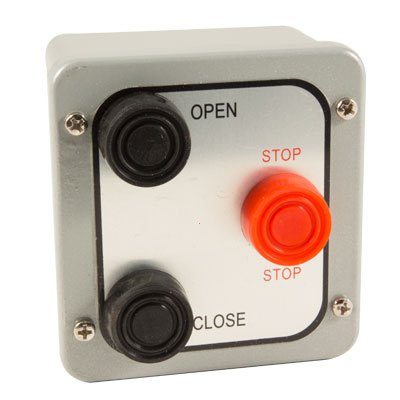

Control commercial overhead doors, garage doors, and gate operators with the rugged MMTC 3BX Exterior Control Station. This three-button station provides dedicated OPEN, CLOSE, and STOP commands in a durable die-cast aluminum enclosure designed for exterior and demanding commercial environments.
The fully guarded push buttons are arranged in an easy-to-use triangular configuration. Its surface-mount design allows the station to be installed on a wall, post, or other suitable mounting surface near the door operator.
With a NEMA 3R, 4, and 12-rated enclosure, the 3BX provides dependable protection against rain, dust, dirt, and other environmental conditions when properly installed.
Key Features
- Three-button OPEN, CLOSE, and STOP operation
- Exterior-rated surface-mount control station
- Fully guarded push buttons help prevent accidental activation
- Heavy-duty die-cast aluminum enclosure
- NEMA 3R, 4, and 12 enclosure ratings
- Open and Close buttons use normally open contacts
- Stop button uses a normally closed contact
- Rated for 6 amps at 125/250VAC
- Compact design for commercial and industrial installations
- Compatible with many commercial overhead door and gate operators
Common Applications
- Commercial overhead doors
- Rolling steel doors
- Sectional garage doors
- Warehouse and loading dock doors
- Commercial gate operators
- Industrial door systems
- Service garages and maintenance facilities
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | MMTC |
| Model | 3BX |
| Product Type | Exterior Three-Button Control Station |
| Button Functions | Open, Close and Stop |
| Mounting Style | Surface Mount |
| Enclosure Material | Die-Cast Aluminum |
| Enclosure Rating | NEMA 3R, 4 and 12 |
| Open Contact | Normally Open |
| Close Contact | Normally Open |
| Stop Contact | Normally Closed |
| Electrical Rating | 6A at 125/250VAC |
| Dimensions | 4-3/8" H × 4-1/8" W × 2-5/8" D |
| Keyed Lockout | Not Included |
Installation Note
Verify the door or gate operator’s control circuit requirements before installation. Wiring and installation should be completed by a qualified door technician or electrician in accordance with the operator manufacturer’s instructions and applicable electrical codes.
