NGP L-FRA100-TG-GT118 Lite Kit – 5" x 35"

Low-Profile Vision Lite Kit | 1/4" Tempered Glass | Gray Primer | For 1-3/4" Doors

Add visibility and a clean professional appearance to commercial doors with the NGP L-FRA100-TG-GT118 Lite Kit.

Designed for 1-3/4" thick hollow metal or wood doors, this low-profile vision frame is constructed from durable 18-gauge cold-rolled steel with mitered, welded corners and reinforcing clips.

This 5" x 35" configuration includes 1/4" clear tempered safety glass and L-GT-118 closed-cell PVC foam glazing tape, providing a complete vision-lite solution for compatible commercial door applications.

Key Features

• Genuine National Guard Products (NGP)

• Model L-FRA100-TG-GT118

• 5" x 35" order size

• Low-profile vision lite kit

• Designed for 1-3/4" thick doors

• Heavy-duty 18-gauge cold-rolled steel

• Mitered and welded frame corners

• Welded reinforcing clips

• Countersunk mounting screw holes

• Gray Primer (GPZ) powder coat finish

• Includes 1/4" clear tempered glass

• Includes L-GT-118 glazing tape

• Suitable for hollow metal and wood doors

• Manufactured in the USA

• Impact safety-rated glass

• Not fire-rated

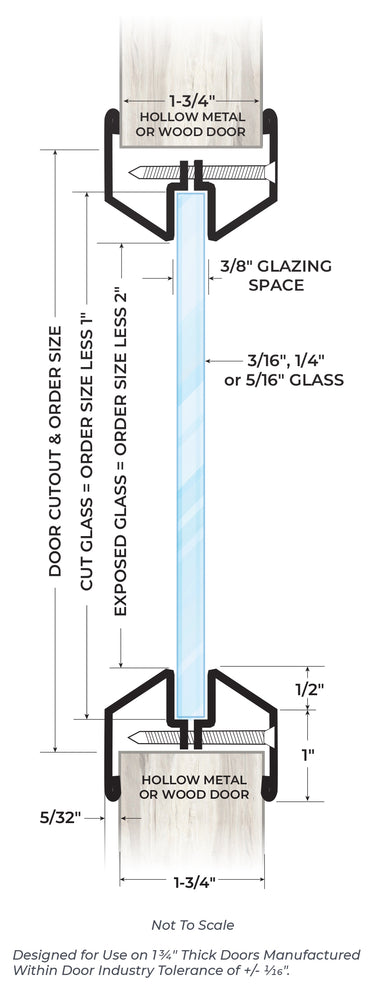

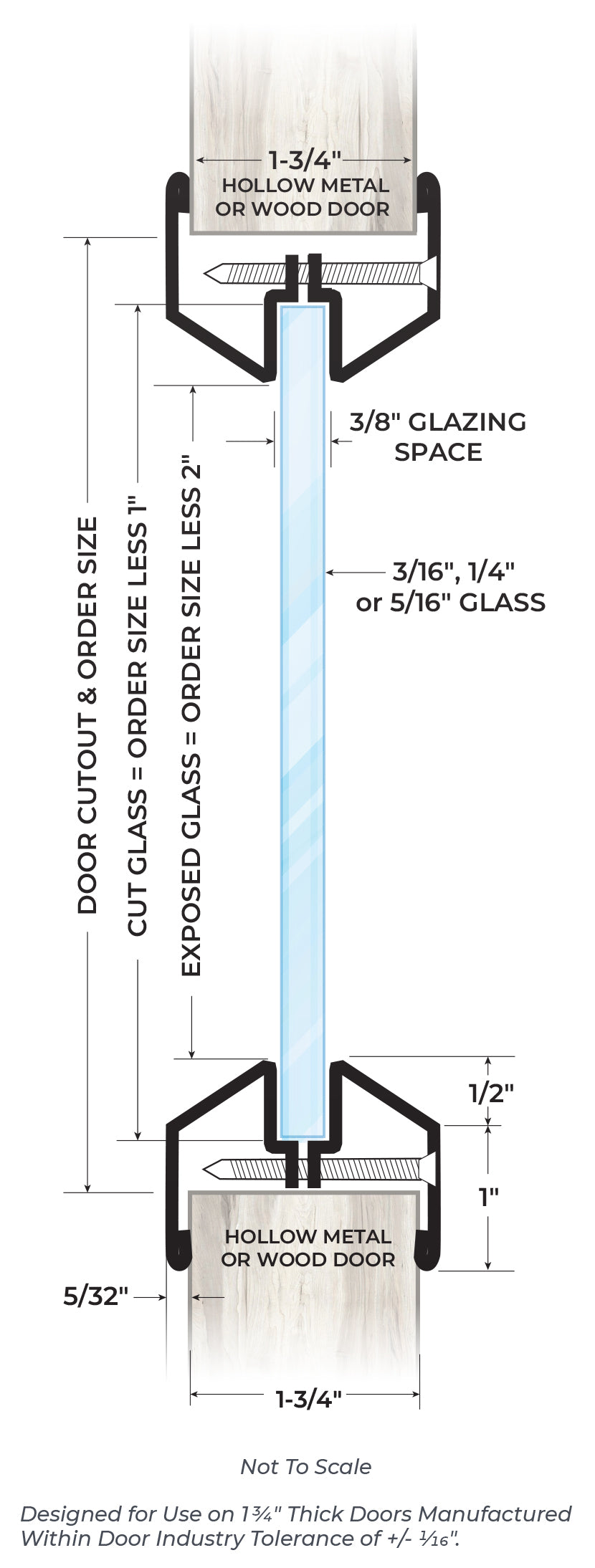

5" x 35" Sizing

For the NGP L-FRA100 series:

Door Cutout / Order Size: 5" x 35"
Cut Glass Size: 4" x 34"
Approximate Exposed Glass: 3" x 33"

NGP specifies that the cut glass is 1" smaller than the order size and the exposed glass is 2" smaller than the order size.

Tempered Safety Glass

The included glass is 1/4" clear heat-treated tempered glass.

NGP specifies that it:

• Is approximately four times stronger than ordinary annealed glass

• Breaks into relatively small fragments when broken

• Cannot be cut after tempering

• Meets ANSI Z97.1 Class A

• Meets CPSC 16 CFR 1201 Category I and II

• Complies with IBC impact-safety requirements for use in doors

L-GT-118 Glazing Tape

The included L-GT-118 glazing tape is constructed from closed-cell PVC foam with adhesive on both sides.

Tape Size: 3/8" Wide x 1/8" Thick
Color: Black
Material: Closed-Cell PVC Foam

Frame Construction

The L-FRA100 frame features:

• 18-gauge cold-rolled steel

• Mitered and welded corners

• Reinforced corner clips

• Countersunk mounting holes

• Gray primer powder-coat finish

• Low-profile design

• #8 Phillips-head mounting screws

The assembly is designed for 1-3/4" doors manufactured within standard door-industry tolerances.

Common Applications

• Hollow Metal Doors

• Wood Commercial Doors

• Office Doors

• School Doors

• Hospital Doors

• Healthcare Facilities

• Government Buildings

• Warehouse Offices

• Commercial Interior Doors

• Institutional Openings

• Vision Panel Retrofits

Product Specifications

Brand: National Guard Products (NGP)
Model: L-FRA100-TG-GT118
Product Type: Low-Profile Vision Lite Kit
Order Size: 5" x 35"
Door Cutout: 5" x 35"
Cut Glass: 4" x 34"
Exposed Glass: Approximately 3" x 33"
Door Thickness: 1-3/4"
Frame Material: 18-Gauge Cold-Rolled Steel
Frame Finish: Gray Primer Powder Coat
Glass: 1/4" Clear Tempered
Glazing Tape: L-GT-118
Tape Size: 3/8" x 1/8"
Fire Rated: No
Application: Hollow Metal or Wood Commercial Doors

Important

The TG tempered-glass version is not fire-rated. Do not use this configuration where a fire-rated vision assembly is required.

Tempered glass cannot be field cut after manufacturing. Verify the door cutout, glass dimensions, door thickness, and required rating before ordering.
