Center-Hung Door Pivot | Floor Mount | For Overhead Concealed Closers

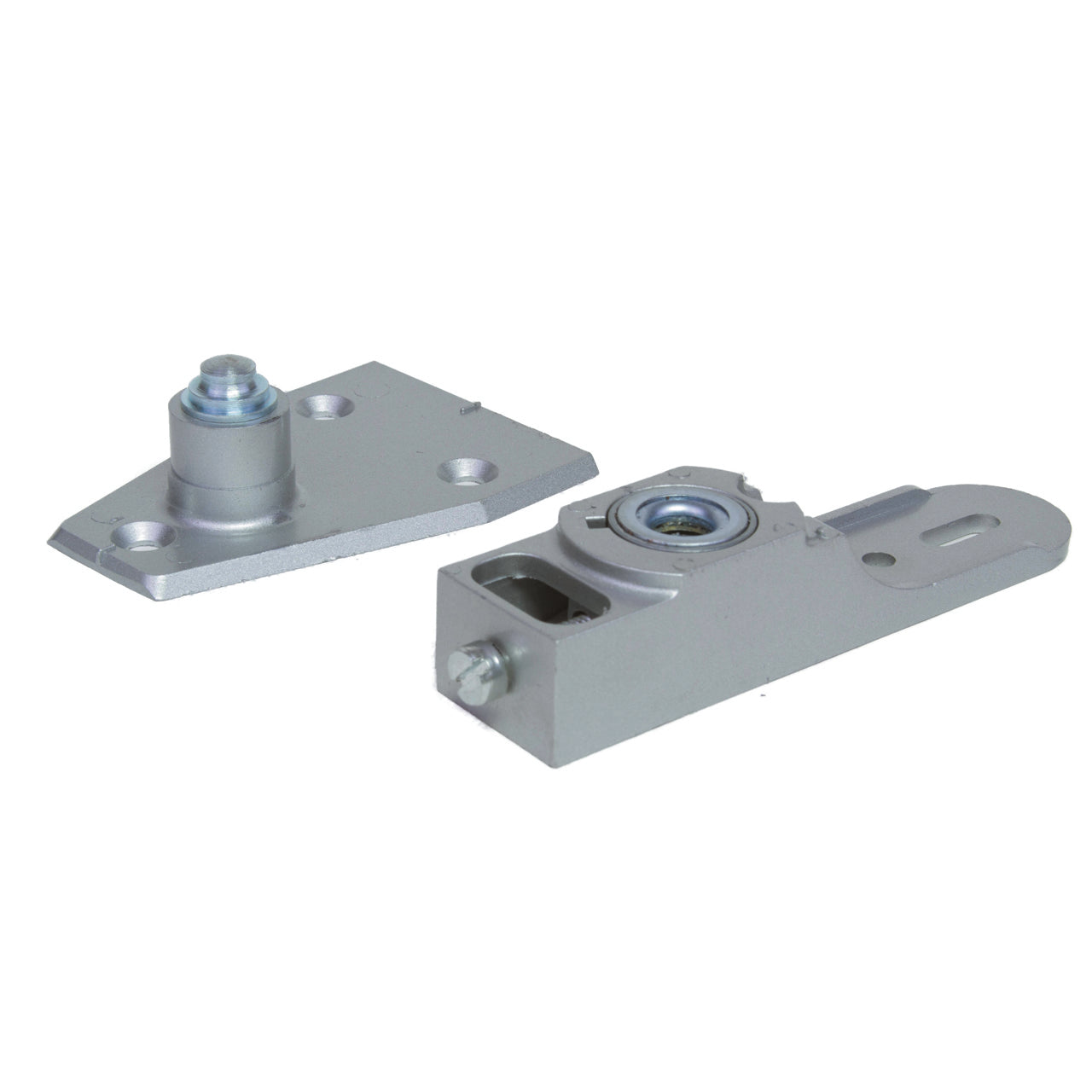

Restore smooth, properly aligned operation to compatible commercial aluminum doors with the Type G OHC Bottom Center Pivot.

Designed for center-hung doors using overhead concealed (OHC) closers, the Type G provides the lower pivot point for the door and mounts directly to the floor. Its adjustable door portion helps establish proper door height and clearance during installation or repair.

Designed for compatible doors with a 1-1/2" deep bottom rail, this pivot is an excellent replacement component for commercial storefront and entrance door systems.

Key Features

• Type G bottom center pivot

• Designed for overhead concealed closer systems

• For compatible center-hung doors

• Floor-mounted pivot design

• Side-load configuration

• Designed for 1-1/2" deep bottom door rails

• Provides 3/16" vertical height adjustment

• Helps maintain proper door alignment and clearance

• Ideal for replacement and repair applications

• Commercial-grade storefront door hardware

Common Applications

• Aluminum Storefront Doors

• Center-Hung Commercial Doors

• Overhead Concealed Closers

• Retail Entrances

• Office Buildings

• Restaurants

• Schools

• Shopping Centers

• Commercial Entrance Doors

Product Specifications

Product Type: Bottom Center Pivot Set
Pivot Type: Type G
Door Configuration: Center Hung
Mounting: Floor Mount
Loading Style: Side Load
Bottom Rail Depth: 1-1/2"
Height Adjustment: 3/16"
Application: Overhead Concealed Door Closer Systems

Important: Verify the existing pivot type, bottom rail depth, floor preparation, door weight, and overhead closer configuration before ordering.
