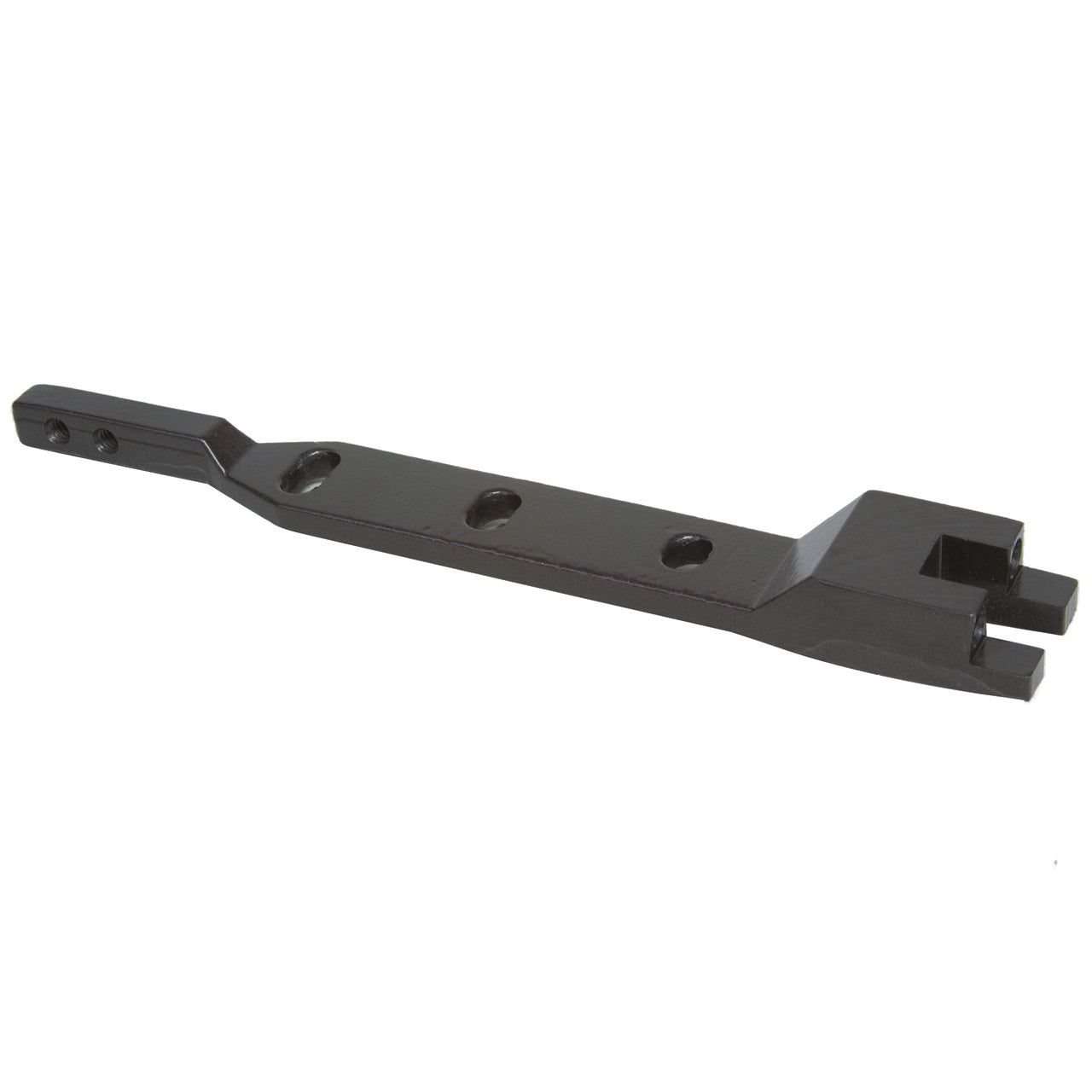

Center-Hung Door Pivot | Threshold Mount | For Overhead Concealed Closers

Restore proper support, alignment, and smooth operation to compatible commercial aluminum doors with the Type AE OHC Bottom Center Pivot.

Designed for center-hung doors using overhead concealed (OHC) closers, the Type AE provides the lower pivot point for the door while allowing adjustment during installation and service.

The threshold-mounted end-load design is intended for compatible doors with a 1" deep bottom rail, making it an excellent replacement component for commercial storefront and entrance door systems.

Key Features

• Type AE bottom center pivot

• Designed for overhead concealed closer systems

• For compatible center-hung doors

• Threshold-mounted design

• End-load pivot configuration

• Designed for 1" deep bottom door rails

• Adjustable for proper door positioning

• Helps maintain door alignment and clearance

• Heavy-duty commercial door application

• Ideal for replacement and repair installations

• Commercial-grade storefront door hardware

Common Applications

• Aluminum Storefront Doors

• Center-Hung Commercial Doors

• Overhead Concealed Closers

• Retail Entrances

• Office Buildings

• Restaurants

• Schools

• Shopping Centers

• Commercial Entrance Doors

Product Specifications

Product Type: Bottom Center Pivot
Pivot Type: Type AE
Door Configuration: Center Hung
Mounting: Threshold Mount
Loading Style: End Load
Bottom Rail Depth: 1"
Application: Overhead Concealed Door Closer Systems
Typical Door Capacity: Up to approximately 175 lbs

Important: Verify the existing pivot type, bottom rail depth, threshold preparation, door weight, and overhead closer configuration before ordering.
