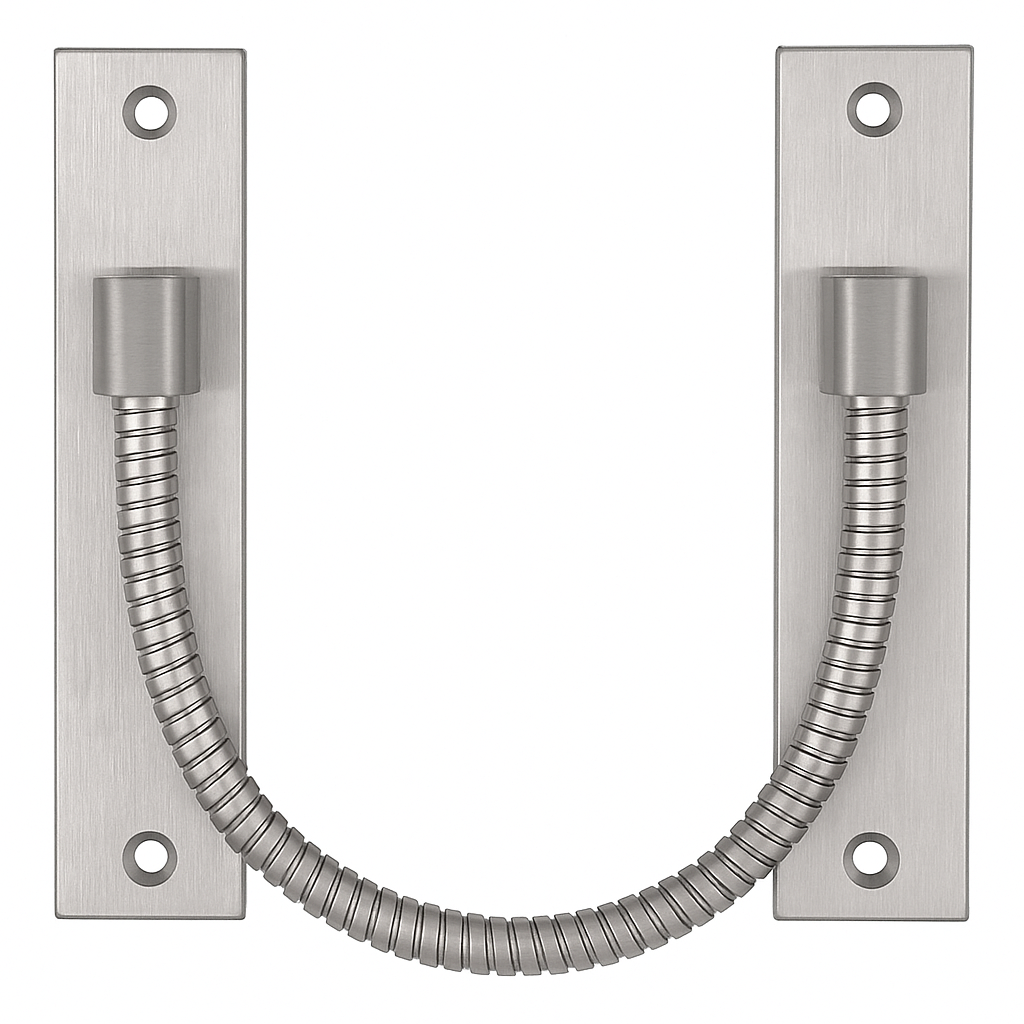

The SDC PT-2U Power Transfer Door Loop, commonly referenced as the SDC PT-2, provides a simple and economical method of routing electrical power or data wiring from the door frame to electrified hardware installed in the door.

The surface-mounted design allows for easy installation without mortising the door or frame. Its stainless-steel armored flexible conduit protects field-supplied wiring while allowing the door to open and close normally. Plastic end caps provide finished mounting points at the door and frame.

Features

• Surface-mounted power transfer door loop
• Transfers power or data wiring between the frame and door
• Stainless-steel armored flexible conduit
• Plastic mounting end caps
• 18-inch conduit length
• 1/4-inch interior conduit diameter
• Accommodates door openings up to 180 degrees
• Simple, cost-effective installation
• Recommended for hollow-metal and aluminum-frame applications
• 630 finish designation
• Ideal for commercial electrified door hardware

Specifications

Manufacturer: Security Door Controls
Brand: SDC
Model: PT-2U
Series Reference: PT-2
Product Type: Surface-mount power transfer door loop
Conduit Construction: Stainless-steel armored flex
Conduit Length: 18 inches
Conduit Interior Diameter: 1/4 inch
End Caps: Plastic
Maximum Door Opening: Up to 180 degrees
Finish: 630
Product Weight: Approximately 0.6 lb
Recommended Applications: Hollow-metal and aluminum-frame openings

Common Applications

The SDC PT-2U can be used to route wiring for:

• Electrified cylindrical and mortise locks
• Electrified exit devices
• Electric latch-retraction hardware
• Request-to-exit switches
• Door-position monitoring devices
• Lock-status monitoring
• Access-control systems
• Other low-voltage electrified door hardware

Installation Note

The PT-2U is a surface-mounted power transfer loop, not a concealed power-transfer device. One plastic end cap mounts to the frame and the other mounts to the door, allowing the armored conduit to flex as the door operates. Confirm the mounting position, door swing, wire quantity, wire diameter, and required clearance before installation.
