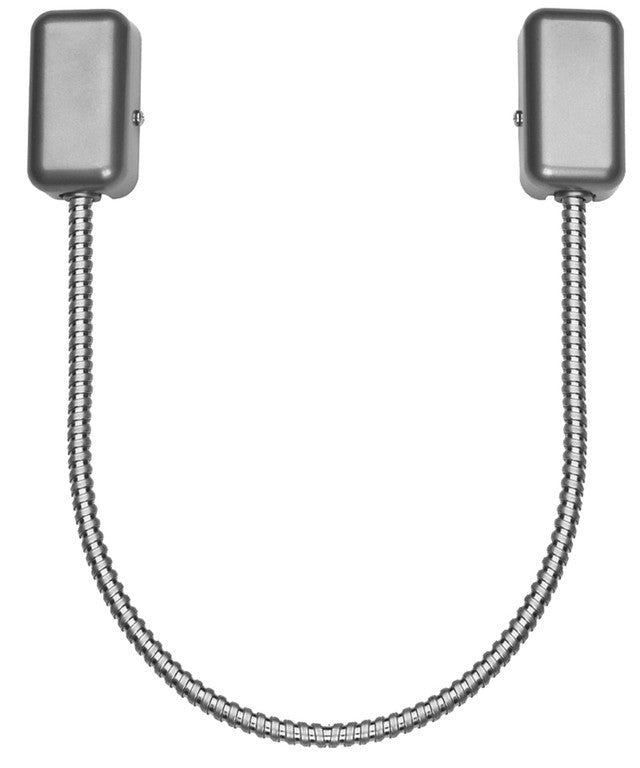

The SDC PT-3V Power Transfer Door Loop provides a simple and economical way to route electrical power or data wiring from the door frame to electrified hardware installed in the door. Its surface-mounted design allows for straightforward installation without requiring a concealed mortise power-transfer device.

The PT-3V features durable stainless-steel armored flex conduit with aluminum termination boxes. It is recommended for hollow-metal and aluminum-frame door applications equipped with electric locks, electrified exit devices, monitoring switches, or other access-control hardware.

Features

• Surface-mounted power-transfer door loop
• Transfers power or data wiring from the frame to the door
• Stainless-steel armored flexible conduit
• Aluminum box end caps provide protected wire termination points
• Cost-effective alternative to concealed power-transfer devices
• Allows door openings up to 180 degrees
• Recommended for hollow-metal and aluminum-frame applications
• Suitable for commercial access-control and electrified-door systems
• 628 satin aluminum finish
• SDC five-year warranty

Specifications

Manufacturer: Security Door Controls
Brand: SDC
Model: PT-3V
Product Type: Surface-mount power-transfer door loop
Conduit Construction: Stainless-steel armored flex
Conduit Length: 20 inches
Conduit Interior Diameter: 1/4 inch
End Caps: Aluminum termination boxes
Maximum Door Opening: Up to 180 degrees
Finish: 628 satin aluminum
Weight: Approximately 0.6 lb
Recommended Applications: Hollow-metal and aluminum door frames

Common Applications

The SDC PT-3V can be used to route wiring for:

• Electrified cylindrical or mortise locks
• Electrified exit devices
• Electric latch-retraction hardware
• Request-to-exit switches
• Door-position and lock-monitoring devices
• Access-control components
• Other powered or monitored commercial door hardware

Installation Note

The PT-3V is a surface-mounted power-transfer loop, not a concealed power transfer. The aluminum termination boxes mount to the door and frame, while the flexible armored conduit protects the wiring as the door opens and closes. Confirm the mounting location, door swing, required wire capacity, and clearance from hinges or pivots before installation. SDC lists the PT-3V for openings up to 180 degrees.
