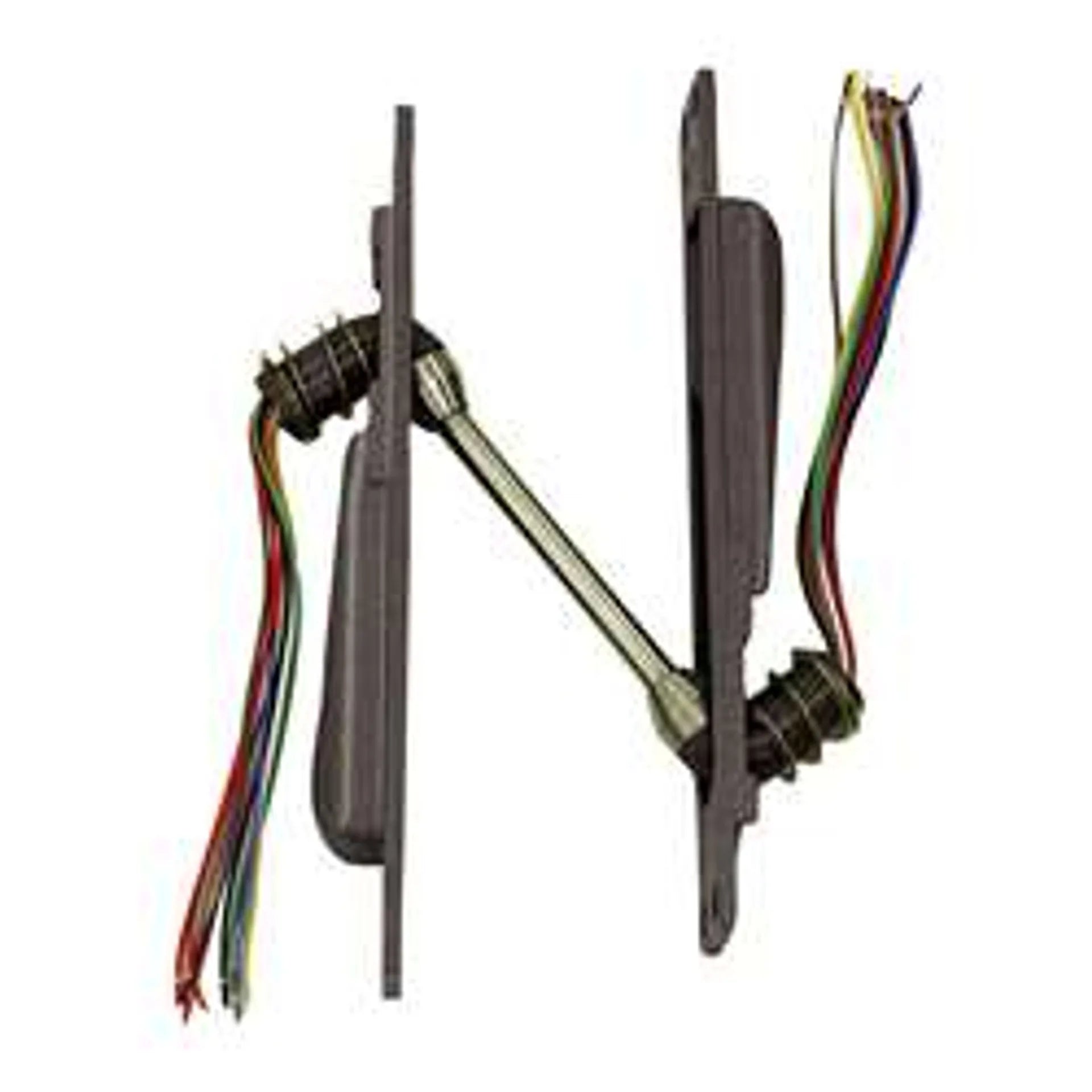

The ABH PT1000 Concealed Power Transfer provides a secure and discreet method of transferring electrical power or data from the door frame to electrified hardware installed in the door. The unit mortises into the edges of the door and frame, remaining completely concealed when the door is closed for a clean, tamper-resistant installation.

Constructed entirely from metal—including the backboxes—the PT1000 is designed for dependable performance in high-traffic and high-abuse commercial openings. It includes ten 24 AWG wires rated for a maximum of 24 VDC at 1 amp and is supplied in a S5 Dark Bronze Finish.

Features

• Completely concealed when the door is closed
• Transfers electrical power or data from the frame to the door
• Ten 24 AWG transfer wires
• Maximum electrical rating of 24 VDC, 1 amp
• All-metal construction with metal backboxes
• No plastic components
• Designed for high-traffic and high-abuse openings
• UL and ULC listed for use on fire doors
• Includes mounting fasteners for wood, steel, or aluminum doors and frames
• S5 Painted Dark Bronze (US10B)
• Mortise installation provides a clean, professional appearance

Specifications

Manufacturer: Architectural Builders Hardware
Brand: ABH
Model: PT1000
Product Type: Concealed electrical power transfer
Wire Configuration: Ten 24 AWG wires
Maximum Rating: 24 VDC, 1 amp
Construction: All-metal unit and backboxes
Installation: Mortised into the door and frame edges
Finish: S5 Dark Bronze
BHMA Finish Equivalent: US10B
Fire Door Use: UL/ULC listed
Application: Commercial electrified door openings

Common Applications

The ABH PT1000 is ideal for commercial door openings equipped with:

• Electrified locks
• Electrified exit devices
• Request-to-exit components
• Door position or monitoring equipment
• Access-control hardware
• Other low-voltage electrified door components

Compatibility Note

The standard PT1000 is intended for conventional hinge and offset-pivot applications. It is not designed for swing-clear hinges, center-hung doors, pocket pivots, butt hinges larger than 6 inches, or 1-1/2-inch offset pivots. Door thickness, hinge size, pivot offset, and required opening angle should be confirmed before ordering. The PT1000SC is the corresponding model for swing-clear hinge applications
