Heavy-Duty Automatic Swing Door Operator | 39" Header | S.M.A.R.T. LCD Display

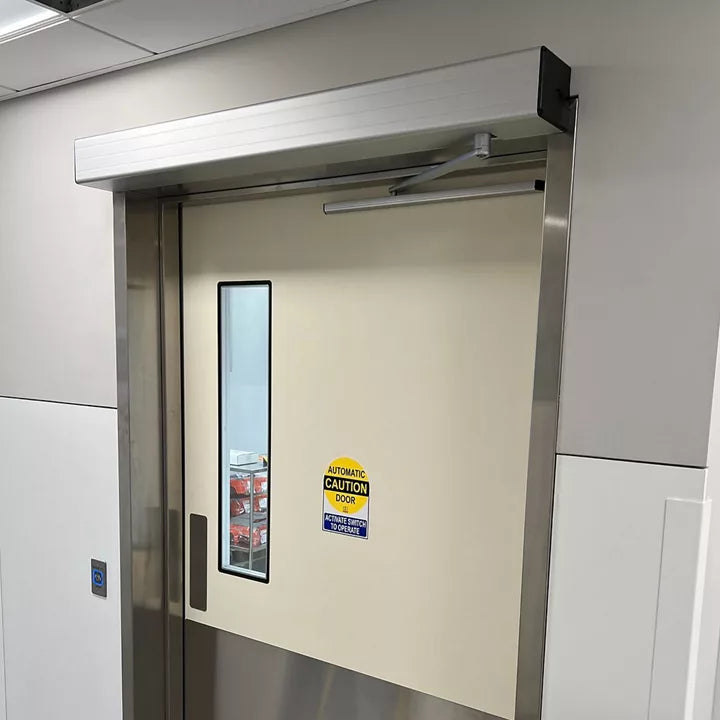

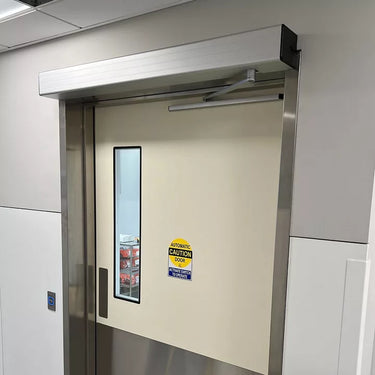

Automate high-traffic commercial door openings with the Record 8100 Automatic Swing Door Operator, featuring a 39" Clear Aluminum header and S.M.A.R.T. Panel LCD display.

The Record 8100 Series is a heavy-duty electro-mechanical swing door operator designed for demanding commercial applications requiring dependable, quiet, and flexible operation. The non-handed design accommodates compatible push or pull applications, simplifying installation and service.

The 39" header configuration is designed for a 36" door opening, making it an excellent choice for standard commercial entrance doors.

Key Features

• Record 8100 Series

• Heavy-duty automatic swing door operator

• 39" header

• Designed for a 36" door opening

• Non-handed

• Clear Aluminum finish

• Equipped with S.M.A.R.T. Panel LCD display

• Suitable for compatible push or pull applications

• Designed for high-frequency commercial use

• Quiet electro-mechanical operation

• Surface-applied installation

• Built-in interface for compatible electric strikes

• Built-in interface for compatible presence sensors

• Can be configured for low-energy applications

• Suitable for interior or exterior commercial openings

S.M.A.R.T. Panel LCD Display

The S.M.A.R.T. Panel LCD Display provides convenient onboard system information to assist qualified technicians with setup, diagnostics, adjustments, and service.

Common Applications

• Hospitals & Healthcare Facilities

• Retail Entrances

• Office Buildings

• Schools & Universities

• Government Facilities

• Assisted Living Facilities

• Supermarkets

• Storefront Entrances

• Airports

• High-Traffic Commercial Buildings

Product Specifications

Brand: Record
Series: 8100
Product Type: Automatic Swing Door Operator
Configuration: Single Operator
Header Length: 39"
Typical Door Opening: 36"
Handing: Non-Handed
Finish: Clear Aluminum
Display: S.M.A.R.T. Panel LCD
Motor: 24V, 1/4 HP
Installation: Surface Applied
Operation: Push or Pull
Application: Commercial Automatic Swing Doors

Standards

Record lists the 8100 Series as meeting applicable requirements for:

• ANSI/BHMA A156.19

• ANSI/BHMA A156.10

• UL 325

• UL 228

• UL 10C

Important: Verify door width, weight, swing direction, arm configuration, activation devices, safety sensors, electrical requirements, and required operating mode before ordering.
