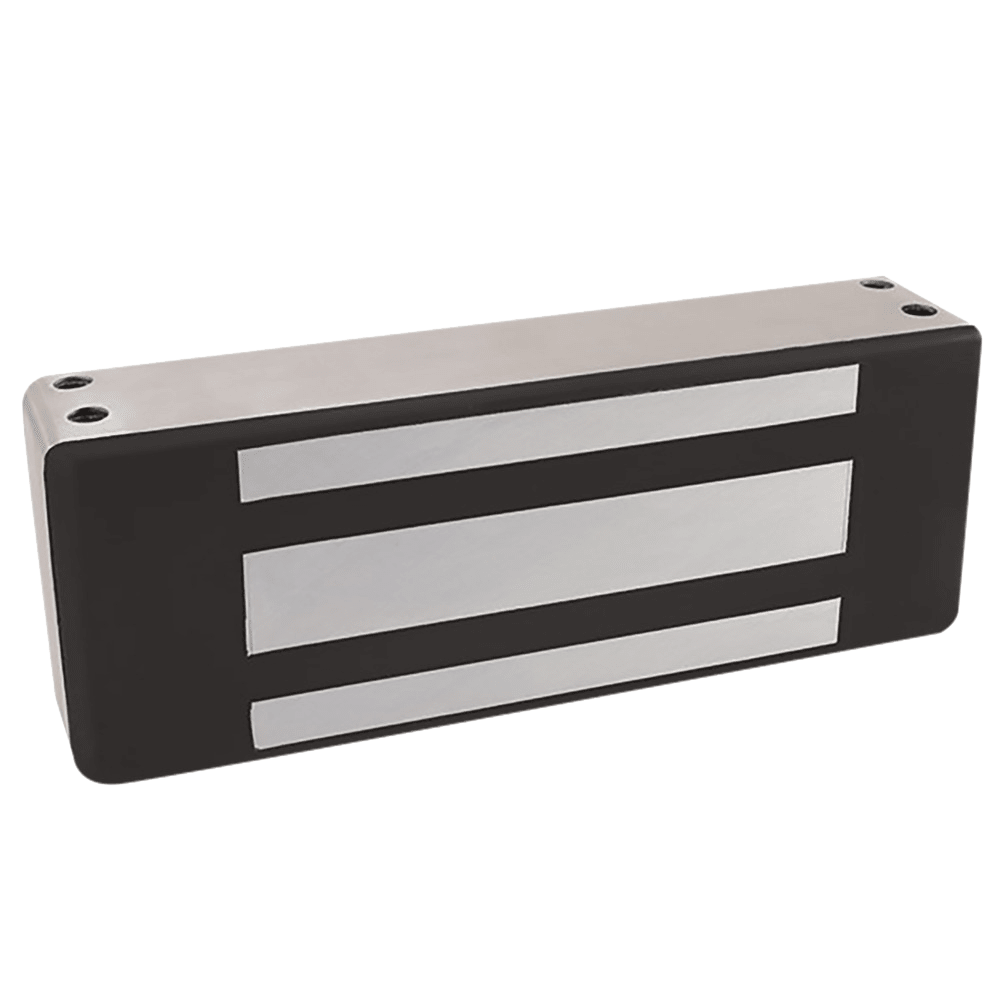

Secure commercial doors with the proven strength and reliability of the Securitron M62 MagnaLock®. Designed for demanding access-control applications, the M62 provides an impressive 1,200 lbs. of holding force while maintaining efficient, low-power operation.

The M62 features automatic dual-voltage operation, allowing connection to either 12VDC or 24VDC without field adjustment. Fully sealed electronics and corrosion-resistant construction make it suitable for both indoor and outdoor commercial applications.

Its patented instant-release design eliminates residual magnetism for fast, dependable door release when power is removed.

Key Features

• 1,200 lb. holding force
• 12/24VDC automatic dual voltage
• No field voltage adjustment required
• Satin Stainless Steel finish
• Indoor or outdoor use
• Fully sealed, tamper- and weather-resistant electronics
• Patented instant-release circuit helps eliminate residual magnetism
• Built-in MOV for electrical noise suppression
• Rust-resistant plated ferrous metal surfaces
• Includes 10 ft. jacketed stranded conductor cable
• Compact design works well with commercial door closer applications
• ANSI/BHMA A156.23 Grade 2
• UL 294 Listed
• UL 10C Listed
• 3-hour fire rated
• MagnaCare® lifetime replacement warranty

Electrical Specifications

• Voltage: 12/24VDC
• Current @ 12VDC: 250 mA
• Current @ 24VDC: 150 mA

Dimensions

• Magnet: 8" L × 1-3/4" D × 3" H
• Strike: 6" L × 1/2" D × 2-3/4" H
• Shipping Weight: Approximately 11 lbs.

Operating Temperature

-40°F to 140°F (-40°C to 60°C)

Applications

Ideal for:

• Commercial entry doors
• Access-controlled entrances
• Office buildings
• Hospitals and healthcare facilities
• Schools and universities
• Government facilities
• Warehouses and industrial facilities
• Perimeter security doors
• Exterior access-controlled openings

The Securitron M62 MagnaLock is an excellent choice when your project requires a heavy-duty electromagnetic lock with high holding force, dependable release, weather-resistant construction, and flexible 12/24VDC operation.
