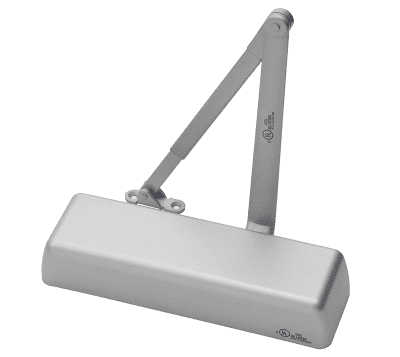

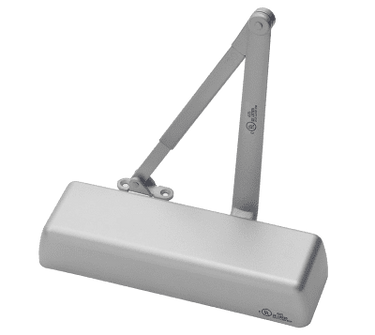

Provide dependable commercial door control with the ACCENTRA 2701 689 Architectural Door Closer.

Part of the ACCENTRA 2700 Series, the 2701 is a Grade 1, non-hold-open surface-mounted door closer with adjustable spring power from Size 1 through Size 6. Its tri-packed design supports regular arm, parallel arm, and top-jamb mounting from one versatile closer package.

Finished in 689 Aluminum Painted, the 2701 is well suited for commercial, institutional, healthcare, educational, retail, and office applications requiring durable, adjustable door control.

Key Features

• Genuine ACCENTRA / ASSA ABLOY

• Model 2701

• Part Number 2701 689

• ACCENTRA 2700 Series

• Architectural commercial door closer

• Adjustable Size 1–6

• Non-Hold-Open

• ANSI/BHMA A156.4 Grade 1

• UL and cUL listed

• UL 10C compliant

• ADA / ANSI A117 compatible when properly adjusted

• Non-handed

• Aluminum closer body

• Full rack-and-pinion mechanism

• Adjustable backcheck

• Adjustable closing / sweep speed

• Adjustable latch speed

• Tri-packed mounting

• Regular-arm mounting

• Parallel-arm mounting

• Top-jamb mounting up to 3" reveal

• Full plastic cover

• Sleeve nuts included

• Optional hold-open and heavy-duty arms available

• 689 Aluminum Painted finish

• 10-year limited manufacturer warranty

Adjustable Size 1–6

The 2701 provides adjustable spring power from:

Size 1 through Size 6

This allows one closer body to cover a broad range of commercial door applications.

Spring power can be adjusted according to:

• Door width

• Door weight

• Interior or exterior application

• Mounting position

• Wind conditions

• Required closing force

• Accessibility requirements

Always adjust the closer according to the door manufacturer, applicable codes, and actual field conditions.

Non-Hold-Open Function

The 2701 is supplied as:

Non-Hold-Open

After the door is opened and released, the closer automatically returns the door toward the closed position.

The standard arm does not mechanically hold the door open.

For the hold-open version of this platform, use the appropriate 2711 Series configuration.

Adjustable Backcheck

The 2701 includes adjustable:

Backcheck

Backcheck increases resistance as the door approaches the fully open position.

This helps reduce the impact of a door being opened aggressively and can help protect:

• Door

• Frame

• Hinges

• Closer

• Adjacent walls

Important

Backcheck is not a substitute for a mechanical door stop.

Use an auxiliary stop where required.

Adjustable Closing Speed

The sweep-speed valve controls the primary portion of the closing cycle.

This allows the installer to adjust how quickly the door travels from the open position toward the latch range.

Adjustable Latch Speed

A separate latch-speed adjustment controls the final portion of the closing cycle.

Proper adjustment helps ensure the door closes completely and engages the latch without excessive slamming.

Tri-Packed Mounting

The 2701 is supplied for three common installation methods.

Regular Arm

Closer mounted on the pull side of the door.

Parallel Arm

Closer mounted on the push side with the arm positioned generally parallel to the closed door.

Top Jamb

Closer body mounted to the frame on the push side.

The 2701 supports top-jamb applications with reveals up to approximately:

3"

Non-Handed Design

The 2701 is:

Non-Handed

It can be installed on compatible:

• Left Hand

• Right Hand

• Left Hand Reverse

• Right Hand Reverse

doors.

Rack-and-Pinion Construction

The 2701 uses a:

Full Rack-and-Pinion Mechanism

This proven commercial closer design provides dependable hydraulic control and smooth operation.

Full Plastic Cover

The 2701 is supplied with a:

Full Plastic Cover

The cover provides a finished appearance over the closer body and adjustment components.

Door Applications

Suitable for compatible:

• Hollow metal doors

• Wood doors

• Aluminum doors

• Commercial interior doors

• Commercial exterior doors

• Institutional openings

Accessibility

The adjustable Size 1–6 spring allows the closer to be configured for applicable barrier-free openings.

ACCENTRA lists the 2700 Series as meeting applicable requirements of:

ANSI/BHMA A117

when properly selected and adjusted.

Actual opening force must be verified in the field.

Fire Door Applications

The 2701 is:

• UL listed

• cUL listed

• UL 10C compliant

It may be used on properly listed fire-door assemblies when installed in accordance with the complete opening requirements.

Optional Arm Configurations

Additional ACCENTRA 2700 Series arms are available for applications requiring:

• Hold-open operation

• Heavy-duty parallel-arm operation

• Holder/stop functions

• Special commercial applications

Optional arms are sold separately unless specifically included.

Common Applications

Ideal for:

• Schools

• Hospitals

• Healthcare facilities

• Office buildings

• Retail facilities

• Government buildings

• Airports

• Institutional buildings

• Commercial buildings

• Hollow metal doors

• Wood doors

• Aluminum doors

Product Specifications

Brand: ACCENTRA
Manufacturer: ASSA ABLOY
Series: 2700
Model: 2701
Part Number: 2701 689
Product Type: Architectural Surface-Mounted Door Closer
Function: Non-Hold-Open
Spring Power: Adjustable Size 1–6
Grade: ANSI/BHMA A156.4 Grade 1
Handing: Non-Handed
Mounting: Regular / Parallel Arm / Top Jamb
Top Jamb Reveal: Up to Approx. 3"
Mechanism: Full Rack and Pinion
Body Material: Aluminum
Backcheck: Adjustable
Closing Speed: Adjustable
Latch Speed: Adjustable
Cover: Full Plastic Cover Included
Finish: 689 Aluminum Painted
UL Listed: Yes
cUL Listed: Yes
UL 10C: Yes
Accessibility: ANSI/BHMA A117 Compatible When Properly Adjusted
Warranty: 10-Year Limited
Approximate Shipping Weight: 6.5 lbs.

What's Included

Standard package includes:

• ACCENTRA 2701 closer body

• Standard arm assembly

• Full plastic cover

• Regular-arm mounting hardware

• Parallel-arm mounting hardware

• Top-jamb mounting hardware

• Sleeve nuts

• Installation hardware

Not Included Unless Specifically Stated

• Hold-open arm

• Heavy-duty arm

• Holder/stop arm

• Auxiliary door stop

• Door

• Frame

• Installation labor

Important Ordering Information

Before ordering, verify:

• Model 2701

• Adjustable Size 1–6 requirement

• Non-hold-open function

• Door width and weight

• Door material

• Mounting configuration

• Top-jamb reveal

• Required finish

• Accessibility requirements

• Fire-rating requirements

• Optional arm requirements

Important

The 2701 is the non-hold-open version of the ACCENTRA 2700 Series.

For a comparable hold-open configuration, use the ACCENTRA 2711 Series.
