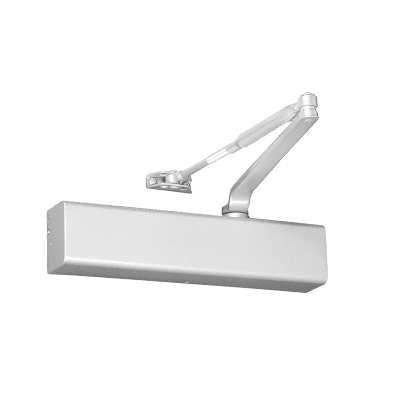

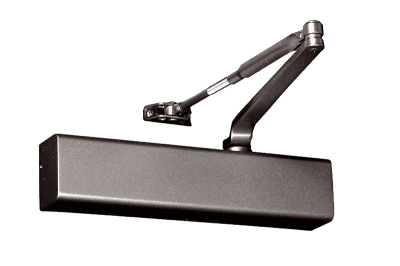

Provide dependable commercial door control with the ACCENTRA 3301 Architectural Door Closer.

Part of the ACCENTRA 3300 Series, the 3301 is a Grade 1, non-hold-open surface-mounted door closer with adjustable spring power from Size 1 through Size 6, a slim-line cover, adjustable backcheck, and independent sweep and latch-speed controls.

Designed for demanding commercial and institutional openings, the 3301 is available with multiple arm configurations and architectural finishes.

Key Features

• Genuine ACCENTRA / ASSA ABLOY

• Model 3301

• ACCENTRA 3300 Series

• Non-Hold-Open

• Adjustable spring power Size 1–6

• ANSI/BHMA A156.4 Grade 1

• Non-handed

• Full rack-and-pinion construction

• Aluminum closer body

• Slim-line molded plastic cover

• Adjustable backcheck

• Adjustable sweep / closing speed

• Adjustable latch speed

• Optional delayed action

• Regular-arm mounting

• Parallel-arm mounting

• Top-jamb mounting

• Standard tri-pack configuration available

• Heavy-duty and specialty arms available

• Multiple architectural finishes

• Suitable for commercial interior and exterior doors

Adjustable Size 1–6

The 3301 provides adjustable spring power covering:

Size 1 through Size 6

This broad range allows the closer to be adjusted for different:

• Door widths

• Door weights

• Interior or exterior applications

• Mounting positions

• Wind conditions

• Closing-force requirements

• Accessibility requirements

Non-Hold-Open Function

The 3301 is designed as a:

Non-Hold-Open Door Closer

After the door is opened and released, the closer automatically returns the door toward the closed and latched position.

This makes the 3301 well suited for:

• Commercial entrances

• Corridors

• Institutional doors

• Fire-door applications where properly listed

• Office doors

• School doors

• Healthcare facilities

Slim-Line Cover

The 3301 includes a:

Slim-Line Molded Plastic Cover

The streamlined cover conceals the closer body and adjustment components while providing a clean architectural appearance.

Adjustable Backcheck

The adjustable backcheck increases resistance as the door approaches the fully open position.

This helps reduce stress on:

• Door

• Frame

• Hinges

• Closer

• Adjacent walls

Important

Backcheck is not a substitute for a mechanical door stop.

Adjustable Sweep Speed

The sweep-speed valve controls the main portion of the closing cycle.

This allows the installer to regulate how quickly the door moves toward the latch range.

Adjustable Latch Speed

A separate latch-speed valve controls the final portion of the closing cycle.

Proper adjustment helps ensure the door closes and latches without excessive slamming.

Optional Delayed Action

The 3301 can be ordered with:

DL – Delayed Action

Delayed action slows the initial portion of the closing cycle to provide additional passage time.

This can be useful in:

• Healthcare facilities

• Accessibility applications

• Schools

• Institutional buildings

Mounting Options

Standard Tri-Pack

Supports:

• Regular Arm

• Parallel Arm

• Top Jamb

TJ3301

Extended top-jamb configuration for deeper reveals.

PR3301

Parallel rigid-arm configuration for demanding push-side applications.

3381 / PA3381

Low-profile arm configurations are available for compatible applications.

UNI Stop™ Options

Compatible 3301 configurations are available with:

ACCENTRA UNI Stop™

for applications requiring an integrated stopping function.

Holder / Stop Options

Related 3300 Series stop configurations can provide integrated door stopping for specialty applications.

Verify the exact model and arm package before ordering.

Fire-Door Applications

Non-hold-open 3301 configurations are suitable for applicable listed fire-door openings when installed as part of the complete approved assembly.

Always verify:

• Door label

• Frame label

• Closer listing

• Hardware

• Installation requirements

Door Applications

Suitable for compatible:

• Hollow metal doors

• Wood doors

• Aluminum doors

• Commercial interior doors

• Exterior commercial doors

• Institutional openings

Ideal for:

• Schools

• Hospitals

• Healthcare facilities

• Government buildings

• Office buildings

• Airports

• Retail facilities

• Institutional buildings

• Commercial entrances

• High-traffic corridors

Product Specifications

Brand: ACCENTRA
Manufacturer: ASSA ABLOY
Series: 3300
Model: 3301
Product Type: Architectural Surface-Mounted Door Closer
Function: Non-Hold-Open
Spring Power: Adjustable Size 1–6
Grade: ANSI/BHMA A156.4 Grade 1
Handing: Non-Handed
Mechanism: Rack and Pinion
Cover: Slim-Line Plastic
Backcheck: Adjustable
Sweep Speed: Adjustable
Latch Speed: Adjustable
Delayed Action: Optional
Mounting: Regular / Parallel / Top Jamb

What's Included

Depending on configuration:

• ACCENTRA 3301 closer body

• Slim-line cover

• Selected arm assembly

• Mounting brackets

• Installation fasteners

Not Included Unless Specifically Stated

• Hold-open arm

• Specialty stop arm

• Auxiliary door stop

• Door

• Frame

• Installation labor

Important Ordering Information

Before ordering, verify:

• Model 3301

• Door size and weight

• Door material

• Mounting configuration

• Top-jamb reveal

• Required finish

• Delayed-action requirement

• Specialty arm requirement

• Fire-rating requirements
