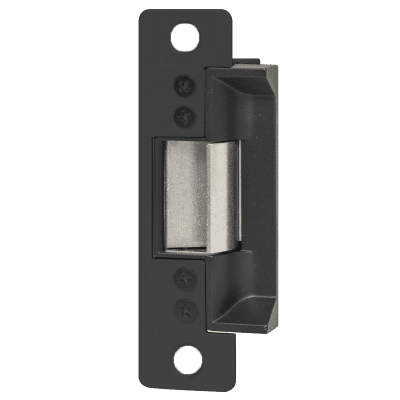

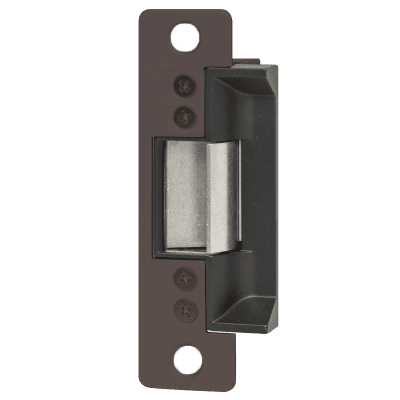

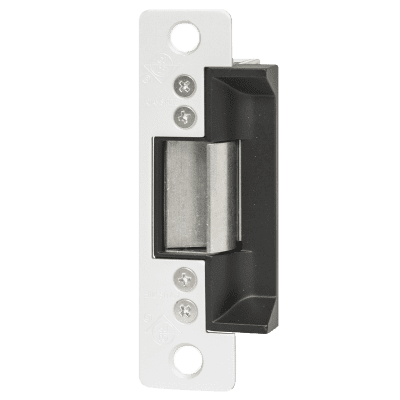

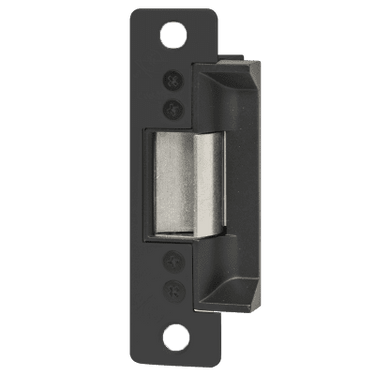

Add dependable electronic access control to commercial door openings with the Adams Rite 7100 Series Electric Strike.

Designed for use with compatible Adams Rite deadlatches and cylindrical locksets, the 7100 electrically releases the latchbolt, allowing the door to open without manually retracting the latch with a key, lever, or paddle.

The 1-1/4" x 4-7/8" flat faceplate with radius corners is particularly well suited for commercial aluminum storefront frames while the compact strike body allows installation in space-limited jamb conditions.

Key Features

• Commercial-grade electric strike

• 1-1/4" x 4-7/8" faceplate

• Flat faceplate with radius corners

• Designed for commercial access-control systems

• Compatible with 1/2" to 5/8" latchbolt projection

• Works with compatible Adams Rite deadlatches

• Compatible with many cylindrical latchsets

• Stainless steel bolt-retaining keeper

• Compact body fits many aluminum, hollow metal, and wood jamb applications

• Electrically releases the latch without retracting the latchbolt

• Non-handed design

• Field configurable for Fail-Secure or Fail-Safe operation

• Ideal for storefront, office, institutional, and controlled-access openings

Compatible Locking Hardware

The Adams Rite 7100 Series is designed for compatible:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4700 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Compatible cylindrical locksets

• Latchbolts with 1/2" to 5/8" projection

Product Specifications

Manufacturer: Adams Rite
Series: 7100 Series
Model: 7100
Product Type: Electric Strike
Faceplate Size: 1-1/4" x 4-7/8"
Faceplate Style: Flat with Radius Corners
Case Size: 1" x 3-3/8" x 1-5/8" Deep
Strike Opening: 5/8" x 1-7/16" x 1/2" Deep
Latchbolt Projection: 1/2" to 5/8"
Keeper: Stainless Steel
Handing: Non-Handed
Operation: Electrically Released
Fail Mode: Field Convertible Fail-Secure / Fail-Safe
Application: Commercial Access Control
Door/Frame Applications: Aluminum, Hollow Metal or Wood

How It Works

When the electric strike receives the appropriate access-control signal, the strike keeper releases the latchbolt. The user can then open the door without operating the lock itself.

This makes the 7100 ideal for integration with:

• Card readers

• Keypads

• Request-to-enter systems

• Intercom systems

• Access-control panels

• Remote release buttons

• Other compatible commercial access-control equipment

Radius-Corner Faceplate

The 7100 model features radius corners on its 1-1/4" x 4-7/8" faceplate.

For installations requiring the same general faceplate dimensions with square corners, consider the Adams Rite 7140 Electric Strike.

Important Ordering Information

Before ordering, verify:

• Existing lock or deadlatch model

• Latchbolt projection

• Required voltage

• Fail-Secure or Fail-Safe operation

• Faceplate finish

• Door and frame preparation

• Required strike lip length

Different lip extensions may be required when the door thickness or jamb configuration differs from a standard commercial opening.
