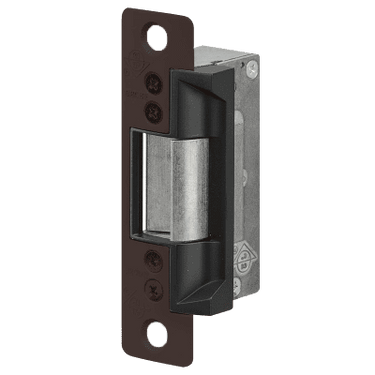

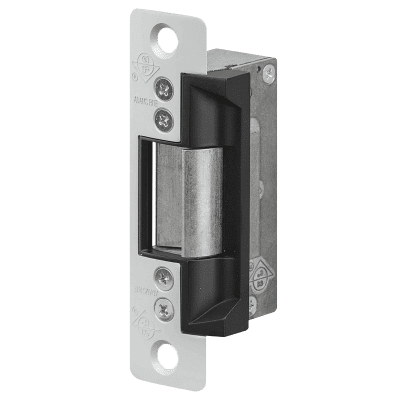

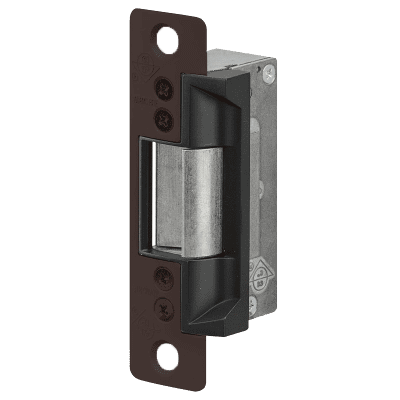

Add dependable electronic access control to paired commercial entrances with the Adams Rite 7101 Electric Strike, specifically designed for installation in the inactive leaf of paired narrow-stile doors.

Unlike a conventional flat-face electric strike, the 7101 features a radiused 1-1/4" x 4-7/8" faceplate shaped to match the rounded nose of the inactive door leaf. This makes it an ideal solution for aluminum storefront double-door applications where the active leaf is equipped with a compatible Adams Rite deadlatch or cylindrical lock.

When electrically activated, the strike keeper releases the latchbolt, allowing controlled entry without mechanically retracting the latch with a key, lever, or paddle.

Key Features

• Designed for paired narrow-stile doors

• Mounts in the nose of the inactive door leaf

• Radiused faceplate matches narrow-stile door construction

• Faceplate size: 1-1/4" x 4-7/8"

• Commercial-grade electric strike

• Compatible with select Adams Rite deadlatches

• Compatible with suitable cylindrical locksets

• Accepts approximately 1/2" to 5/8" latchbolt projection

• Non-handed design

• Field convertible from Fail-Secure to Fail-Safe

• Compact body for narrow-stile applications

• Ideal for commercial access-control systems

• Available in multiple voltage and finish configurations

Compatible Locking Hardware

The Adams Rite 7101 is designed for use with compatible:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4700 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Compatible cylindrical locksets

• Latchbolts with approximately 1/2" to 5/8" projection

Product Specifications

Manufacturer: Adams Rite
Series: 7100 Series
Model: 7101
Product Type: Electric Strike
Application: Paired / Double Narrow-Stile Doors
Mounting Location: Inactive Door Leaf
Faceplate Size: 1-1/4" x 4-7/8"
Faceplate Style: Radiused
Case Size: Approximately 1" W x 3-3/8" H x 1-5/8" D
Strike Opening: Approximately 5/8" x 1-7/16" x 1/2" Deep
Latchbolt Projection: 1/2" to 5/8"
Handing: Non-Handed
Operation: Electrically Released
Fail Mode: Field Convertible Fail-Secure / Fail-Safe
Application Type: Commercial Access Control

Designed for Narrow-Stile Double Doors

The defining feature of the Adams Rite 7101 is its specially curved faceplate. The strike installs into the inactive leaf of a pair of narrow-stile doors, allowing the radiused faceplate to conform to the nose of the door.

This configuration is commonly used on:

• Aluminum storefront double doors

• Retail entrances

• Office buildings

• Commercial facilities

• Controlled-access entrances

• Institutional buildings

• Commercial glass and aluminum door systems

Access Control Applications

The 7101 can be integrated with compatible:

• Card readers

• Keypads

• Access-control panels

• Intercom systems

• Remote release buttons

• Credential readers

• Building access-control systems

7101 vs. 7100

7101: Radiused faceplate designed to mount in the nose of an inactive narrow-stile door leaf.

7100: Flat faceplate with radius corners designed for conventional flat frame or jamb preparations.

Selecting the correct model is important because the 7101 faceplate is specifically shaped for paired narrow-stile door applications.

Important Ordering Information

Before ordering, verify:

• Strike mounts in the inactive leaf of a paired door opening

• Existing door has a narrow-stile configuration

• Radiused faceplate is required

• Existing latch or deadlatch model

• Latchbolt projection

• Required voltage

• AC or DC operation

• Fail-Secure or Fail-Safe requirements

• Required finish

Lip extension kits are not typically used with the 7101, so door and strike dimensions should be confirmed before ordering.
