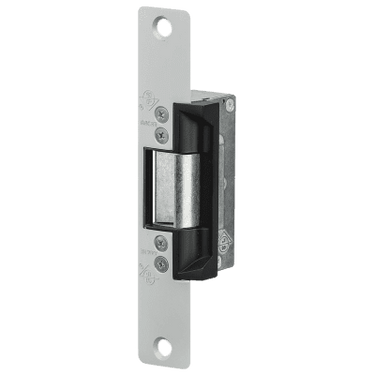

Upgrade an existing narrow-stile door opening to electronic access control with the Adams Rite 7131 Electric Strike, featuring an oversized 1-1/4" x 6-7/8" radiused conversion faceplate.

The 7131 is specifically designed for paired narrow-stile aluminum doors, mounting in the radiused nose of the inactive leaf. Its extended faceplate helps cover the existing strike preparation when converting an opening from an Adams Rite MS® pivoted-bolt deadlock to a compatible deadlatch and electric strike system.

Available in 313 Dark Bronze Anodized or 628 Clear Anodized Aluminum finishes.

Key Features

• Adams Rite 7131 Electric Strike

• Part of the commercial 7100 Series

• 1-1/4" x 6-7/8" oversized faceplate

• Radiused faceplate for paired narrow-stile doors

• Designed for installation in the inactive door leaf

• Ideal for MS® deadlock-to-deadlatch conversions

• Extended faceplate helps cover existing MS deadlock strike preparation

• Compatible with select Adams Rite deadlatches

• Accepts approximately 1/2" to 5/8" latchbolt projection

• Non-handed design

• Commercial-grade electric strike construction

• Fail-Secure / Fail-Safe capability depending on configuration

• Multiple voltage configurations available

• Designed for commercial access-control applications

Finish Options

313 – Dark Bronze Anodized

Dark bronze anodized finish for coordinating with dark bronze storefront doors, frames, and architectural hardware.

628 – Clear Anodized Aluminum

Clear anodized aluminum finish for matching standard aluminum storefront entrances and commercial door systems.

Conversion Application

The 7131 is especially useful when an existing aluminum storefront opening was originally prepared for an Adams Rite MS® pivoted-bolt deadlock.

The larger 6-7/8" faceplate helps cover the existing MS strike preparation while allowing the opening to be converted to a compatible deadlatch and electrically controlled strike.

This can reduce the amount of frame modification required when adding electronic access control to an existing storefront entrance.

Designed for Paired Narrow-Stile Doors

Unlike the flat-face 7130, the 7131 has a radiused faceplate designed to follow the curved nose of the inactive leaf in a pair of narrow-stile aluminum doors.

7130 vs. 7131

Adams Rite 7130

• 1-1/4" x 6-7/8"

• Flat faceplate with radius corners

• Primarily used in jamb applications

Adams Rite 7131

• 1-1/4" x 6-7/8"

• Fully radiused faceplate

• Designed for the inactive leaf of paired narrow-stile doors

Compatible Locking Hardware

Designed for use with compatible:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Compatible Adams Rite narrow-stile deadlatches

• Compatible cylindrical latchsets

• Latchbolts with approximately 1/2" to 5/8" projection

Product Specifications

Manufacturer: Adams Rite
Series: 7100 Series
Model: 7131
Product Type: Electric Strike
Faceplate Size: 1-1/4" x 6-7/8"
Faceplate Shape: Radiused
Application: Narrow-Stile Paired Doors
Mounting Location: Inactive Door Leaf
Conversion Use: MS® Deadlock to Deadlatch
Latchbolt Projection: 1/2" to 5/8"
Handing: Non-Handed
Finish Options: 313 Dark Bronze or 628 Clear Anodized Aluminum
Application Type: Commercial Access Control

Available Electrical Configurations

Depending on the specific part-number configuration, the Adams Rite 7131 is available in:

• 12 Volt

• 16 Volt

• 24 Volt

• AC or DC configurations

• Fail-Secure configurations

• Fail-Safe configurations

Verify the required electrical configuration before ordering.

Important Installation Note

Lip extension kits are not available for the Adams Rite 7131 because of its radiused faceplate design.

Always verify the existing door profile, strike preparation, latchbolt projection, voltage, and required finish before ordering.

Ideal Applications

• Aluminum storefront double doors

• Retail entrances

• Office buildings

• Commercial facilities

• Schools and universities

• Healthcare facilities

• Government buildings

• Existing MS® deadlock conversions

• Electronic access-control upgrades
