Adams Rite 7200 Series Fire-Rated Electric Strike | 7240 or 7270 | Satin Stainless

Provide secure electronic access control without compromising a fire-rated opening with the Adams Rite 7200 Series Fire-Rated Electric Strike.

Designed specifically for hollow metal door jambs, the 7200 Series combines reliable electric strike operation with a UL 10C 3-hour fire rating when used in the required Fail-Secure configuration.

Choose the 7240 for cylindrical locksets with up to a 5/8" latchbolt projection, or the 7270 for compatible mortise or cylindrical locksets with up to a 3/4" latchbolt projection.

Both models feature a 1-1/4" x 4-7/8" flat, square-corner faceplate in 630 / US32D Satin Stainless Steel.

Key Features

• Adams Rite 7200 Series

• Fire-rated commercial electric strike

• Designed for hollow metal door jambs

• UL 10C – 3-hour fire rated

• CAN/ULC-S104 fire door conformant

• Fire-rated operation in Fail-Secure mode

• 1-1/4" x 4-7/8" faceplate

• Flat faceplate with square corners

• 630 / US32D Satin Stainless Steel

• Stainless steel keeper and strike lip

• Non-handed design

• Available in 12V or 24V AC/DC

• Optional monitoring switches

• Lip extension options available

• Designed for commercial access-control systems

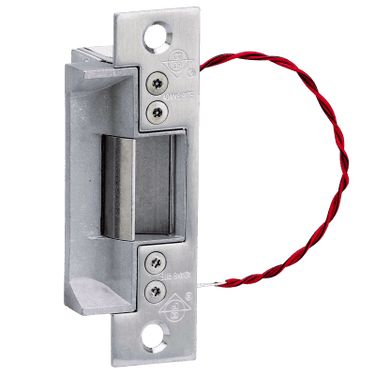

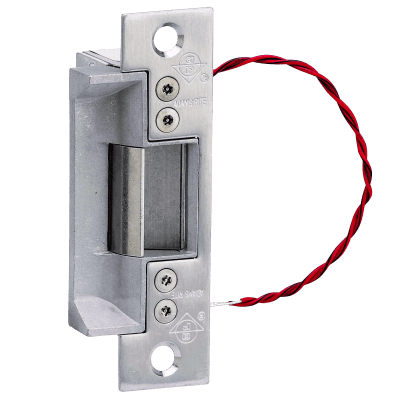

7240 – Cylindrical Lock Electric Strike

The Adams Rite 7240 is designed for commercial hollow-metal openings using compatible cylindrical locksets.

7240 Specifications

Lock Type: Cylindrical
Maximum Latchbolt Projection: 5/8"
Case Size: 1" x 3-3/8" x 1-5/8" Deep
Strike Opening: 5/8" x 1-7/16" x 9/16" Deep
Faceplate: 1-1/4" x 4-7/8"
Faceplate Style: Flat – Square Corners
Application: Hollow Metal Jamb
Fire Rating: Up to 3 Hours – Fail-Secure

The 7240 is an excellent choice for fire-rated openings equipped with commercial cylindrical lever or knob locksets.

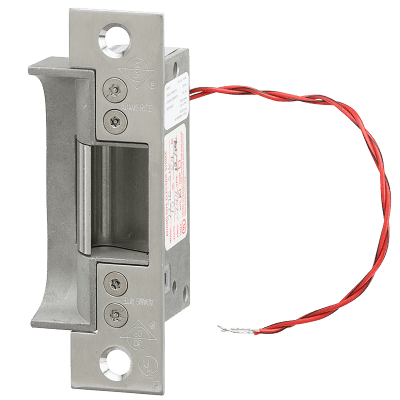

7270 – Mortise / Cylindrical Lock Electric Strike

The Adams Rite 7270 provides a larger strike opening for compatible mortise or cylindrical locksets with up to a 3/4" latchbolt projection.

7270 Specifications

Lock Type: Mortise or Cylindrical
Maximum Latchbolt Projection: 3/4"
Deadbolt Compatibility: No Deadbolt
Case Size: 1" x 3-3/8" x 1-7/8" Deep
Strike Opening: 3/4" x 1-7/16" x 5/8" Deep
Faceplate: 1-1/4" x 4-7/8"
Faceplate Style: Flat – Square Corners
Application: Hollow Metal Jamb
Fire Rating: Up to 3 Hours – Fail-Secure

For locks with a 3/4" latch throw, a minimum 1/8" door gap is required.

Electrical Specifications

12VDC

• 0.33 Amp

• Continuous or intermittent duty

• Quiet operation

12VAC

• 1.42 Amp

• Intermittent duty

• Audible buzz when energized

24VDC

• 0.17 Amp

• Continuous or intermittent duty

• Quiet operation

24VAC

• 0.74 Amp

• Intermittent duty

• Audible buzz when energized

Fail-Secure Operation

The Adams Rite 7200 Series is supplied Fail-Secure, meaning the strike remains locked when electrical power is removed.

Power is applied to release the keeper and permit entry.

For a fire-rated opening, the strike must be used in its approved Fail-Secure configuration.

Optional Monitoring

Monitored versions are available with two Form C monitoring switches.

These switches can provide status information indicating:

• Whether the latchbolt is engaged in the strike

• Whether the strike keeper/jaw is blocked or released

This makes monitored models well suited for integration with commercial access-control and building-security systems.

Standard Strike Lip

The standard strike lip is designed for a typical 1-3/4" thick door that closes flush with the jamb edge.

Standard configuration:

00 – Door Centerline to Jamb Edge: 1-1/16" or Less

An extended lip configuration is also available for certain interior-frame applications:

50 – 1-3/8"

Fire-rated 7200 Series lip extensions must be properly selected for the opening.

Standard Package

Each strike is supplied with:

• Adams Rite 7200 Series electric strike

• Mounting screws

• Mounting clips

• Adhesive mounting shims

Ideal Applications

• Fire-rated commercial doors

• Hollow metal frames

• Office buildings

• Schools and universities

• Hospitals and healthcare facilities

• Government buildings

• Assisted-living facilities

• Industrial facilities

• Controlled-access corridors

• Fire-rated stairwell openings

• Card-reader controlled doors

Important Ordering Information

Before ordering, verify:

• 7240 or 7270 model

• Existing lock type

• Latchbolt projection

• Required voltage

• AC or DC power

• Standard or monitored function

• Door thickness

• Jamb configuration

• Required lip dimension

• Fire-rating requirements

The 7270 is not designed for locks using a deadbolt.
