Heavy-Duty Commercial Electric Strike | Field-Selectable Fail-Safe / Fail-Secure | Adjustable Stainless Steel Keeper | Deadlatch & Cylindrical Lock Compatibility

Upgrade commercial door security with the Adams Rite 7410 UltraLine Electric Strike, a heavy-duty, Grade 1 electric strike designed for reliable remote release of compatible Adams Rite deadlatches and cylindrical locksets.

The 7410 Series features an extended 1-7/16" x 7-15/16" faceplate with rounded corners, making it suitable for properly prepared aluminum, hollow metal, and wood door jambs.

Engineered for high-performance commercial applications, the UltraLine 7410 incorporates an adjustable stainless steel keeper and preload-capable construction, allowing the strike to release electrically under up to 25 pounds of door pressure.

Its compact body requires only 1-1/16" of mounting depth, making it useful for both new installations and compatible electric-strike retrofits.

The strike provides over 1,500 pounds of static holding force in fail-secure mode and can be configured for either fail-secure or fail-safe operation during installation.

Operating on field-selectable 12V DC or 24V DC power, the Adams Rite 7410 is compatible with properly designed commercial access-control systems, including keypads, card readers, intercom systems, and remote door-release controls.

Available in Clear Anodized Aluminum (628), Dark Bronze Anodized (313), Black Anodized (335), and Satin Stainless Steel (630) finishes.

Key Features

• Grade 1 Commercial Electric Strike: Heavy-duty construction for commercial access-control applications.

• UltraLine Preload-Capable Design: Releases electrically under up to 25 lb of preload.

• Over 1,500 lb Holding Force: High-strength stainless steel keeper in fail-secure configuration.

• Field-Selectable Fail-Safe / Fail-Secure: Configure operation to suit the approved access-control system.

• 12/24V DC Operation: Compatible with appropriately rated low-voltage DC power supplies.

• Non-Handed Design: Suitable for left- or right-hand installations.

• Adjustable Stainless Steel Keeper: Helps accommodate installation tolerances and door preload.

• Compact Strike Body: Only 1-1/16" deep.

• Extended Faceplate: 1-7/16" wide x 7-15/16" long.

• Deadlatch Compatibility: Designed for Adams Rite 4500 and 4900 Series deadlatches.

• Cylindrical Lock Compatibility: Accepts compatible cylindrical latchbolts.

• Latchbolt Projection: Accommodates 1/2" to 5/8" latchbolt projection.

• Multiple Frame Materials: Suitable for properly prepared aluminum, hollow metal, and wood jambs.

• Architectural Finishes: Available in aluminum, dark bronze, black, and satin stainless steel.

• Quick-Connect Wiring: Plug-in voltage adapters simplify installation.

• Outdoor-Suitable Listing: Manufacturer identifies UL 1034 burglary-resistant listing and suitability for outdoor use.

• Optional Monitoring: Separate 7410M model provides latch and solenoid status monitoring.

Product Specifications

• Manufacturer: Adams Rite

• Parent Company: ASSA ABLOY

• Model: 7410

• Series: UltraLine 7400 Series

• Product Type: Electric Strike

• Grade: ANSI/BHMA A156.31 Grade 1

• Faceplate Dimensions: 1-7/16" W x 7-15/16" H

• Faceplate Style: Flat with Radius Corners

• Strike Body Dimensions: 1-13/32" x 3-3/8" x 1-1/16" Deep

• Operating Voltage: 12V DC / 24V DC

• 12V DC Current Draw: 440mA

• 24V DC Current Draw: 230mA

• 16V DC Option: Requires Separate VA7400-16VDC Adapter

• Electrical Operation: Fail-Safe or Fail-Secure, Field Selectable

• Holding Force: Over 1,500 lb in Fail-Secure Mode

• Preload Release Capability: Up to 25 lb

• Keeper: Adjustable Stainless Steel

• Strike Opening: 5/8" Adjustable x 1-7/16" x 1/2" Deep

• Latchbolt Projection: 1/2"–5/8"

• Handing: Non-Handed

• Compatible Door Frames: Aluminum, Hollow Metal, and Wood

• Standard Door Thickness Relationship: 1-3/4" Door Closing Flush with Jamb Edge

• Available Finishes: 313, 335, 628, 630

• Standard Monitoring: Not Included

• Monitored Version: 7410M, Available Separately

• Certifications: UL 1034, UL 294, ULC-S319, ANSI/BHMA A156.31 Grade 1

Available Finishes

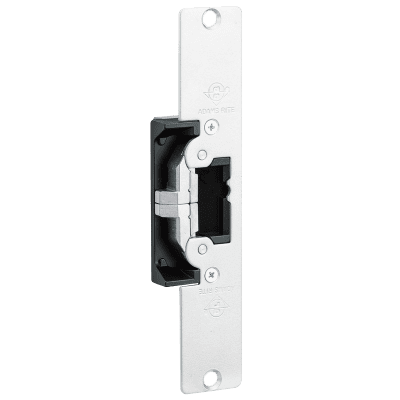

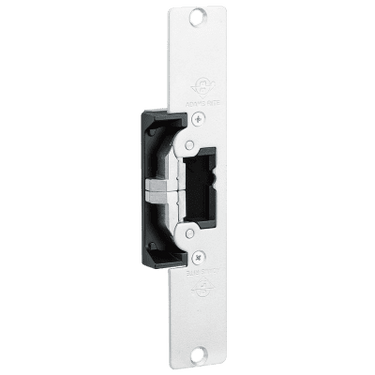

7410-628 – Clear Anodized Aluminum

• SKU: 7410-628

• Finish: 628 / US28

• Color: Clear Anodized Aluminum

Ideal for aluminum storefront entrances, commercial offices, and architectural door frames requiring an aluminum finish.

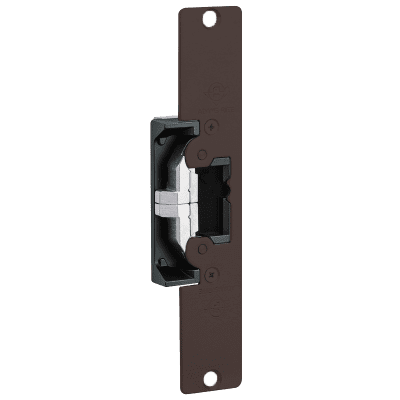

7410-313 – Dark Bronze Anodized

• SKU: 7410-313

• Finish: 313

• Color: Dark Bronze Anodized

Suitable for storefront entrances, office buildings, and commercial door frames featuring dark bronze hardware.

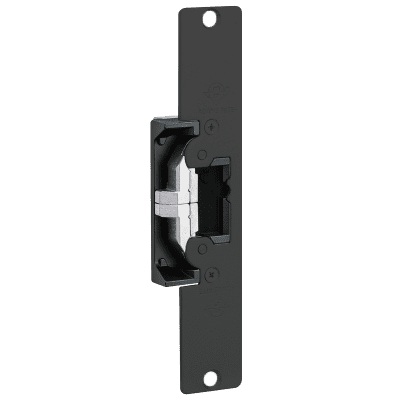

7410-335 – Black Anodized

• SKU: 7410-335

• Finish: 335

• Color: Black Anodized

Provides a coordinated appearance with black storefront framing and compatible black architectural hardware.

7410-630 – Satin Stainless Steel

• SKU: 7410-630

• Finish: 630 / US32D

• Color: Satin Stainless Steel

Ideal for commercial and institutional installations requiring a satin stainless appearance.

Compatible Door Hardware

The Adams Rite 7410 is designed for compatible latch configurations, including:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Adams Rite 4700 Series Deadlatches (Discontinued)

• Compatible Cylindrical Locksets

• Compatible Commercial Lever Locksets

• Latches with 1/2" to 5/8" Projection

The strike is not intended as a universal replacement for mortise-lock deadbolts or rim exit-device strikes. Confirm latch type and frame preparation before ordering.

How the Adams Rite 7410 Works

Electronic Door Release

When an authorized access-control device activates the strike, the electrical solenoid changes the locking condition of the adjustable keeper.

The latchbolt can then pass through the strike opening, allowing the door to be opened without retracting the latch using the lever or key.

Fail-Secure Operation

In fail-secure mode, the strike remains secured when electrical power is removed.

Applying the correct voltage releases the keeper.

Fail-Safe Operation

In fail-safe mode, the strike releases when electrical power is removed.

The appropriate operating mode must be selected according to the approved access-control and emergency-egress design.

Adjustable Keeper

The stainless steel keeper includes adjustment features to compensate for appropriate door and frame tolerances.

This design helps the strike operate when pressure is exerted against the latchbolt from door seals, building air pressure, or minor alignment conditions.

Standard Package Includes

• Adams Rite 7410 Electric Strike Assembly

• Selected Architectural Faceplate

• Mounting Screws

• Mounting Tabs

• Adhesive Mounting Shims

• Adjustable Keeper Shim Pack

• Plug-In Voltage Adapters for 12V and 24V DC Operation

Electric lock power supplies, door controllers, deadlatches, and access-control readers are sold separately.

Optional Accessories

• 7410M Monitored Electric Strike: Includes additional latch engagement and solenoid status monitoring switches.

• Lip Extension Kits: Accommodate compatible applications with different jamb-to-door relationships.

• VA7400-16VDC: Optional adapter for 16V DC operation.

• ElectroLynx Adapter: Supports compatible ElectroLynx wiring systems.

• Adams Rite Power Supplies: Available separately for properly designed electric-lock installations.

Recommended Applications

• Aluminum Storefront Entrances

• Hollow Metal Commercial Doors

• Commercial Wood Door Frames

• Office Buildings

• Schools and Universities

• Hospitals and Healthcare Facilities

• Government Facilities

• Warehouses and Distribution Centers

• Retail Stores

• Secured Employee Entrances

• Keypad Access-Control Systems

• Card Reader Access-Control Systems

• Video Intercom Door Release

• Commercial Door Security Retrofits

Installation Considerations

• Verify the door's latchbolt projection is between 1/2" and 5/8".

• Confirm compatibility with the existing lock and door frame.

• Verify the 7-15/16" faceplate fits the prepared opening.

• Confirm adequate clearance for the 1-1/16" strike body depth.

• Select 12V or 24V DC operation using the appropriate voltage adapter.

• Select fail-safe or fail-secure operation according to the approved system design.

• Properly align the adjustable keeper with the latchbolt.

• Install additional lip extensions where required.

• Test normal door operation and release under expected conditions.

• Ensure the complete installation complies with applicable access-control, fire, and emergency-egress requirements.

Important: The standard 7410 does not include monitoring contacts. Order the 7410M if latch engagement and solenoid status outputs are required. The strike itself is not a substitute for required panic hardware or other mechanical egress equipment.

Why Choose the Adams Rite 7410 UltraLine?

The Adams Rite 7410 UltraLine Electric Strike combines Grade 1 security, compact construction, adjustable keeper technology, and field-selectable fail-safe or fail-secure operation.

With more than 1,500 pounds of static holding force, preload-capable release, 12/24V DC compatibility, and multiple architectural finishes, the 7410 provides a dependable electric-strike solution for commercial access-control installations.
