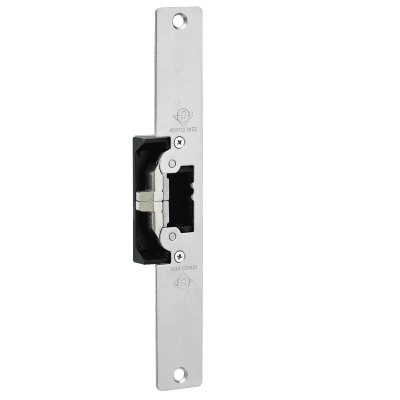

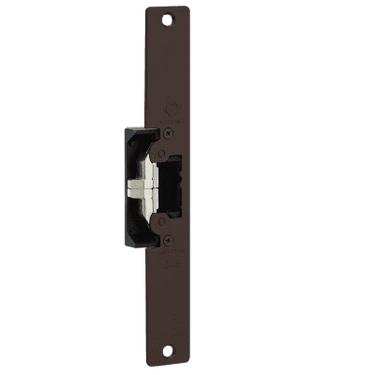

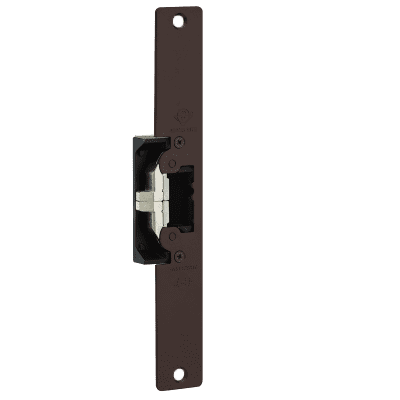

Upgrade commercial access-control openings with the Adams Rite 7411 UltraLine Electric Strike, featuring an extra-long 1-7/16" x 10-1/4" faceplate for wood-jamb applications requiring additional strike coverage.

Part of the premium UltraLine 7400 Series, the 7411 is engineered to operate even when pressure is being applied against the door. Its preload-capable design can electrically release under up to 25 lb of door preload, helping prevent binding caused by HVAC pressure, weatherstripping, door warping, closer pressure, or minor hardware misalignment.

The 7411 is designed for compatible Adams Rite 4500 and 4900 Series Deadlatches and cylindrical locksets with 1/2" to 5/8" latchbolt projection.

Key Features

• Adams Rite UltraLine 7411

• Extra-long 10-1/4" faceplate

• Faceplate width: 1-7/16"

• Flat faceplate with radius corners

• Designed for wood-jamb applications

• Preload-capable electric strike

• Releases under up to 25 lb of preload

• Over 1,500 lb holding force in Fail-Secure mode

• Adjustable stainless steel keeper

• Compatible with 1/2" to 5/8" latchbolt projection

• Field-selectable Fail-Secure or Fail-Safe

• Field-selectable 12VDC or 24VDC

• 16VDC capability with optional adapter

• Non-handed

• Monitored model available

• Commercial Grade 1 construction

• Suitable for demanding access-control applications

Product Specifications

Manufacturer: Adams Rite
Series: UltraLine 7400 Series
Model: 7411
Product Type: Preload-Capable Electric Strike
Application: Wood Jamb
Faceplate Size: 1-7/16" x 10-1/4"
Faceplate Style: Flat with Radius Corners
Case Size: Approximately 1-13/32" x 3-3/8" x 1-1/16" Deep
Latchbolt Projection: 1/2" to 5/8"
Keeper: Adjustable Stainless Steel
Preload Capability: Up to 25 lb
Holding Force: Over 1,500 lb in Fail-Secure Mode
Voltage: 12/24VDC Field Selectable
16VDC: Available with Optional Adapter
Function: Field-Selectable Fail-Secure / Fail-Safe
Handing: Non-Handed
Application Type: Commercial Access Control

Compatible Locking Hardware

Designed for compatible:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Adams Rite 4700 Series Deadlatches – discontinued

• Compatible cylindrical locksets

• Latchbolts with 1/2" to 5/8" projection

Extra-Long Faceplate

The distinguishing feature of the 7411 is its 10-1/4" extra-long faceplate.

This extended faceplate provides additional coverage compared with the 7410 and is well suited for retrofit applications or wood-jamb preparations requiring a longer strike plate.

7410 vs. 7411

Adams Rite 7410

• 1-7/16" x 7-15/16"

• Extended faceplate

• Wood-jamb applications

Adams Rite 7411

• 1-7/16" x 10-1/4"

• Extra-long faceplate

• Wood-jamb applications requiring additional coverage

Preload-Capable UltraLine Design

Preload is pressure being applied against the door before the strike releases.

Common causes include:

• HVAC pressure

• Positive or negative building pressure

• Weather seals

• Door closer pressure

• Door warping

• Door or frame misalignment

The UltraLine mechanism is engineered to release with up to 25 lb of preload, helping provide reliable operation where conventional electric strikes may bind.

Electrical Specifications

12VDC

Current Draw: Approximately 0.44A

24VDC

Current Draw: Approximately 0.23A

The standard strike includes field-selectable 12VDC and 24VDC operation.

16VDC

Current Draw: Approximately 0.46A

16VDC operation requires the optional VA7400-16VDC Adapter.

Fail-Secure / Fail-Safe

The 7411 can be field configured for either operating mode.

Fail-Secure

The strike remains locked when power is removed and releases when power is applied.

Fail-Safe

The strike releases when electrical power is removed.

Monitored Option – 7411M

The Adams Rite 7411M adds monitoring switches for access-control systems requiring hardware-status feedback.

The monitored configuration can provide indication of:

• Latchbolt engagement

• Locked/unlocked solenoid status

This is useful for security systems, access-control panels, and remotely monitored commercial openings.

Certifications & Listings

• UL 1034 Burglary-Resistant Listed

• Suitable for Outdoor Use

• UL 294

• ULC-S319

• ANSI/BHMA A156.31 Grade 1

• ANSI/BHMA A156.18

Ideal Applications

• Commercial wood jambs

• Office buildings

• Retail facilities

• Schools and universities

• Healthcare facilities

• Government buildings

• Commercial access-control systems

• Retrofit installations

• Card-reader entrances

• Keypad-controlled doors

• Remote-release openings

Important Ordering Information

Before ordering, verify:

• Existing lock or deadlatch model

• Latchbolt projection

• 10-1/4" faceplate requirement

• Door and jamb preparation

• Standard or monitored configuration

• Required architectural finish

• Required voltage
