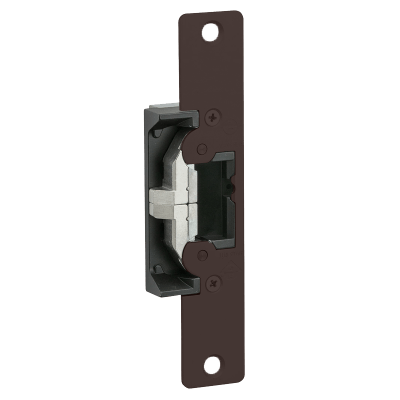

Upgrade an existing commercial aluminum entrance to electronic access control with the Adams Rite 7430 UltraLine Electric Strike, featuring an oversized 1-1/4" x 6-7/8" flat faceplate.

The 7430 is designed for aluminum jamb applications and is particularly useful when converting an opening from an Adams Rite MS® pivoted-bolt deadlock to a compatible deadlatch. The extended 6-7/8" faceplate helps cover the existing strike preparation, providing a clean and professional retrofit.

Part of the premium UltraLine 7400 Series, the 7430 can electrically release under up to 25 lb of door preload, helping prevent binding caused by HVAC pressure, weatherstripping, door warping, or minor alignment issues.

Key Features

• Adams Rite UltraLine 7430

• Designed for aluminum jambs

• 1-1/4" x 6-7/8" faceplate

• Flat faceplate with radius corners

• Oversized conversion-style faceplate

• Designed for MS® deadlock-to-deadlatch conversions

• Helps cover existing MS® strike preparations

• Releases under up to 25 lb of preload

• Over 1,500 lb holding force in Fail-Secure mode

• Adjustable stainless steel keeper

• Compatible with 1/2" to 5/8" latchbolt projection

• Field-selectable Fail-Secure / Fail-Safe

• Field-selectable voltage

• Non-handed design

• Monitored version available

• Lip extension kits available

• Outdoor rated

• ANSI/BHMA Grade 1

Product Specifications

Manufacturer: Adams Rite
Series: UltraLine 7400 Series
Model: 7430
Product Type: Preload-Capable Electric Strike
Application: Aluminum Jamb
Faceplate Size: 1-1/4" x 6-7/8"
Faceplate Style: Flat with Radius Corners
Case Size: 1-13/32" x 3-3/8" x 1-1/16" Deep
Strike Opening: 5/8" Adjustable x 1-7/16" x 1/2" Deep
Latchbolt Projection: 1/2" to 5/8"
Keeper: Adjustable Stainless Steel
Preload Capability: Up to 25 lb
Holding Force: Over 1,500 lb in Fail-Secure Mode
Voltage: 12/24VDC Field Selectable
16VDC: Available with Optional Adapter
Function: Field-Selectable Fail-Secure / Fail-Safe
Handing: Non-Handed
Application Type: Commercial Access Control

MS® Deadlock Conversion Application

One of the primary applications for the 7430 is converting an existing opening originally prepared for an Adams Rite MS® pivoted-bolt deadlock.

The larger 6-7/8" faceplate is designed to cover the existing strike cutout while allowing the opening to be upgraded to a compatible deadlatch and electric strike.

This makes the 7430 an excellent choice for:

• Existing aluminum storefront doors

• Access-control upgrades

• MS® deadlock conversions

• Retrofit installations

• Existing oversized strike preparations

Compatible Locking Hardware

The 7430 accepts compatible:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Adams Rite 4700 Series Deadlatches – discontinued

• Compatible cylindrical locksets

• Latchbolts with 1/2" to 5/8" projection

Preload-Capable UltraLine Design

Door pressure can prevent conventional electric strikes from releasing properly.

Common causes include:

• HVAC pressure

• Building pressure

• Weather seals

• Door warping

• Closer pressure

• Minor door or frame misalignment

The UltraLine 7430 is engineered to release electrically while experiencing up to 25 lb of preload, providing dependable access-control performance in demanding commercial environments.

Electrical Specifications

12VDC

Current Draw: 0.44A

24VDC

Current Draw: 0.23A

The standard strike provides field-selectable 12VDC or 24VDC operation.

16VDC

Current Draw: 0.46A

16VDC operation requires the optional VA7400-16VDC Adapter.

Fail-Secure / Fail-Safe

The 7430 can be field configured for either operating mode.

Fail-Secure

The strike remains locked when electrical power is removed and releases when power is applied.

Fail-Safe

The strike releases when electrical power is removed.

7430 vs. 7431

Adams Rite 7430

• 1-1/4" x 6-7/8"

• Flat faceplate with radius corners

• Designed for aluminum jambs

Adams Rite 7431

• 1-1/4" x 6-7/8"

• Fully radiused faceplate

• Designed to match the nose of the inactive leaf on paired narrow-stile doors

Both models are designed to help cover an existing strike opening when converting from an MS® pivoted-bolt deadlock to a deadlatch.

Optional Monitoring

The 7430M monitored version incorporates two Form C monitoring switches.

Monitoring provides status information for:

• Latchbolt engagement

• Locked/unlocked solenoid condition

This is ideal for access-control systems requiring confirmation of door hardware status.

Certifications & Listings

• UL 1034 Burglary-Resistant Listed

• Suitable for Outdoor Use

• UL 294

• ULC-S319

• ANSI/BHMA A156.31 Grade 1

• ANSI/BHMA A156.18

Standard Package

Includes:

• Adams Rite 7430 electric strike

• Mounting screws

• Mounting tabs

• Adhesive jamb shims

• Adjustable keeper shim pack

• 12VDC voltage adapter

• 24VDC voltage adapter

Ideal Applications

• Aluminum storefront entrances

• Commercial office buildings

• Retail facilities

• Schools and universities

• Healthcare facilities

• Government facilities

• Existing MS® deadlock openings

• Access-control retrofit projects

• Card-reader controlled entrances

• Keypad access systems

Important Ordering Information

Before ordering, verify:

• Existing lock or deadlatch

• 6-7/8" faceplate requirement

• Aluminum jamb preparation

• Latchbolt projection

• Required finish

• Standard or monitored configuration

• Required lip extension
