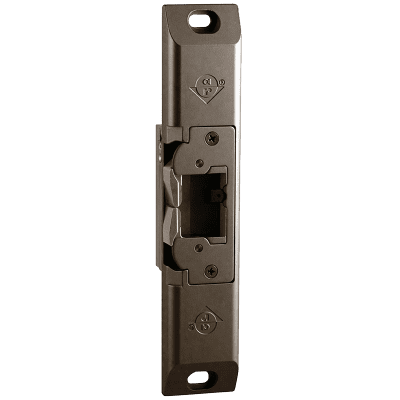

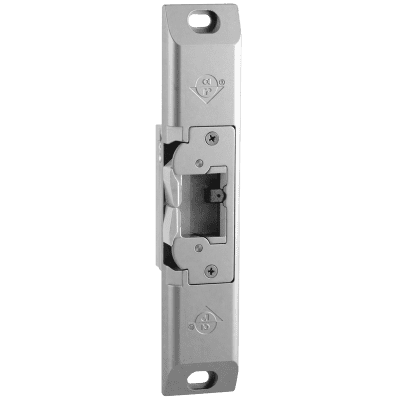

Add electronic access control to commercial openings equipped with a rim exit device using the Adams Rite 74R1 UltraLine Electric Strike.

The 74R1 is specifically designed for rim exit devices with a Pullman-style latchbolt up to 3/4" projection and no auxiliary deadlocking latch. Its semi-mortised design provides remote electrical release of the exit device latch without requiring operation of the panic hardware.

Built for demanding commercial applications, the 74R1 features a compact strike body, stainless steel bolt-retaining keeper, field-selectable voltage, and field-selectable Fail-Secure or Fail-Safe operation.

Key Features

• Adams Rite UltraLine 74R1

• Designed specifically for rim exit devices

• Accepts Pullman-style latchbolts up to 3/4" projection

• Semi-mortised electric strike

• Stainless steel bolt-retaining keeper

• Heavy-duty commercial construction

• Compact strike mechanism

• 12/24VDC field selectable

• Field-selectable Fail-Secure / Fail-Safe

• Non-handed design

• Standard and monitored versions available

• Multiple architectural finish options

• Suitable for outdoor applications

• Grade 1 commercial electric strike

• Ideal for commercial access-control systems

Designed for Rim Exit Devices

The Adams Rite 74R1 is designed for compatible rim panic and rim exit devices using a Pullman-style latchbolt with up to 3/4" projection.

Unlike the Adams Rite 7400 Series strikes used with deadlatches and cylindrical locks, the 74R1 is specifically engineered around rim exit device latch geometry.

Important Compatibility Note

The 74R1 is intended for rim exit devices without auxiliary deadlocking latchbolts.

It is not designed for Adams Rite 4500 or 4900 Series deadlatches.

Product Specifications

Manufacturer: Adams Rite
Series: UltraLine
Model: 74R1
Product Type: Electric Strike
Compatible Hardware: Rim Exit Devices
Latch Type: Pullman-Style Rim Exit Device Latch
Maximum Latchbolt Projection: 3/4"
Faceplate: Integral / Not Separate
Faceplate Size: Approximately 1-3/4" x 9"
Case Size: 1-13/32" x 3-3/8" x 1-1/16" Deep
Strike Opening: 5/8" x 1-7/16" x 9/16" Deep
Keeper: Stainless Steel
Voltage: 12/24VDC Field Selectable
16VDC: Optional Adapter Required
Function: Field Selectable Fail-Secure / Fail-Safe
Handing: Non-Handed
Application: Commercial Access Control

Electrical Specifications

12VDC

Current Draw: 0.44A

24VDC

Current Draw: 0.23A

The strike is field selectable between 12VDC and 24VDC.

16VDC

Current Draw: 0.46A

16VDC operation requires the optional VA7400-16VDC voltage adapter.

Fail-Secure / Fail-Safe Operation

The 74R1 can be field configured for either operating mode.

Fail-Secure

The strike remains locked when electrical power is removed and electrically releases when power is applied.

Fail-Safe

The strike releases when electrical power is removed.

This field-selectable design allows the installer to configure the strike based on access-control and code requirements.

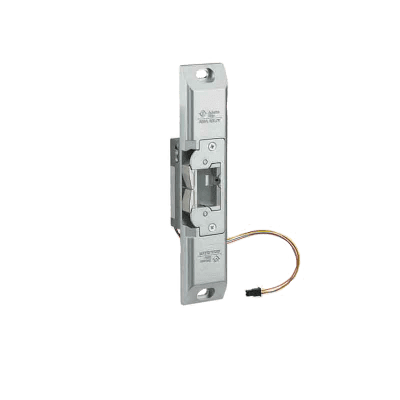

74R1M Monitored Version

The Adams Rite 74R1M adds monitoring capability for access-control systems requiring hardware-status feedback.

The monitored model includes two Form C monitoring switches that can provide indication of:

• Latchbolt engagement in the strike

• Locked/unlocked solenoid status

The 74R1M is ideal for security systems requiring confirmation that the exit device latch and electric strike are in the expected condition.

74R1 vs. 74R2

Adams Rite 74R1

• Designed for rim exit devices

• 3/4" latchbolt projection

• Larger strike opening for standard Pullman-style rim panic latches

Adams Rite 74R2

• Designed for narrow-stile rim exit devices

• 1/2" latchbolt projection

• Different strike geometry for smaller narrow-stile panic hardware

Always verify the latchbolt projection before selecting between the 74R1 and 74R2.

Certifications & Listings

• UL 1034 Burglary-Resistant Listed

• Suitable for Outdoor Use

• UL 294

• ULC-S319

• ANSI/BHMA A156.31 Grade 1

• ANSI/BHMA A156.18

Standard Package

Includes:

• Adams Rite 74R1 electric strike

• Mounting plate shims

• Mounting screws

• Installation instructions

Ideal Applications

• Commercial rim exit devices

• Panic hardware openings

• Retail entrances

• Office buildings

• Schools and universities

• Healthcare facilities

• Government buildings

• Industrial facilities

• Card-reader controlled entrances

• Keypad access systems

• Remote-release doors

• Exterior commercial openings

Important Ordering Information

Before ordering, verify:

• Exit device is a rim-style device

• Latchbolt is Pullman style

• Latchbolt projection does not exceed 3/4"

• Exit device does not use an incompatible auxiliary deadlocking latch

• Required finish

• Standard or monitored model

• Power supply requirements
