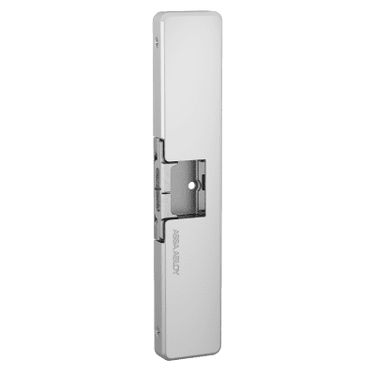

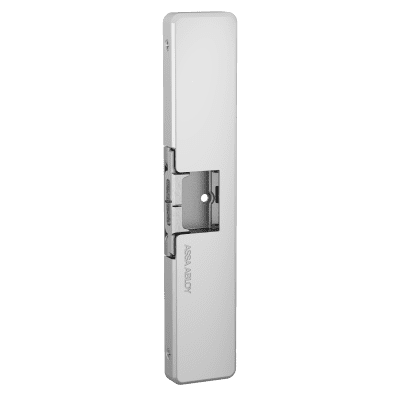

Add reliable electronic access control to commercial openings equipped with Adams Rite Starwheel or Interlocking rim exit devices using the Adams Rite 7800 Electric Strike.

The 7800 is a low-profile, surface-mounted electric strike designed specifically for compatible Adams Rite rim exit devices. Electrical activation releases the exit-device latch without requiring operation of the push bar, making it ideal for card-reader, keypad, intercom, and remote-release applications.

Its compact design features adjustable stainless steel keepers, field-selectable 12/24VDC operation, and field-selectable Fail-Secure or Fail-Safe operation.

Key Features

• Adams Rite 7800 Series Electric Strike

• Designed for Starwheel / Interlocking rim exit devices

• Compatible with Adams Rite 8700 Series

• Compatible with Adams Rite 8800 Series

• Compatible with EX88 Interlocking Rim Exit Devices

• Low-profile surface-mounted design

• Adjustable stainless steel keepers

• Over 1,500 lb holding force in Fail-Secure mode

• Dual-voltage 12/24VDC

• Field-selectable Fail-Secure / Fail-Safe

• Non-handed

• Optional latchbolt monitoring

• Optional full monitoring

• Multiple architectural finishes available

• Suitable for aluminum, hollow metal, and wood applications

• Suitable for outdoor use

• ANSI/BHMA Grade 1 commercial hardware

Designed for Starwheel / Interlocking Latchbolts

The Adams Rite 7800 is specifically engineered to accept the unique Starwheel and Interlocking latch mechanisms used on compatible Adams Rite rim exit devices.

Compatible exit devices include:

• Adams Rite 8700 Series Rim Exit Devices

• Adams Rite 8800 Series Rim Exit Devices

• Adams Rite EX88 Interlocking Rim Exit Devices

This strike is not designed for standard Pullman-style rim exit device latchbolts.

For Adams Rite rim exit devices using Pullman-style latchbolts, consider the appropriate 74R1 or 74R2 UltraLine Electric Strike.

Product Specifications

Manufacturer: Adams Rite
Series: 7800 Series
Model: 7800
Product Type: Surface-Mounted Electric Strike
Lock Compatibility: Starwheel / Interlocking Rim Exit Devices
Compatible Exit Devices: 8700, 8800 & EX88
Strike Dimensions: Approximately 1-3/4" x 9" x 9/16" Deep
Strike Opening: Approximately 1" x 1-1/2" x 1/2" Deep
Keeper: Adjustable Stainless Steel
Holding Force: Over 1,500 lb in Fail-Secure Mode
Voltage: 12/24VDC Field Selectable
Handing: Non-Handed
Function: Field-Selectable Fail-Secure / Fail-Safe
Mounting: Surface Mount
Applications: Aluminum, Hollow Metal or Wood
Application Type: Commercial Access Control

Electrical Specifications

12VDC

Current Draw: Approximately 0.45A

24VDC

Current Draw: Approximately 0.25A

The strike is field selectable between 12VDC and 24VDC, so separate strike bodies are not required for the two common voltages.

Fail-Secure / Fail-Safe Operation

The Adams Rite 7800 can be field configured for either operating mode.

Fail-Secure

The strike remains locked when electrical power is removed and releases when power is applied.

Fail-Safe

The strike releases when electrical power is removed.

Always configure the strike according to the access-control system, applicable building codes, and life-safety requirements.

Monitoring Options

7800 – Standard

Standard electric strike without monitoring switches.

7800L – Latchbolt Monitor

Provides monitoring to indicate when the exit-device latchbolt is engaged in the electric strike.

7800M – Fully Monitored

Provides Form C monitoring switches to indicate:

• Latchbolt engagement

• Locked / unlocked solenoid status

The monitored version is ideal for access-control systems requiring remote verification of door hardware status.

Spacer Plates Included

The standard package includes:

• 1/16" spacer plate

• 1/8" spacer plate

• Mounting screws

• Installation instructions

The spacer plates allow the installer to compensate for different door-to-frame gaps.

Additional spacer plates are available separately.

Certifications & Listings

• ANSI/BHMA A156.31 Grade 1

• UL 1034 Burglary-Resistant Listed

• Suitable for Outdoor Use

• UL 294 Listed

• RoHS Compliant

Ideal Applications

• Aluminum storefront entrances

• Hollow metal door frames

• Commercial wood frames

• Retail facilities

• Office buildings

• Schools and universities

• Healthcare facilities

• Government buildings

• Exterior controlled entrances

• Card-reader systems

• Keypad access systems

• Intercom release systems

• Remote door-release applications

Important Compatibility Note

The Adams Rite 7800 accepts Starwheel / Interlocking-type latch mechanisms only.

Always verify that the existing rim exit device is a compatible 8700, 8800, or EX88 Series before ordering.

For standard Pullman-style rim exit device latches, use the appropriate Pullman-latch electric strike instead.
