Upgrade a commercial aluminum entrance with the Adams Rite MS1950P Series MS® Maximum Security Deadlock, a premium all-stainless-steel locking solution designed for demanding commercial and institutional applications.

The MS1950P Series combines a fully stainless-steel lock case and internal components with Adams Rite's heavy-duty laminated MS® bolt construction for increased corrosion resistance and maximum mechanical security.

Choose the MS1950P Straight Bolt for swinging doors or the MS1950P-X5X Hookbolt for sliding doors.

Key Features

• Genuine Adams Rite / ASSA ABLOY

• Premium MS1950P Series

• Fully stainless-steel case and internal components

• Increased corrosion resistance

• Ideal for high-humidity and demanding environments

• Eight-ply laminated stainless-steel bolt

• Alumina-ceramic core helps resist hacksaw attacks

• Straight-bolt version for swinging doors

• Hookbolt version for sliding doors

• 360° key or thumbturn operation

• Accepts cylinder from either or both sides

• Three commercial backset options

• Compatible with optional multi-point locking accessories

• Designed for commercial aluminum-door applications

Two Bolt Configurations

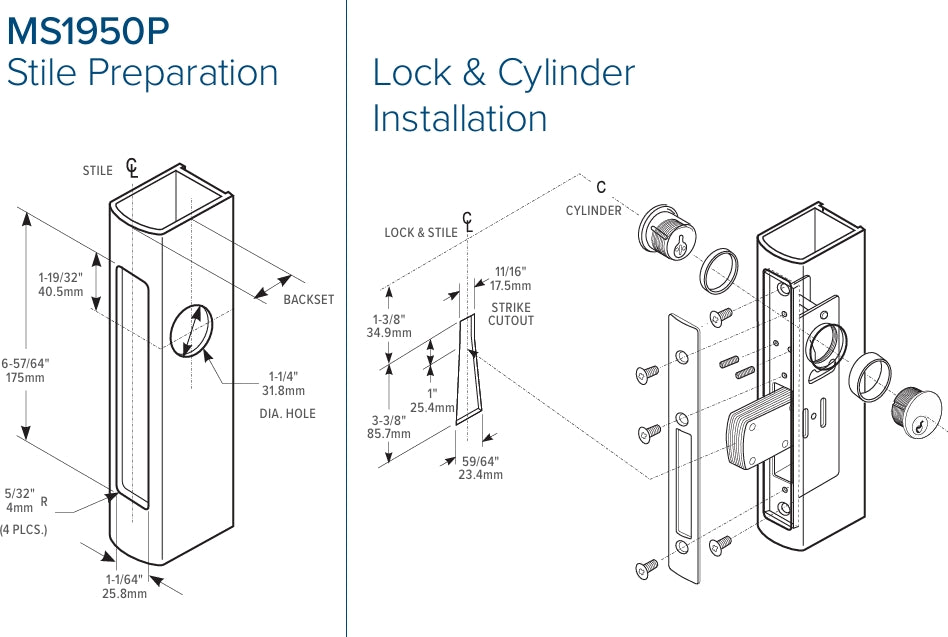

MS1950P – Straight Bolt

The standard MS1950P uses a large laminated straight bolt designed primarily for swinging aluminum doors.

Bolt Size: 5/8" x 1-3/8" x 2-7/8"
Bolt Throw: 1-3/8"

The long bolt projection provides substantial engagement with the jamb and is particularly useful on tall or flexible commercial aluminum doors.

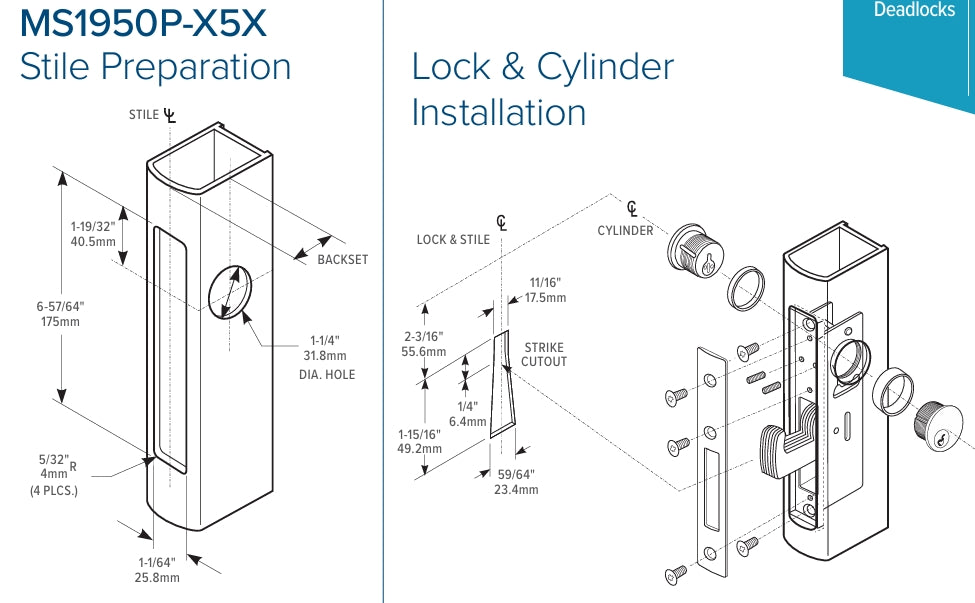

MS1950P-X5X – Hookbolt

The MS1950P-X5X replaces the straight bolt with a laminated stainless-steel hookbolt designed for sliding doors.

Hookbolt Size: 5/8" x 1-3/8"
Hookbolt Throw: 13/16"

The hook-shaped bolt engages the strike in a way that helps resist attempts to:

• Spread the sliding door from the jamb

• Lift the door from its track

• Pry the opening apart

Fully Stainless-Steel Construction

The MS1950P is designed as a premium upgrade to traditional MS deadlocks.

The lock features:

• Stainless-steel case

• Stainless-steel internal components

• Stainless-steel bolt construction

• Internal stainless-steel protection plate

This construction provides enhanced resistance to corrosion and makes the MS1950P particularly well suited for:

• Exterior storefronts

• Coastal areas

• High-humidity environments

• Commercial entrances exposed to moisture

• Demanding institutional installations

Laminated MS® Bolt

Both configurations use an eight-ply laminated stainless-steel bolt.

The center ply incorporates an alumina-ceramic core designed to help defeat hacksaw attacks, including high-performance rod-type saw blades.

360° Lock Operation

A complete:

360° turn of the key or thumbturn

projects or retracts the counterbalanced bolt.

The key can be removed only when the bolt reaches a fully:

• Locked position, or

• Unlocked position

When the deadbolt is retracted, the opening can operate as a passage door until the lock is engaged again.

Backset Options

The MS1950P Series is available in three common narrow-stile backsets:

• 31/32"

• 1-1/8"

• 1-1/2"

Always verify the existing door preparation before ordering.

Mortise Cylinder Compatibility

The lock accepts a standard:

1" long x 1-5/32" diameter mortise cylinder

equipped with an Adams Rite MS® cam.

Compatible Adams Rite examples include:

• 4036 Mortise Cylinder

• 4066 Thumbturn

Cylinder and thumbturn are sold separately.

The lock body can accept compatible operating hardware from either or both sides of the door.

Compatible Interior Controls

Depending on the required configuration, the MS1950P can also work with compatible:

• 4089 Exit Indicator

• 4550 Deadlock Lever

• Mortise cylinder

• Thumbturn

An interior thumbturn and compatible 4550 lever arrangement may be used for applications requiring convenient interior operation.

Multi-Point Locking Capability

The straight-bolt MS1950P can be combined with compatible Adams Rite accessories to create multi-point locking systems.

Related components include:

• 4015 Threshold Bolt

• 4016 Header Bolt

• 4085 Header Bolt

For example, Adams Rite currently shows the MS1950P-310-628 with a 4015 threshold bolt and 4016 header bolt as a multi-point locking solution for exterior doors.

Strike Options

A strike is not included with the standard lock body.

Compatible Adams Rite strike options include:

• 4000 Series Strike

• 4001 Series Strike

• MS4002 Strike

The correct strike depends on the jamb and door configuration.

Faceplate

Faceplate Size: 1" x 6-7/8"

Available faceplate configurations may include:

• Flat

• Radius

• Radius with weatherstrip

• Bevel

• Lock body without faceplate

Verify the required configuration before ordering.

Door Applications

MS1950P Straight Bolt

Designed primarily for:

• Swinging aluminum doors

• Narrow-stile storefront doors

• Commercial entrance doors

• Exterior aluminum doors

MS1950P-X5X Hookbolt

Designed primarily for:

• Sliding aluminum doors

• Sliding storefront doors

• Commercial sliding entrances

• Security sliding-door applications

High-Humidity Applications

The MS1950P Series is especially useful where additional corrosion resistance is desirable.

Its stainless-steel construction makes it an excellent choice for:

• Coastal properties

• Pool facilities

• Exterior entrances

• Humid climates

• Food-processing facilities

• Industrial environments

• Other moisture-prone locations

Product Specifications

Brand: Adams Rite
Series: MS1950P Series
Product Type: MS® Maximum Security Deadlock
Door Material: Aluminum
Case Material: Stainless Steel
Internal Components: Stainless Steel
Bolt Construction: Eight-Ply Laminated Stainless Steel
Security Core: Alumina Ceramic
Backset Options: 31/32", 1-1/8", 1-1/2"
Case Size: 1" x 6" x Depth According to Backset
Faceplate Size: 1" x 6-7/8"
Operation: 360° Key or Thumbturn
Cylinder Type: Mortise Cylinder with MS® Cam
Cylinder Size: 1" Long x 1-5/32" Diameter
Cylinder Included: No
Strike Included: No
Shipping Weight: Approx. 1-1/2 lb.

MS1950P Straight Bolt

Application: Swinging Doors
Bolt: Straight Laminated Stainless-Steel Bolt
Bolt Throw: 1-3/8"

MS1950P-X5X Hookbolt

Application: Sliding Doors
Bolt: Laminated Stainless-Steel Hookbolt
Bolt Throw: 13/16"

What's Included

• 1 Adams Rite MS1950P Series Deadlock Body

• Selected straight-bolt or hookbolt configuration

• Selected faceplate configuration, when ordered

• Machine screws for mounting

Not Included Unless Specifically Stated

• Mortise cylinder

• Thumbturn

• Cylinder guard

• Strike

• 4089 indicator

• 4550 lever

• 4015 threshold bolt

• 4016 header bolt

• 4085 header bolt

• Door

• Frame

Important Electric Strike Compatibility

Adams Rite specifies that the hookbolt MS1950P-X5X configuration can be used with a compatible HES 1006 electric strike equipped with the appropriate R-option faceplate.

The standard straight-bolt configuration is not compatible with this electric-strike arrangement.

Fire-Rating Information

MS Series deadlocks are not fire rated.

Do not use the MS1950P as a locking component on a fire-rated opening unless the complete application is specifically permitted by its listings and the authority having jurisdiction.

Important Ordering Information

Before ordering, verify:

• Swinging or sliding door

• Straight bolt or hookbolt

• Backset:

  • 31/32"

  • 1-1/8"

  • 1-1/2"

• Faceplate configuration

• Required finish

• Door preparation

• Mortise cylinder configuration

• MS® cam requirement

• Strike requirements

• Single-point or multi-point locking application
