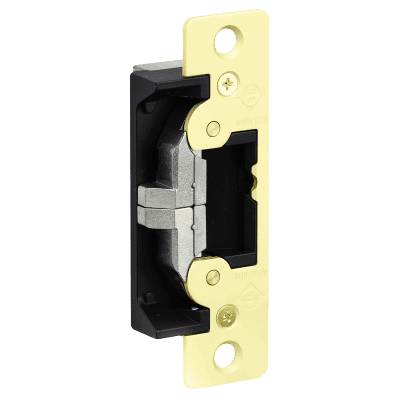

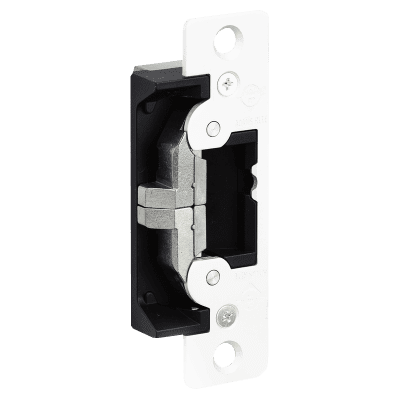

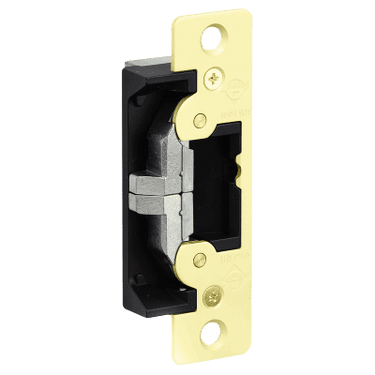

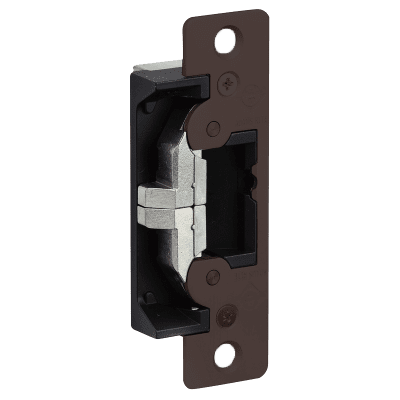

Upgrade commercial access-control openings with the Adams Rite UltraLine 7400 Electric Strike, a premium compact strike engineered to operate reliably even when pressure is being applied against the door.

Unlike conventional electric strikes that may bind under door pressure, the UltraLine 7400 can release electrically under up to 25 lb of preload, making it an excellent solution for openings affected by building pressure, weather conditions, door warping, or hardware misalignment.

Designed for compatible Adams Rite 4500 and 4900 Series Deadlatches and cylindrical locksets with 1/2" to 5/8" latchbolt projection, the 7400 can be used in aluminum, hollow metal, and wood applications.

Key Features

• Adams Rite UltraLine 7400 Series

• Premium preload-capable electric strike

• Releases electrically under up to 25 lb of preload

• Over 1,500 lb holding force in Fail-Secure mode

• Compact 1-1/16" deep strike body

• 1-1/4" x 4-7/8" faceplate

• Flat faceplate with radius corners

• Adjustable stainless steel keeper

• Compatible with 1/2" to 5/8" latchbolt projection

• Designed for Adams Rite deadlatches and compatible cylindrical locks

• Field selectable Fail-Secure or Fail-Safe

• Field selectable 12VDC or 24VDC

• 16VDC capability with optional voltage adapter

• Non-handed

• Optional monitoring available

• Lip extension kits available

• Suitable for outdoor applications

• Grade 1 commercial access-control hardware

Compatible Locking Hardware

Designed for compatible:

• Adams Rite 4500 Series Deadlatches

• Adams Rite 4900 Series Deadlatches

• Adams Rite 4700 Series Deadlatches – discontinued

• Compatible cylindrical locksets

• Latchbolts with 1/2" to 5/8" projection

Product Specifications

Manufacturer: Adams Rite
Series: UltraLine 7400 Series
Model: 7400
Product Type: Preload-Capable Electric Strike
Application: Commercial Access Control
Faceplate Size: 1-1/4" x 4-7/8"
Faceplate Style: Flat with Radius Corners
Case Size: 1-13/32" x 3-3/8" x 1-1/16" Deep
Strike Opening: 5/8" Adjustable x 1-7/16" x 1/2" Deep
Latchbolt Projection: 1/2" to 5/8"
Keeper: Adjustable Stainless Steel
Handing: Non-Handed
Preload Capability: Up to 25 lb
Holding Force: Over 1,500 lb in Fail-Secure Mode
Voltage: 12/24VDC Field Selectable
Fail Mode: Field Selectable Fail-Secure / Fail-Safe
Applications: Aluminum, Hollow Metal or Wood

Preload-Capable Design

Door pressure can prevent many conventional electric strikes from releasing correctly.

Common causes of preload include:

• Positive or negative building pressure

• HVAC pressure

• Weather conditions

• Door warping

• Improper door alignment

• Closer pressure

• Misaligned hardware

The UltraLine 7400 is engineered to release while up to 25 lb of pressure is applied against the strike, providing more dependable operation in demanding commercial openings.

Adjustable Keeper

The adjustable keeper system allows the installer to compensate for minor door and frame alignment conditions.

Different keeper inserts can be used to adjust the strike opening, helping improve latch engagement and access-control performance.

Electrical Specifications

12VDC

Current Draw: 0.44A

24VDC

Current Draw: 0.23A

16VDC

Current Draw: 0.46A
Requires optional VA7400-16VDC Adapter.

The standard strike is field selectable for 12VDC or 24VDC, reducing the need to stock separate strikes for each common voltage.

Fail-Secure / Fail-Safe

The 7400 can be field configured for either:

Fail-Secure

The strike remains locked when power is removed and releases when power is applied.

Fail-Safe

The strike releases when electrical power is removed.

Always select the operating mode required by the access-control system, building code, and Authority Having Jurisdiction.

Optional Monitoring

The 7400M monitored version incorporates two Form C monitoring switches.

Monitoring can indicate:

• Whether the latchbolt is engaged in the strike

• Whether the strike solenoid is in the locked or unlocked position

This option is ideal for commercial security systems requiring door and lock-status feedback.

Outdoor-Rated Application

The UltraLine 7400 Series is suitable for outdoor use, making it an excellent choice for exterior commercial openings where moisture and changing environmental conditions may be present.

Standard Strike Lip

The standard 7400 lip is designed around a typical 1-3/4" thick door closing flush with the jamb edge.

Where door thickness, center-hung conditions, or jamb geometry differs from the standard installation, optional lip extension kits are available.

Certifications

• UL 1034 Burglary-Resistant Listed

• Suitable for Outdoor Use

• UL 294

• ULC-S319

• ANSI/BHMA A156.31 Grade 1

• ANSI/BHMA A156.18

Ideal Applications

• Aluminum storefront entrances

• Commercial office buildings

• Exterior controlled entrances

• Retail facilities

• Schools and universities

• Healthcare facilities

• Government buildings

• Hollow metal frames

• Wood commercial openings

• High-pressure HVAC environments

• Card-reader systems

• Keypad access systems

• Remote-release entrances

Important Ordering Information

Before ordering, verify:

• Existing deadlatch or cylindrical lock model

• Latchbolt projection

• Faceplate preparation

• Required finish

• Standard or monitored configuration

• Door thickness

• Door centerline-to-jamb dimension

• Required lip extension

The 7400 uses a flat 1-1/4" x 4-7/8" faceplate with radius corners.

For paired narrow-stile doors requiring a fully radiused strike faceplate, use the Adams Rite 7401 configuration.
