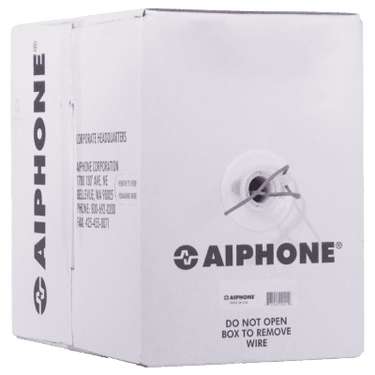

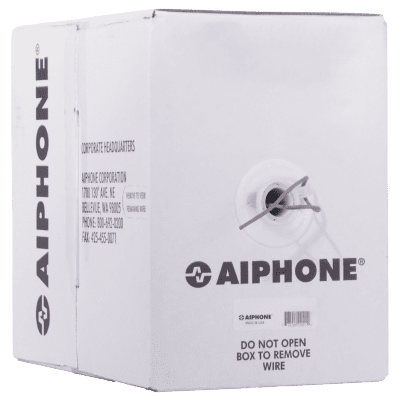

Install compatible Aiphone intercom, entry, and communication systems with Aiphone 82220250C, a professional-grade 2-conductor, 22 AWG overall-shielded cable supplied in a 500-foot box.

Designed to meet Aiphone's designated system wiring requirements, this cable provides the shielding and electrical characteristics needed for reliable audio, communication, and control signals in compatible Aiphone installations.

Using Aiphone-approved wire also provides an additional one-year warranty extension on applicable Aiphone products when installed according to manufacturer requirements.

Key Features

• Genuine Aiphone-approved wire

• Part number 82220250C

• 2 conductors

• 22 AWG

• Overall shield

• 500-foot box

• PVC conductor insulation

• PVC outer jacket

• Designed to meet Aiphone wiring specifications

• Suitable for compatible intercom and communication systems

• UL and cUL listed

• CL3R rated

• FPLR rated

• CMR FT-4 rated

• RoHS III compliant

• REACH compliant

• Made in USA

• Eligible for an additional one-year Aiphone warranty on applicable equipment

Product Specifications

Manufacturer: Aiphone
Part Number: 82220250C
Product Type: Low-Voltage Communication Cable
Wire Gauge: 22 AWG
Conductors: 2
Shielding: Overall Shield
Length: 500 ft
Insulation Material: PVC
Jacket Material: PVC
Capacitance: 44.65 pF/ft
DC Resistance: 17.50 Ohms per 1,000 ft
Cable Ratings: CL3R, FPLR, cULus CMR FT-4
Approximate Weight: 6 lb
Country of Origin: USA

Overall-Shielded Construction

The 82220250C uses an overall shield around the conductors to help protect low-voltage communication signals from electrical interference.

This makes it well suited for Aiphone applications where shielded wiring is specifically required.

Compatible Aiphone Applications

Aiphone specifies #822202 wire for numerous systems and components, including compatible:

• Audio intercom systems

• Door stations

• Master stations

• Commercial entry systems

• Cashier/security window systems

• Paging adaptors

• Legacy Aiphone communication systems

Examples of compatible equipment include select:

• AX Series

• LEM Series

• ChimeCom systems

• DA Series

• IE Series

• IM Series

• Other Aiphone systems specifying 2-conductor overall-shielded 22 AWG wire

Always confirm the wiring requirements for the specific Aiphone equipment before installation.

Common Wiring Applications

Aiphone specifies 822202 wire for applications such as:

• Door station to master station

• Audio sub station wiring

• Paging adaptor connections

• Intercom communication lines

• Cashier/security window system wiring

• Commercial entrance communication

Aiphone-Approved Cable

Aiphone systems can be sensitive to cable:

• Gauge

• Resistance

• Capacitance

• Shielding

• Conductor count

• Maximum wiring distance

Using the specified Aiphone cable helps ensure the installed system operates according to manufacturer design requirements.

Important Installation Note

The 82220250C is overall shielded cable.

Do not substitute non-shielded wire in applications where Aiphone specifically calls for #822202 or another shielded cable.

This cable is also not a substitute for applications requiring:

• Plenum-rated cable

• Direct-burial cable

• CAT-5e

• Low-capacitance non-shielded cable

• Different wire gauges or conductor counts

Always follow the wiring diagram and maximum-distance requirements for the specific system.
