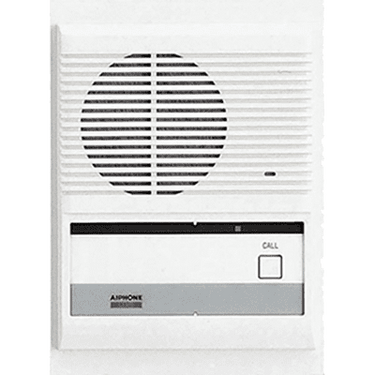

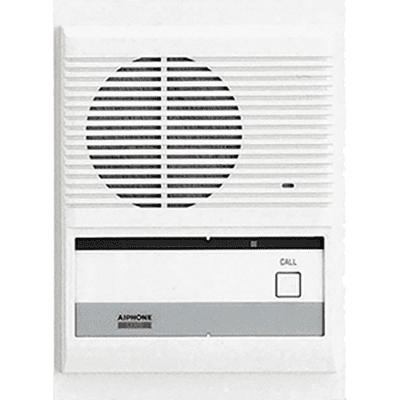

Add an interior communication point to a compatible Aiphone AX Series intercom system with the Aiphone AX-B Semi-Flush Audio Sub Station.

Designed for indoor commercial applications, the AX-B provides hands-free audio communication with compatible AX Series master stations. Its semi-flush design provides a clean, low-profile installation in offices, reception areas, security stations, and other interior locations.

The station features a built-in speaker, microphone, and call button housed in a durable white ABS plastic enclosure.

Key Features

• Genuine Aiphone AX-B

• AX Series indoor audio sub station

• Semi-flush mount

• Hands-free communication

• Built-in speaker and microphone

• Integrated call button

• Durable ABS plastic construction

• White finish

• CAT-5e or compatible 2-conductor wiring

• Up to 980 ft wiring distance

• Powered through compatible AX Series equipment

• Designed for indoor commercial applications

• Ideal for existing and legacy AX Series systems

Product Specifications

Manufacturer: Aiphone
Model: AX-B
Series: AX Series
Product Type: Indoor Audio Sub Station
Communication: Hands-Free
Mounting: Semi-Flush
Material: ABS Plastic
Color: White
Wire Type: CAT-5e or 2-Conductor
Maximum Wire Distance: 980 ft with AX Series
Dimensions: 8-3/16" H x 6" W x 1-15/16" D
Application: Indoor Intercom / Internal Communication

Hands-Free Communication

The AX-B provides hands-free communication when a compatible AX Series master station answers the call.

A built-in microphone and speaker allow personnel to communicate without picking up a handset, making the station convenient for offices, security areas, reception stations, and other interior locations.

Semi-Flush Installation

Unlike the surface-mounted AX-A, the AX-B is designed for semi-flush installation.

It can be mounted into a wall opening approximately:

6-1/8" H x 3-3/4" W

A compatible Aiphone BBX-1E back box can also be used where required.

AX-B vs. AX-BN

AX-B

• Semi-flush mount

• Hands-free audio

• Standard sub station

• No privacy control

AX-BN

• Semi-flush mount

• Hands-free audio

• Includes Privacy function

• Privacy mode prevents a master station from monitoring audio at the sub station while privacy is engaged

Choose the AX-B when the privacy function is not required.

AX Series Compatibility

The AX-B is designed for use with compatible Aiphone AX Series central exchange and master station equipment.

Compatible system components may include:

• AX Series central exchange units

• AX Series audio master stations

• AX Series audio/video master stations

• AX Series add-on exchange equipment

Always verify compatibility with the existing Aiphone system before ordering.

Ideal Applications

• Commercial offices

• Reception areas

• Security offices

• Schools and universities

• Healthcare facilities

• Government buildings

• Industrial facilities

• Internal communication stations

• Existing Aiphone AX Series installations

Important Product Note

The Aiphone AX-B has been discontinued by the manufacturer.

It remains useful for:

• Replacing an existing AX-B

• Maintaining legacy AX Series systems

• Repairing existing commercial intercom installations

• Expanding compatible systems where remaining stock is available

Availability may be limited to remaining distributor or replacement inventory.
