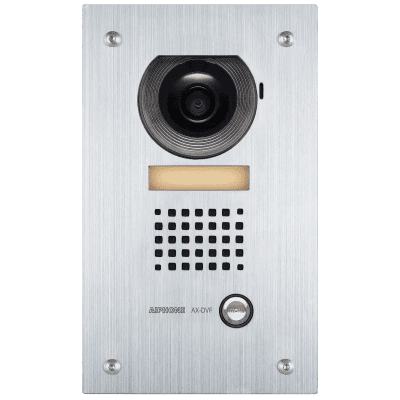

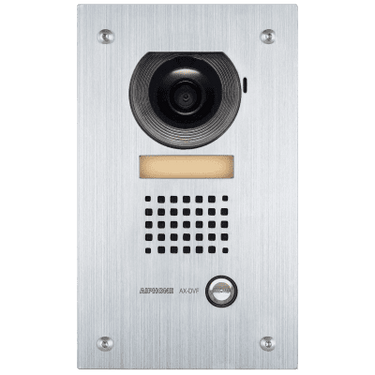

Provide secure visitor communication and video identification with the Aiphone AX-DVF Flush Mount Video Door Station, designed for use with compatible Aiphone AX Series intercom systems.

The AX-DVF combines hands-free audio communication with an integrated color video camera in a rugged, vandal-resistant assembly. Its brushed stainless-steel faceplate and flush-mount design provide a professional appearance for commercial, institutional, and controlled-access entrances.

A built-in white LED automatically illuminates the visitor area in low-light conditions, while the integrated directory card provides convenient identification at the entrance.

Key Features

• Genuine Aiphone AX-DVF

• AX Series audio/video door station

• Flush-mount design

• Brushed stainless-steel faceplate

• Vandal-resistant construction

• 1/4" color CCD camera

• Hands-free audio communication

• Built-in microphone and speaker

• Single illuminated call button

• Directory / name placard

• Automatic white LED illumination in low-light conditions

• Polycarbonate camera lens cover

• CAT-5e wiring

• RJ45 connection

• Powered from compatible AX Series central exchange unit

• IP43 protection rating

• Back box included

• Commercial security and access-control application

Product Specifications

Manufacturer: Aiphone
Model: AX-DVF
Series: AX Series
Product Type: Video Door Station
Communication: Hands-Free
Camera: 1/4" Color CCD
Minimum Illumination: 5 Lux
Wiring: CAT-5e
Connection: RJ45
Power Source: 24VDC Supplied by AX Series Central Exchange Unit
Maximum Wiring Distance: Up to 980 Feet
Mounting: Flush Mount
Faceplate Material: Stainless Steel
Finish: Brushed Stainless Steel
Protection Rating: IP43
Operating Temperature: 14°F to 140°F (-10°C to 60°C)
Dimensions: Approximately 9-11/16" H x 5-3/4" W x 1-7/8" D
Application: Commercial Video Intercom / Controlled Entry

Integrated Video Camera

The AX-DVF features an integrated 1/4" color CCD camera that provides video of visitors at the entrance to compatible AX Series master stations.

The fixed camera is designed to provide clear visitor identification without requiring a separate external camera.

Automatic LED Illumination

Built-in white LED illuminators automatically activate under low-light conditions to improve visibility around the visitor's face.

This feature helps maintain usable video performance at entrances with limited ambient lighting.

Hands-Free Communication

Visitors initiate a call using the integrated call button.

Compatible AX Series master stations provide hands-free communication, allowing building personnel to communicate with visitors before granting access.

Stainless-Steel Construction

The AX-DVF features a brushed stainless-steel front panel designed for demanding commercial installations.

Its vandal-resistant construction makes it well suited for:

• Office buildings

• Schools and universities

• Healthcare facilities

• Government buildings

• Commercial entrances

• Industrial facilities

• Apartment and multi-tenant buildings

• Controlled-access areas

Mounting Options

Flush Mount

The AX-DVF is designed primarily for flush installation and includes the required steel back box.

Optional Surface Mount

For applications where flush mounting is not practical, the AX-DVF can be surface mounted using the compatible:

Aiphone SBX-AXDVF Surface Mount Box

Surface-mount box sold separately.

AX Series Compatibility

The AX-DVF is designed for use as part of an Aiphone AX Series system and connects to the compatible central exchange unit using CAT-5e cable.

The door station is not intended to operate as a standalone video intercom.

Verify compatibility with the existing AX Series equipment before ordering.

What's Included

• Aiphone AX-DVF Video Door Station

• Stainless-steel faceplate

• Flush-mount back box

• Directory card

• Mounting hardware

• Security screwdriver

Important Product Note

The Aiphone AX-DVF has been discontinued by the manufacturer.

This product may still be useful for:

• Repairing existing AX Series systems

• Replacing damaged AX-DVF stations

• Maintaining legacy Aiphone installations

Availability may be limited to remaining distributor or replacement stock.

For new system designs, verify the appropriate current-generation Aiphone replacement before specifying this model.
