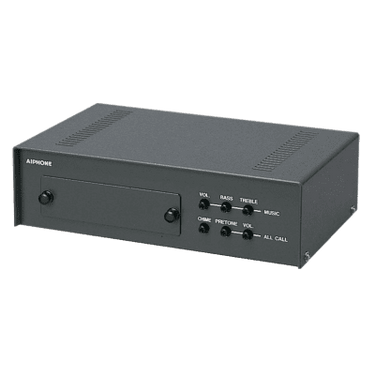

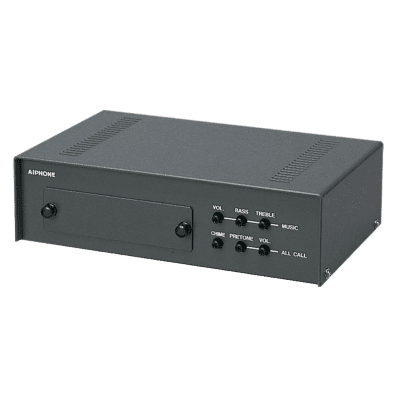

Add All Call announcements, door-call chimes, and background music distribution to a compatible Aiphone LEF Series intercom system with the Aiphone BG-10C All Call/Chime Adaptor with Amplifier.

Designed for compatible LEF-C and LEF-10S systems, the BG-10C provides centralized control for All Call paging, door-station chime distribution, and background music throughout an LEF intercom network.

Individual switches allow music and chime functions to be selected by station, while dedicated controls provide adjustment for chime volume, music volume, bass, treble, All Call pre-tone, and All Call speech volume.

Key Features

• Genuine Aiphone BG-10C

• All Call / Chime adaptor with built-in amplifier

• Designed for compatible LEF Series systems

• Adds All Call announcement capability

• Provides door-station chime distribution

• Provides background music distribution

• Individual music ON/OFF selection

• Music and chime selector for individual stations

• Adjustable chime volume

• Adjustable music volume

• Bass and treble controls

• Adjustable All Call pre-tone volume

• Adjustable All Call speech volume

• Stereo AUX background-music input

• Supports multiple LEF master-station configurations

• Ideal for commercial internal communication and paging systems

Product Specifications

Manufacturer: Aiphone
Model: BG-10C
Product Type: All Call / Chime / Music Adaptor
Series: LEF Series
Built-In Amplifier: Yes
Current Consumption: 100mA
All Call Function: Yes
Door Chime Function: Yes
Background Music Input: Yes
BGM Inputs: AUX R / E and AUX L / E
Height: 6-1/2"
Width: 10"
Depth: 3"
Application: LEF Series Intercom / All Call / Chime / Background Music

Three Primary Functions

The BG-10C provides three major functions to a compatible LEF intercom system:

All Call

Allows authorized LEF master stations to broadcast an announcement to other compatible stations throughout the system.

Door Chime

When a connected door station calls, the BG-10C distributes a chime tone to selected interior stations.

Background Music

An external audio source can be connected to the BG-10C and distributed through compatible LEF station speakers.

All Call Compatible Stations

The following compatible master stations can transmit an All Call announcement through the BG-10C:

• LEF-1C

• LEF-3C

• LEF-5C

• LEF-10C

• LEF-10S

Compatible LEF master stations throughout the system can receive the All Call announcement.

Background Music Distribution

The BG-10C provides stereo auxiliary connections for an external background-music source.

BGM Inputs

• AUX R / E

• AUX L / E

Music can be selectively distributed to compatible LEF station speakers.

When the intercom system is being used for communication, background music is automatically muted as required by the system.

Music Controls

The BG-10C provides adjustment for:

• Music ON/OFF

• Music volume

• Bass

• Treble

• Station music selection

This allows the installer or facility operator to tailor background-music operation to the application.

Door Chime Distribution

When a compatible Aiphone door station calls into the LEF system, the BG-10C can distribute an electronic chime to selected interior stations.

Individual station selectors allow chime distribution to be configured according to system requirements.

Compatible door stations can include:

• LE-D

• LE-DA

• Other compatible LE Series door stations

All Call Controls

The BG-10C provides separate adjustment for:

• All Call Pre-Tone Volume

• All Call Speech Volume

The pre-tone alerts users that a building-wide or system-wide announcement is about to begin.

Required Power Supply

When a BG-10C is installed in an LEF Series system, Aiphone specifies the:

PS-1225UL – 12VDC, 2.5A Power Supply

The smaller PS-1208UL is normally used for LEF systems without the BG-10C.

Important

For an LEF system using the BG-10C:

Use PS-1225UL

Always calculate the complete system requirements according to the applicable Aiphone wiring diagram.

Wiring Requirements

BG-10C to LEF-10C

Aiphone specifies up to:

19 conductors maximum

Recommended cable:

Aiphone #822220 Series

BG-10C to LE-D / LE-DA

Requires:

3 conductors

Recommended cable:

Aiphone #822203 Series

Actual conductor requirements depend on system size and configuration.

Typical LEF System Configuration

A complete system may include:

• LEF-C master stations

• LEF-10S master station

• LEF sub stations

• LE-D or LE-DA door stations

• BG-10C All Call/Chime Adaptor

• PS-1225UL power supply

• Aiphone-approved multi-conductor wiring

• External background-music source

Ideal Applications

• Commercial offices

• Warehouses

• Manufacturing facilities

• Schools and universities

• Healthcare facilities

• Government buildings

• Security offices

• Reception areas

• Administrative facilities

• Internal paging systems

• Multi-station intercom systems

• Existing Aiphone LEF installations

Important Ordering Information

This listing is for the BG-10C All Call/Chime Adaptor only.

The following are sold separately unless specifically stated:

• PS-1225UL Power Supply

• LEF master stations

• LEF sub stations

• Door stations

• Background-music source

• Intercom wiring

• Door-release hardware

Verify the complete LEF system configuration and wiring requirements before ordering.
