Provide simple, reliable visitor communication and remote door-release capability with the Aiphone C-123 ChimeCom Intercom System.

Designed for residential, office, retail, and light-commercial entrances, the C-123 Series provides a distinctive chime when a visitor presses the door-station button. Personnel can then communicate with the visitor using the interior C-ML/A master station and activate a compatible electric door release directly from the master.

Choose the C-123L/A for a single-master installation or the C-123LW when two interior master stations are required.

Key Features

• Genuine Aiphone ChimeCom

• One-door audio intercom system

• Push-to-talk communication

• Distinctive electronic chime from door station

• Built-in door-release button

• Adjustable communication volume

• Wall-mounted master station

• Simple 2-conductor wiring

• Compatible with electric door-release hardware

• Suitable for residential and commercial entrances

• Available in one-master or two-master configurations

C-123L/A – Single Master System

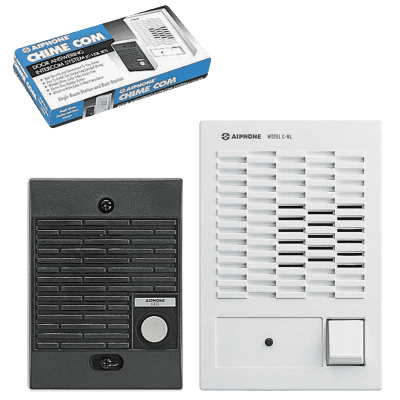

The Aiphone C-123L/A is a complete one-door, one-master ChimeCom set.

Package Includes

• 1 – C-ML/A Master Station

• 1 – C-D Door Station

This configuration is ideal where visitors need to communicate with a single interior location such as:

• Reception desk

• Front office

• Security station

• Residential living area

• Small commercial office

C-123LW – Dual Master System

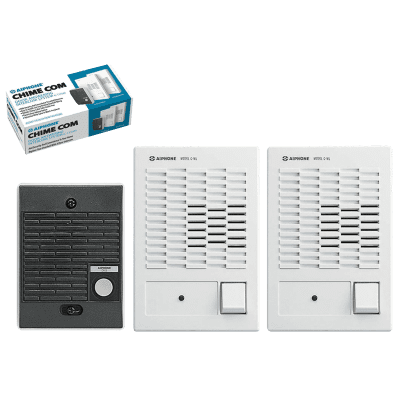

The Aiphone C-123LW expands the ChimeCom system to provide communication from two interior master stations.

Package Includes

• 2 – C-ML/A Master Stations

• 1 – C-D Door Station

• 1 – DAK-2S Dual Master Adaptor Kit

When a visitor presses the exterior door station, the chime can be answered from either interior master station.

This configuration is ideal for:

• Front and rear offices

• Multiple reception locations

• Two-floor installations

• Office and warehouse combinations

• Residential applications requiring two answering locations

Door Release Capability

The C-ML/A master station includes a built-in door-release control.

Door Release Contact:
Normally Open dry contact

Contact Rating:
30V AC/DC, 1A

This contact can be connected to compatible electric locking equipment such as:

• Electric strikes

• Door-release relays

• Compatible electrified locking hardware

Door locking hardware and any required external power supply are sold separately.

Product Specifications

Manufacturer: Aiphone
Series: ChimeCom
Models: C-123L/A & C-123LW
System Type: Audio Door Intercom
Communication: Push-to-Talk / Simplex
Audio Output: 100mW
Power Consumption: 85mA Maximum at 6VDC
Mounting: Wall Mount
Wiring: 2-Conductor Overall Shielded
Door Release Contact: N/O Dry Contact, 30V AC/DC, 1A

Recommended Wire

Aiphone recommends:

• 822202 – 22 AWG 2-Conductor Shielded

• 821802 – 18 AWG 2-Conductor Shielded

Maximum Wiring Distance

22 AWG

Up to 245 ft from the door station to the farthest master station.

18 AWG

Up to 590 ft from the door station to the farthest master station.

C-ML/A Master Station Dimensions

Height: 7-1/2"
Width: 5-1/8"
Depth: 1-3/4"

C-D Door Station Dimensions

Height: 4-3/4"
Width: 3-7/16"
Depth: 1-1/8"

Power Options

The ChimeCom system can be powered by an appropriate 6VDC source.

A compatible Aiphone power supply is:

SKK-620C – 6VDC, 200mA Power Supply

The power supply is sold separately unless specifically included with the selected package.

Compatible Accessories

Common compatible accessories include:

• SKK-620C – 6VDC Power Supply

• DAK-2S – Dual Master Adaptor Kit

• EL-12S – 12VAC Electric Door Strike

• RY-AC/A – External Signaling Relay

• KMB-45 – 45° Mullion Mounting Bracket

• 822202 – 22 AWG Shielded Intercom Wire

• 821802 – 18 AWG Shielded Intercom Wire

Ideal Applications

• Office entrances

• Reception areas

• Retail stores

• Small commercial buildings

• Apartment entrances

• Residential entry systems

• Front desks

• Warehouses

• Employee entrances

• Controlled-access doors

Important Ordering Information

Choose the configuration based on the number of interior answering stations required.

C-123L/A: One Door Station + One Master Station

C-123LW: One Door Station + Two Master Stations + DAK-2S Adaptor

Electric strike, power supply, cabling, and other accessories are sold separately unless specifically stated.
