Add visitor communication and remote door-release control to a single entrance with the Aiphone DA-1AS 1-Call Audio Entrance Box Set.

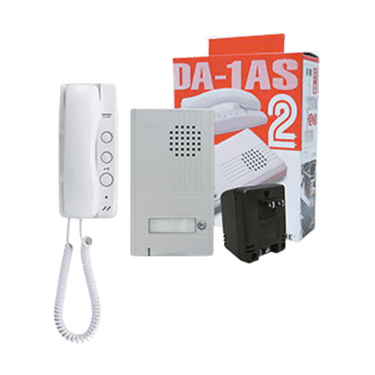

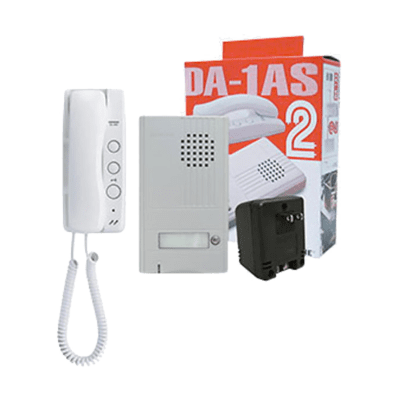

The DA-1AS is a convenient complete package for one entrance and one answering location, combining the DA-1DS hands-free audio door station, DA-1MD full-duplex handset tenant station, and PT-1211CA 15VAC plug-in transformer.

The simple 2-wire system makes the DA-1AS an excellent choice for offices, residences, small commercial properties, and controlled entrances where reliable audio communication and door release are required without the complexity of a larger intercom system.

Key Features

• Genuine Aiphone DA-1AS

• Complete 1-door / 1-tenant audio intercom box set

• Includes DA-1DS entrance station

• Includes DA-1MD handset tenant station

• Includes PT-1211CA 15VAC transformer

• Hands-free communication at entrance

• Private full-duplex handset communication indoors

• Dedicated door-release button

• Entrance station can power a compatible electric strike

• No additional strike transformer required with compatible lock

• Backlit visitor directory

• Adjustable call-tone volume

• Call-tone mute with visual indicator

• Option/service button for compatible external device

• Simple 2-wire installation

• Ideal for residential and commercial entrances

Box Set Includes

DA-1DS – 1-Call Audio Door Station

The included DA-1DS is the exterior entrance station.

Features include:

• One visitor call button

• Hands-free audio

• Backlit name / directory area

• Weather-resistant construction

• Aluminum cover

• Surface-mount installation

• Electric door-strike power output

DA-1DS Dimensions

Height: 6-7/8"
Width: 3-15/16"
Depth: 7/8"

DA-1MD – Audio Handset Tenant Station

The included DA-1MD provides private indoor communication with visitors.

Features include:

• Full-duplex handset communication

• Door-release button

• Adjustable call-tone volume

• Call-tone mute function

• Visual mute indicator

• Option / service button

• Wall-mount installation

DA-1MD Dimensions

Height: 7-7/8"
Width: 3-1/2"
Depth: 2-3/8"

PT-1211CA – 15VAC Power Supply

The included Aiphone transformer supplies operating power to the DA Series system.

Output: 15VAC
Type: Plug-In Transformer
UL Listed: Yes

Product Specifications

Manufacturer: Aiphone
Model: DA-1AS
Series: DA Series
Product Type: Audio Entrance Box Set
System Capacity: 1 Entrance / 1 Tenant
Door Communication: Hands-Free
Tenant Communication: Full-Duplex Handset
Power: 15VAC
Power Supply: PT-1211CA Included
Door Station: DA-1DS Included
Tenant Station: DA-1MD Included
Door Release: Yes
Installation: 2-Wire System

Door Release

The DA-1AS provides convenient remote door release directly from the DA-1MD tenant station.

Aiphone specifies a compatible electric lock rated:

9.5–20VAC
70 Ohms or Higher Resistance

Recommended Aiphone electric strike:

EL-12S – 12V AC/DC Electric Door Strike

The entrance station can supply power to a compatible strike, eliminating the need for an additional door-strike transformer in properly configured installations.

Simple 2-Wire Installation

One of the primary advantages of the DA Series is its simple wiring architecture.

The system uses 2-conductor cable between the major components, making it suitable for:

• New installations

• Replacement intercom systems

• Retrofit applications

• Existing low-voltage wiring pathways

Recommended Entrance-to-Tenant Wiring

Aiphone allows either of the following:

Shielded Cable

2-Conductor Overall-Shielded

Recommended:

• 82220250C – 22 AWG | 500'

• 82220210C – 22 AWG | 1,000'

Low-Capacitance Cable

2-Conductor Solid, Non-Shielded, PE Insulated

Recommended:

• 87180250C – 18 AWG | 500'

• 87180210C – 18 AWG | 1,000'

Power Supply Wiring

Between the power supply and tenant station, Aiphone specifies:

2-Conductor, Solid, Non-Shielded, Low-Capacitance Cable

Recommended:

Aiphone #871802 Series

Maximum Wiring Distances

Power Supply to Tenant Station

22 AWG: Up to 180 ft
18 AWG: Up to 510 ft

Power Supply to Entrance Station / Door Strike – Cumulative

22 AWG: Up to 360 ft
18 AWG: Up to 1,020 ft

Always follow the current Aiphone wiring diagram for the complete system configuration.

Backlit Visitor Directory

The DA-1DS includes a backlit directory / name area, making the entrance station easier to identify in low-light conditions.

This is useful for:

• Evening entrances

• Covered exterior locations

• Office entrances

• Residential applications

Adjustable Call Tone

The DA-1MD allows the occupant to adjust the entrance call-tone volume.

The call tone can be:

• High

• Reduced

• Muted

A visual indicator shows when the call tone has been muted.

External Device Control

The DA-1MD includes an option/service button that can be used to control a compatible external device.

Possible applications may include:

• Gate control

• Exterior lighting

• Auxiliary relay

• Other compatible low-voltage equipment

Additional interface equipment may be required depending on the application.

Ideal Applications

• Single-family residences

• Commercial offices

• Reception entrances

• Small businesses

• Private offices

• Clinics

• Retail facilities

• Apartment management offices

• Controlled-access entrances

• Replacement audio intercom systems

Important Ordering Information

The DA-1AS is intended for a 1-entrance / 1-tenant application.

For systems requiring multiple tenant call buttons, Aiphone also offers:

• DA-2DS – 2-Call Entrance Station

• DA-4DS – 4-Call Entrance Station

These larger configurations are generally built using separately purchased DA Series components rather than the DA-1AS box set.

The electric strike, intercom cable, auxiliary devices, and other accessories are sold separately unless specifically stated.
