Add hands-free visitor communication and remote door-release control to a commercial, residential, or multi-tenant entrance with the Aiphone DBS-1A DB Series Audio Door Phone Kit.

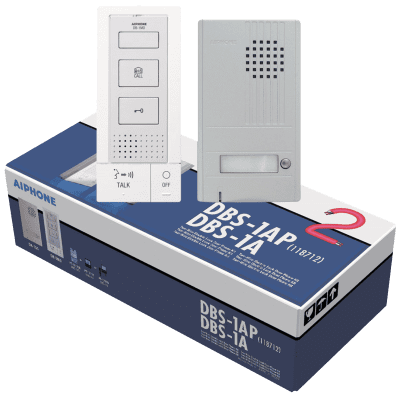

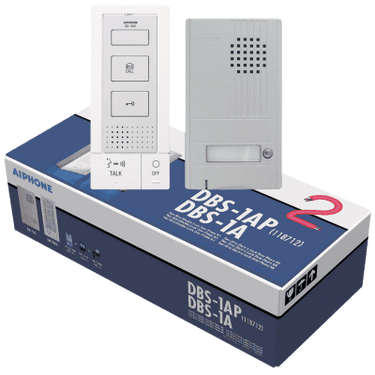

The DBS-1A is a convenient complete box set that includes the DB-1MD open-voice master station, DA-1DS 1-call audio entrance station, and PT-1211CA 15VAC plug-in transformer.

The system provides hands-free VOX or push-to-talk communication, door release, adjustable call volume, All Call communication between compatible interior stations, and an option button for controlling an external device.

Key Features

• Genuine Aiphone DBS-1A

• Complete DB Series audio entrance kit

• Includes DB-1MD open-voice master station

• Includes DA-1DS 1-call entrance station

• Includes PT-1211CA 15VAC transformer

• Hands-free VOX communication

• Push-to-talk operation available

• Dedicated door-release button

• Door strike powered through compatible entrance station

• No separate strike transformer required with compatible lock

• Backlit visitor directory

• All Call between compatible interior stations

• Option button for auxiliary device control

• Adjustable receive volume

• Adjustable call-tone volume

• Mute function with LED indication

• Optional call-extension speaker

• Expandable DB Series architecture

• Ideal for commercial and residential entrances

Box Set Includes

DB-1MD – Open-Voice Master Station

The included DB-1MD provides hands-free indoor communication and system control.

Features include:

• Hands-free VOX communication

• Push-to-talk operation

• Door-release button

• All Call / room-to-room communication

• Option button

• Receive-volume control

• Chime-volume control

• Chime mute with LED indication

• Wall-mount installation

DB-1MD Dimensions

Height: 7-5/16"
Width: 3-1/8"
Depth: 1-1/16"

DA-1DS – 1-Call Audio Door Station

The included DA-1DS provides visitor communication at the entrance.

Features include:

• One direct-select call button

• Hands-free audio

• Backlit directory

• Weather-resistant construction

• Aluminum cover

• Surface-mount installation

• Door-release power output

DA-1DS Dimensions

Height: 6-7/8"
Width: 3-15/16"
Depth: 7/8"

PT-1211CA – 15VAC Transformer

The included PT-1211CA provides operating power to the DB-1MD.

Input: 120VAC, 60Hz
Output: 15VAC
Output Rating: 10VA / 700mA
Type: Plug-In Transformer
UL Listed: Yes

Product Specifications

Manufacturer: Aiphone
Model: DBS-1A
Series: DB Series
Product Type: Audio Door Phone / Intercom Kit
Initial Configuration: 1 Entrance / 1 Master Station
Communication: Hands-Free VOX or Push-to-Talk
Power: 15VAC
Power Supply: PT-1211CA Included
Entrance Station: DA-1DS Included
Master Station: DB-1MD Included
Door Release: Yes
All Call: Yes
Auxiliary Option Output: Yes

Hands-Free or Push-to-Talk Communication

The DB-1MD provides two communication modes.

Hands-Free VOX

Press the TALK button once to begin hands-free voice-activated communication.

Push-to-Talk

In noisy environments, the station can also be operated using push-to-talk communication for improved control.

This flexibility makes the DBS-1A useful in:

• Offices

• Reception areas

• Warehouses

• Commercial buildings

• Residential entrances

Door Release

The DBS-1A allows the occupant to remotely release a compatible electric strike directly from the DB-1MD.

Aiphone specifies compatible door-release hardware rated approximately:

9.5–20VAC
70 Ohms or Higher Resistance

Recommended Aiphone strike:

EL-12S – 12V AC/DC Electric Door Strike

The DA-1DS entrance station supplies the door-release power, so a separate strike transformer is not normally required when using compatible hardware.

All Call & Room-to-Room Communication

Additional DB Series interior stations can be added to provide communication throughout the same tenant residence or office.

Pressing the CALL button allows an announcement to be sent to the other compatible interior stations.

Another station can answer to establish hands-free room-to-room communication.

Auxiliary Option Button

The DB-1MD includes an OPTION button with a Normally Open dry contact.

This can be used to control compatible external equipment such as:

• Exterior lighting

• Gate operator

• Garage-door control

• Auxiliary relay

• Other compatible low-voltage equipment

Contact Rating: Up to 24V AC/DC, 1.6A

Additional interface equipment may be required depending on the connected device.

Expandable DB Series System

The DB Series can support:

• 1 entrance

• Up to 4 tenants

• Up to 5 answering stations per tenant

Each tenant can use:

• 1 DB-1MD master station

• Up to 4 DB-1SD sub-master stations

This provides flexibility for larger offices, residences, or small multi-tenant properties.

Compatible Multi-Call Entrance Stations

The DBS-1A includes the DA-1DS 1-call door station.

For larger DB Series systems, compatible entrance stations include:

• DA-1DS – 1 Call

• DA-2DS – 2 Call

• DA-4DS – 4 Call

Each call button can be assigned to an individual tenant.

Optional DB-1SD Sub-Master

Add the:

DB-1SD – DB Series Sub-Master Station

to provide additional answering locations within the same residence or office.

The DB-1SD includes:

• Hands-free / push-to-talk communication

• Door release

• All Call

• Auxiliary option button

• Receive-volume control

• Chime-volume control

Optional Call Extension

For locations where the normal intercom chime may not be easily heard, the DB Series supports:

IER-2

Optional call-extension speaker.

RY-ES

External signaling relay for activating a compatible:

• Bell

• Buzzer

• Light

• Strobe

• Other notification device

Recommended Wiring

Entrance Station to Master Station

Aiphone specifies:

2-Conductor, Solid, Non-Shielded, Low-Capacitance Cable

Recommended:

• 87180250C – 18 AWG | 500'

• 87180210C – 18 AWG | 1,000'

• 871802P10C – 18 AWG | Plenum | 1,000'

Master Station to Sub-Master Station

Use:

4-Conductor, Solid, Non-Shielded Cable

Recommended:

• 87180450C – 18 AWG | 500'

• 871804P50C – 18 AWG | Plenum | 500'

Maximum Wiring Distances

Power Supply to Master Station

22 AWG: Up to 180 ft
18 AWG: Up to 510 ft

Power Supply to Entrance Station / Door Strike – Cumulative

22 AWG: Up to 360 ft
18 AWG: Up to 1,020 ft

Master to Farthest Sub-Master

Maximum: Approximately 330 ft

Always follow the applicable Aiphone wiring diagram for the complete installation.

Ideal Applications

• Commercial offices

• Reception entrances

• Small businesses

• Single-family residences

• Apartment management offices

• Multi-tenant buildings

• Warehouses

• Clinics

• Administrative facilities

• Controlled-access entrances

• Replacement audio intercom systems

Important Ordering Information

The DBS-1A is supplied as a complete 1-call starter kit.

The following components are included:

• DB-1MD master station

• DA-1DS door station

• PT-1211CA transformer

The following are sold separately unless specifically stated:

• Electric strike

• DB-1SD sub-master stations

• Additional tenant master stations

• Multi-call entrance stations

• Intercom wiring

• IER-2 call-extension speaker

• RY-ES external signaling relay

• Other system accessories
