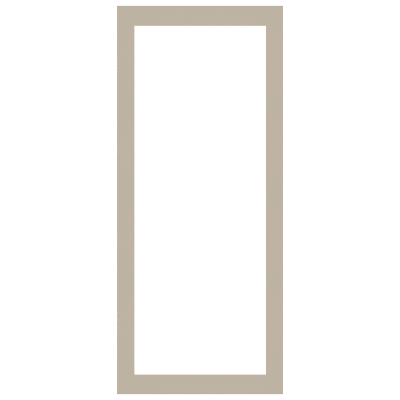

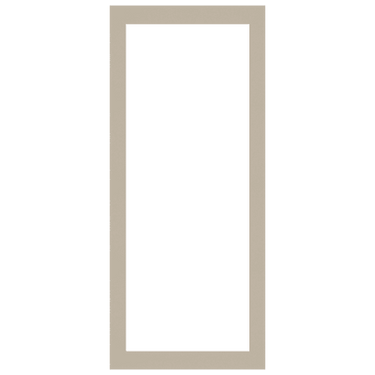

Build a customized Aiphone GT Series entrance station with the Aiphone GF-3F 3-Module Front Frame.

Designed for Aiphone's modular GT Series multi-tenant intercom system, the GF-3F provides space for three standard entrance-station modules in a vertical configuration.

The frame features durable zinc die-cast construction with a metallic painted finish and includes a stainless-steel mounting bracket for a rugged, vandal-resistant commercial entrance installation.

Key Features

• Genuine Aiphone GF-3F

• 3-module front frame

• Designed for Aiphone GT Series modular entrance stations

• Holds three standard GT/GF entrance modules

• Zinc die-cast front frame

• Metallic painted finish

• Stainless-steel mounting bracket

• Vandal-resistant construction

• Vertical modular configuration

• Designed for flush wall mounting

• Compatible with GF-3B flush back box

• Can be incorporated into custom audio, video, directory, keypad, and access-control entrance panels

• Ideal for apartment, condominium, and commercial multi-tenant systems

Product Specifications

Manufacturer: Aiphone
Model: GF-3F
Product Type: 3-Module Entrance Station Front Frame
Series: GT Series
Module Capacity: 3
Front Frame Material: Zinc Die Cast
Finish: Metallic Painted
Mounting Bracket: Stainless Steel
Mounting: Flush Wall Mount
Height: 12-5/8"
Width: 5-5/16"
Depth: 5/8"
Back Box: GF-3B
Construction: Vandal Resistant
Application: Modular Multi-Tenant Entrance Stations

Three-Module Configuration

The GF-3F provides three vertically stacked module positions.

This allows installers to build a customized entrance station using combinations such as:

• Video camera module

• Audio module

• Digital directory

• Direct-select call buttons

• Numeric keypad

• Access-control module

• Address panel

• Blank filler panel

The actual configuration depends on the requirements of the GT Series system.

Compatible GT Series Modules

Compatible entrance-station components include select:

• GT-VB – Camera Module

• GT-DB – Audio Module

• GT-DB-VN – Audio Module with NFC Reader

• GT-DBP – Audio Module Panel

• GT-NSB – Digital Display / Directory Module

• GT-10K – 10-Key Keypad

• GT-AD – Address Module

• GF-1P – 1-Call Button Panel

• GF-2P – 2-Call Button Panel

• GF-3P – 3-Call Button Panel

• GF-4P – 4-Call Button Panel

• GF-BP – Blank Filler Panel

Modules and electronic components are sold separately unless specifically stated.

GF-3B Flush Back Box

For standard flush installation, pair the GF-3F with the:

GF-3B – 3-Module Flush-Mount Back Box

The GF-3B installs into the wall and provides the recessed enclosure required for the GT Series modules and associated wiring.

The GF-3F then secures over the front of the assembly.

Surface-Mount Option

Where flush mounting is not practical, compatible three-module GT Series entrance assemblies can be surface mounted using the appropriate hooded surface enclosure such as:

GT-103HB – Hooded Surface-Mount Box for 3-Module Vertical Configuration

This is useful for:

• Concrete walls

• Block walls

• Retrofit installations

• Locations where wall recessing is impractical

• Exterior entrance applications requiring additional weather protection

Modular GT Series Design

The Aiphone GT Series allows entrance stations to be configured for the exact needs of the building.

A three-module GF-3F assembly can be configured for applications such as:

Video Entrance

• Camera module

• Audio module

• Call-button or directory module

Digital Directory Entrance

• Camera module

• Digital display

• Audio / keypad module

Access-Control Entrance

• Audio/video module

• Keypad

• Directory or access-control component

This modular architecture allows systems to be expanded or reconfigured as building requirements change.

Vandal-Resistant Construction

The GF-3F front frame is constructed from zinc die-cast material, while the internal mounting bracket is stainless steel.

This rugged construction makes it suitable for demanding entrance environments including:

• Apartment buildings

• Condominiums

• Multi-tenant commercial buildings

• Schools

• Healthcare facilities

• Mixed-use developments

• Controlled-access entrances

• High-traffic building entrances

Flush-Mount Installation

The GF-3F installs onto the supplied or compatible mounting bracket and is secured at the bottom with a tamper-resistant fastening method.

For a standard flush installation, use:

• GF-3F – Front Frame

• GF-3B – Back Box

• Compatible GT Series modules

Always follow the GT Series installation manual when assembling and wiring the entrance station.

Ideal Applications

• Apartment buildings

• Condominium complexes

• Multi-tenant residential properties

• Commercial office buildings

• Mixed-use developments

• Schools and universities

• Healthcare facilities

• Controlled-access entrances

• Video intercom systems

• Building directory systems

Important Ordering Information

This listing is for the GF-3F 3-module front frame only.

The following are sold separately unless specifically stated:

• GF-3B back box

• GT-103HB surface-mount box

• Camera module

• Audio module

• Call-button panels

• Digital directory

• Keypad

• Access-control modules

• Power supplies

• Tenant stations

• Intercom wiring

Verify the required module configuration before ordering.
