Build or repair a three-tenant direct-select entrance station with the Aiphone GF-3P 3-Call Button Panel.

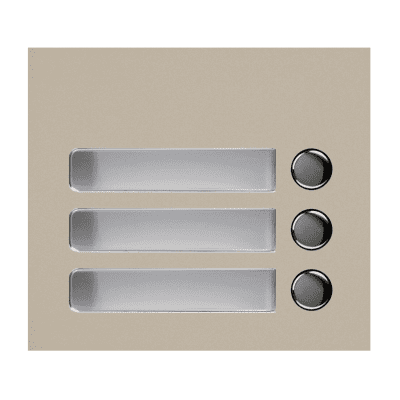

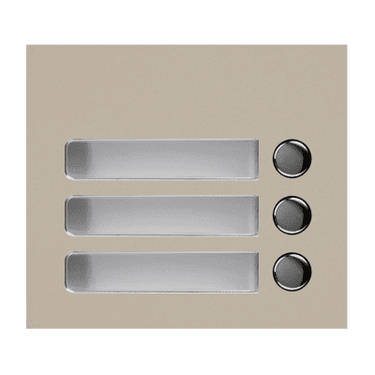

The GF-3P is the exterior 3-button cover panel designed for the Aiphone GT-SW 4-call switch module. It provides three exposed tenant call buttons with individual directory/name windows while covering and protecting the electronic switch module installed behind it.

Designed for modular Aiphone GT Series entrance stations, the GF-3P installs into compatible GF-2F, GF-3F, or GT-4F front frames.

Key Features

• Genuine Aiphone GF-3P

• 3-call button panel

• Designed for the GT-SW call-switch module

• Provides three direct-select tenant call positions

• Individual directory / name windows

• Zinc die-cast exterior construction

• Metallic beige finish

• Transparent polycarbonate name windows

• Chrome-plated zinc die-cast lower section

• Designed for modular GT Series entrance stations

• Fits GF-2F, GF-3F, and GT-4F front frames

• No electrical power required by the panel itself

• Ideal for apartments, offices, and three-tenant entrance configurations

Product Specifications

Manufacturer: Aiphone
Model: GF-3P
Series: GT Series
Product Type: 3-Call Button Cover Panel
Number of Call Buttons: 3
Required Switch Module: GT-SW
Panel Material: Zinc Die Cast
Window Material: Transparent Polycarbonate
Lower Section: Chrome-Plated Zinc Die Cast
Finish / Color: Metallic Beige
Mounting: GT Series Modular Front Frame
Height: 3-3/4"
Width: 4-5/16"
Depth: 5/8"
Approximate Weight: 0.42 lb / 190g
Compatible Frames: GF-2F, GF-3F, GT-4F
Electrical Requirements: None for Panel

Designed for the GT-SW

The GF-3P is designed specifically for use with the:

GT-SW – 4-Call Switch Module

The GT-SW contains the electronic call switches, while the GF-3P provides the finished exterior three-button interface.

Component Relationship

GT-SW = Internal electronic call-switch module

GF-3P = Exterior 3-call button panel

Both components are required for a functional three-button direct-select entrance section.

Three Direct-Select Call Buttons

The GF-3P exposes three individual call positions from the GT-SW.

Each button can be assigned to a separate:

• Apartment

• Condominium

• Office

• Suite

• Tenant

• Department

When a visitor presses one of the buttons, the GT Series system routes the call to the programmed tenant station assigned to that position.

Directory / Name Windows

Each of the three call positions includes a transparent name window for tenant identification.

These windows can display information such as:

• Resident name

• Apartment number

• Suite number

• Business name

• Department name

This allows visitors to quickly identify the correct call button.

GT-SW Supports Up to Four Calls

The GT-SW supports up to four call buttons, while the GF-3P exposes three of those positions.

Aiphone offers several compatible front panels:

• GF-1P – 1-Call Panel

• GF-2P – 2-Call Panel

• GF-3P – 3-Call Panel

• GF-4P – 4-Call Panel

This allows the same GT-SW electronic switch module to be used for several direct-select configurations.

Modular GT Series Entrance Design

The GF-3P is one component of Aiphone's customizable GT Series modular entrance-station platform.

A complete entrance can combine components such as:

• GT-DB or GT-DB-VN – Audio Module

• GT-DBP – Audio Module Panel

• GT-VB – Camera Module

• GT-VP – Camera Module Panel

• GT-SW – Call Switch Module

• GF-3P – 3-Call Button Panel

• Compatible frame

• Compatible back box or surface enclosure

The entrance can be configured as audio-only or audio/video depending on the application.

Audio Entrance Configuration

For a three-tenant audio entrance, a typical configuration can include:

• GT-DB – Audio Module

• GT-DBP – Audio Module Panel

• GT-SW – 4-Call Switch Module

• GF-3P – 3-Call Button Panel

This creates a direct-select entrance allowing visitors to independently call one of three tenants.

Video Entrance Configuration

For video visitor identification, add:

• GT-VB – Camera Module

• GT-VP – Camera Module Panel

The GT-SW and GF-3P continue to provide the three direct-select tenant call buttons while the GT-VB provides entrance video.

Compatible Front Frames

The GF-3P mounts in compatible GT Series modular frames.

GF-2F

2-Module Front Frame

Suitable for compact entrance arrangements.

GF-3F

3-Module Front Frame

Commonly used for configurations combining:

• Video

• Audio

• Call buttons

GT-4F

4-Module Front Frame

Provides additional module space for larger custom entrance assemblies.

Compatible Back Boxes

For flush-mount installations, select the back box matching the complete frame configuration.

Common options include:

• GF-2B – 2-Module Back Box

• GF-3B – 3-Module Back Box

• GT-4B – 4-Module Back Box

The back-box size is determined by the complete entrance assembly rather than by the GF-3P alone.

Surface-Mount Options

Compatible GT Series hooded surface enclosures are available when flush mounting is not practical.

Common options include:

• GT-102HB – 1×2 Module Surface Box

• GT-103HB – 1×3 Module Surface Box

• GT-104HB – 1×4 Module Surface Box

Choose the enclosure based on the total number and layout of modules.

Durable Exterior Construction

The GF-3P is designed for high-traffic entrance applications.

Construction includes:

• Zinc die-cast main panel

• Transparent polycarbonate directory windows

• Chrome-plated zinc die-cast lower section

• Metallic beige exterior finish

This provides a durable finished appearance for commercial and multi-tenant entrances.

No Power Required

The GF-3P is a mechanical exterior panel and does not require:

• Electrical power

• Programming

• System addressing

• Separate wiring

The GT-SW installed behind the panel performs the electrical call-switch functions.

Compatible Tenant Stations

Calls generated by the GT-SW/GF-3P assembly can be directed through the GT Series system to compatible tenant stations such as:

• GT-1A – Audio Open-Voice Tenant Station

• GT-1D – Audio Handset Tenant Station

• GT-1M3 – 3.5" Video Tenant Station

• GT-1C7 – 7" Video Tenant Station

• GT-1C7W – App-Compatible 7" Video Tenant Station

The tenant station required depends on the complete GT Series system design.

Ideal Applications

• Three-unit apartment buildings

• Condominium entrances

• Three-suite commercial properties

• Professional offices

• Mixed-use buildings

• Small multi-tenant facilities

• Student housing

• Controlled-access entrances

• GT Series entrance repairs

• Existing modular entrance upgrades

Important Ordering Information

This listing is for the GF-3P 3-call button panel only.

The GT-SW call-switch module is sold separately and is required for functional call buttons.

The following may also be required and are sold separately:

• GT-SW call-switch module

• GT-DB or GT-DB-VN audio module

• GT-DBP audio panel

• GT-VB camera module

• GT-VP camera panel

• Front frame

• Back box

• Surface-mount enclosure

• GT Series bus controllers

• System power supply

• Intercom wiring

• Tenant stations

Verify the complete entrance-station configuration before ordering.
