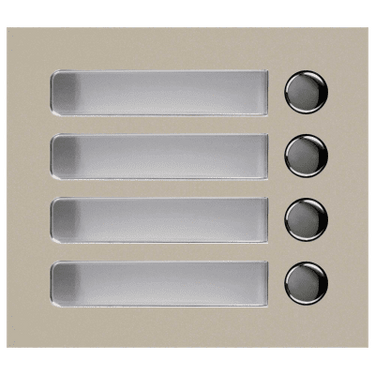

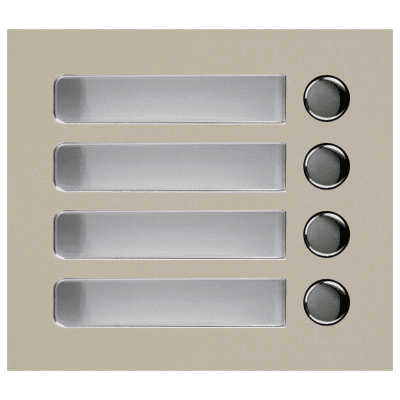

Configure a compatible Aiphone GT Series modular entrance station with the Aiphone GF-4P 4-Call Button Panel.

Designed specifically for use with the Aiphone GT-SW 4-Call Switch Module, the GF-4P provides four individual call-button positions with corresponding name-display windows for multi-tenant and multi-unit entrance systems.

Its durable zinc die-cast construction and metallic finish provide a professional appearance that matches other Aiphone GT Series modular entrance station components.

Key Features

• Genuine Aiphone GF-4P

• 4-call button cover panel

• Designed for the GT-SW Call Switch Module

• Four individual tenant call positions

• Integrated name-display windows

• Part of the Aiphone GT Series modular entrance system

• Zinc die-cast panel construction

• Transparent polycarbonate windows

• Chrome-plated zinc die-cast bottom section

• Metallic painted finish

• Compatible with 2-, 3-, and 4-module GT entrance frames

• Ideal for multi-tenant and commercial entrance systems

Product Specifications

Manufacturer: Aiphone
Model: GF-4P
Series: GT Series
Product Type: 4-Call Button Panel
Number of Call Positions: 4
Compatible Module: GT-SW
Panel Material: Zinc Die Cast
Window Material: Transparent Polycarbonate
Bottom Material: Chrome-Plated Zinc Die Cast
Finish: Metallic Painted
Height: 3-3/4"
Width: 4-5/16"
Depth: 5/8"
Approximate Weight: 0.45 lb
Application: Modular Multi-Tenant Entrance Station

Designed for the GT-SW Module

The GF-4P is a cover panel only and is designed to install over the:

Aiphone GT-SW – 4-Call Switch Module

The GT-SW provides the actual electronic call-switch functionality, while the GF-4P provides the finished exterior panel, call-button openings, and tenant name-display areas.

Four Individual Call Positions

The GF-4P provides four call-button locations, allowing a single GT-SW module to serve up to four individual tenant or destination selections.

Each call position includes space for a corresponding name card or directory label.

This makes it ideal for:

• Apartment buildings

• Condominiums

• Multi-tenant offices

• Commercial buildings

• Assisted-living facilities

• Campus buildings

• Controlled multi-unit entrances

GT Series Modular Design

Aiphone's GT Series allows entrance stations to be built from individual modules.

A typical modular entrance station can combine components such as:

• GT-DB – Audio Module

• GT-DBP – Audio Module Panel

• GT-VB – Camera Module

• GT-VP – Camera Module Panel

• GT-SW – 4-Call Switch Module

• GF-4P – 4-Call Button Panel

• GT-NSB – Digital Directory Module

• GT-10K – Keypad Module

This modular format allows the entrance station to be customized according to the number of tenants and required system functions.

Compatible Front Frames

The GF-4P can be installed within compatible modular entrance frames including:

• GF-2F – 2-Module Front Frame

• GF-3F – 3-Module Front Frame

• GT-4F – 4-Module Front Frame

The required frame and back box depend on the overall entrance-station configuration.

Important Ordering Information

The GF-4P is the cover panel only.

The following components are not included unless specifically stated:

• GT-SW call switch module

• Front frame

• Back box

• Audio module

• Video camera module

• Power supply

• Tenant stations

• Wiring

• Other GT Series modules

Verify the full GT Series entrance-station layout before ordering components.
