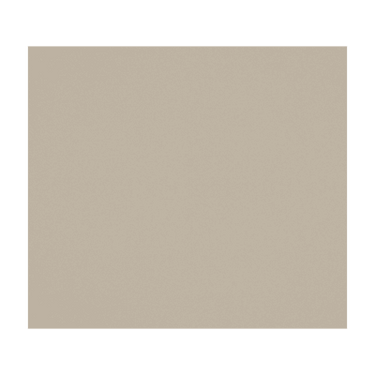

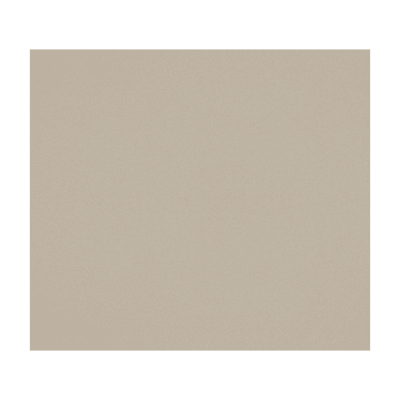

Complete unused module positions in an Aiphone GT Series entrance station with the Aiphone GF-BP Blank Panel.

The GF-BP is designed to fill an open module space in compatible GT Series modular entrance-station frames, providing a clean, finished appearance while maintaining the durable construction expected from commercial Aiphone entrance equipment.

Constructed from zinc die-cast material with a metallic painted finish, the GF-BP is vandal resistant and designed to match adjacent GT Series entrance-station components.

Key Features

• Genuine Aiphone GF-BP

• Blank filler panel for GT Series entrance stations

• Covers unused modular entrance-station positions

• Vandal-resistant construction

• Durable zinc die-cast material

• Metallic painted finish

• Matches compatible GT Series entrance components

• Installs in 2-, 3-, or 4-module front frames

• No electrical connections required

• Ideal for future system expansion

• Provides a clean, professional finished appearance

Product Specifications

Manufacturer: Aiphone
Model: GF-BP
Product Type: Blank / Filler Panel
Series: GT Series
Material: Zinc Die Cast
Finish: Metallic Painted
Color: Metallic Beige
Height: 3-3/4"
Width: 4-5/16"
Depth: 9/16"
Approximate Weight: 0.42 lb
Electrical Requirements: None
Application: GT Series Modular Entrance Stations

Compatible Front Frames

The GF-BP mounts in compatible Aiphone modular entrance-station frames including:

• GF-2F – 2-Module Front Frame

• GF-3F – 3-Module Front Frame

• GT-4F – 4-Module Front Frame

The panel occupies one standard module position.

Blank Module Application

The GF-BP is used when a modular GT Series entrance station has an unused opening.

Common applications include:

• Filling an unused module position

• Reserving space for future expansion

• Creating a symmetrical entrance-station layout

• Replacing a previously installed module

• Completing a custom entrance-panel configuration

GT Series Modular Entrance Stations

Aiphone GT Series custom entrance stations can combine multiple modules such as:

• GT-DB / GT-DB-VN – Audio Modules

• GT-VB – Video Camera Module

• GT-SW – Direct Select Call Module

• GT-NSB – Digital Display Module

• GT-10K – Keypad Module

• GT-AD – Address Module

• GT-AC – Access Control Keypad

• GT-HID – HID Card Reader Module

• GT-OP2 / GT-OP3 – Postal Lock Modules

When one of the available module positions is not required, the GF-BP provides a matching blank filler panel.

Vandal-Resistant Construction

The GF-BP is manufactured from durable zinc die-cast material, helping it withstand the demanding conditions commonly found at:

• Apartment entrances

• Condominium buildings

• Multi-tenant facilities

• Commercial properties

• Controlled-access entrances

• High-traffic building entrances

No Wiring Required

The GF-BP is a mechanical filler panel and contains no electronic components.

It requires:

• No power

• No communication wiring

• No programming

• No address configuration

Simply install it in the required open module position within the compatible entrance-station frame.

Ideal Applications

• Apartment buildings

• Condominium complexes

• Multi-tenant residential facilities

• Commercial buildings

• Mixed-use developments

• Secure entrance systems

• GT Series system expansions

• Entrance-station retrofits

Important Ordering Information

This listing is for the Aiphone GF-BP blank panel only.

The following are sold separately unless specifically stated:

• Front frame

• Back box

• Audio module

• Video module

• Call switch module

• Keypad

• Display module

• Access-control module

• Entrance-station electronics

Verify the number of open module positions in the entrance-station configuration before ordering.
